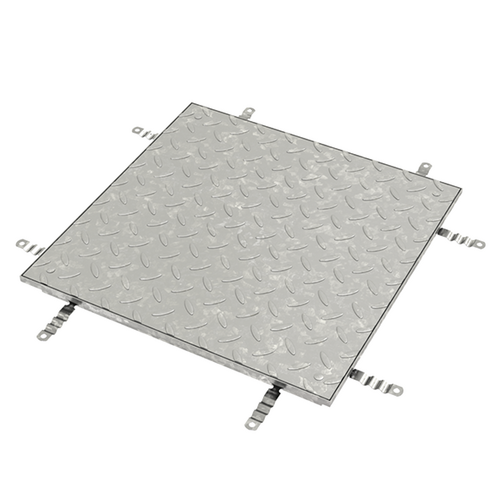

ACO Access Cover SOLID GS/SS

Product information

Load capacity up to load class B125 for all clear openings up to 1 m
Hot dip galvanized mild steel (≥ 60 µm of zinc) or pickle passivated stainless steel
Cover weight ca 30 kg (600×600, B125)
Frame height 59,5 mm
Highest grade of stainless steel (1.4571) available on request

Order information

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Class	Weight	Material	Item number	Downloads	Remember
[mm]	[mm]	[mm]	Class	[kg]	Material	Item number	Downloads	Remember
300 x 300	396 x 396	59.5	A 15	11.2	Galvanised steel	403868
450 x 450	546 x 546	59.5	A 15	18.7	Galvanised steel	403869
500 x 500	596 x 596	59.5	A 15	20.8	Galvanised steel	403870
600 x 400	496 x 696	59.5	A 15	20.6	Galvanised steel	403871
600 x 450	546 x 696	59.5	A 15	21.6	Galvanised steel	445701
600 x 600	696 x 696	59.5	A 15	26.9	Galvanised steel	403912
635 x 635	731 x 731	59.5	A 15	32	Galvanised steel	403872
750 x 600	696 x 846	59.5	A 15	34.8	Galvanised steel	445705
750 x 750	846 x 846	59.5	A 15	41.5	Galvanised steel	445709
800 x 600	696 x 896	59.5	A 15	36.1	Galvanised steel	403873
800 x 800	896 x 896	59.5	A 15	44.3	Galvanised steel	403913
900 x 600	696 x 996	59.5	A 15	38.7	Galvanised steel	445713
900 x 900	996 x 996	59.5	A 15	56.2	Galvanised steel	445717
1000 x 600	696 x 1096	59.5	A 15	42.8	Galvanised steel	403874
1000 x 800	896 x 1096	59.5	A 15	52.8	Galvanised steel	403875
1000 x 1000	1096 x 1096	59.5	A 15	62.4	Galvanised steel	403914
300 x 300	396 x 396	59.5	B 125	14.9	Galvanised steel	403898
450 x 450	546 x 546	59.5	B 125	25.5	Galvanised steel	403899
500 x 500	596 x 596	59.5	B 125	28.5	Galvanised steel	403900
600 x 400	496 x 696	59.5	B 125	28.2	Galvanised steel	403901
600 x 450	546 x 696	59.5	B 125	29.6	Galvanised steel	445703
600 x 600	696 x 696	59.5	B 125	35.5	Galvanised steel	403902
635 x 635	731 x 731	59.5	B 125	45.6	Galvanised steel	403903
750 x 600	696 x 846	59.5	B 125	48.4	Galvanised steel	445707
750 x 750	846 x 846	59.5	B 125	60.5	Galvanised steel	445711
800 x 600	696 x 896	59.5	B 125	50.2	Galvanised steel	403904
800 x 800	896 x 896	59.5	B 125	64.5	Galvanised steel	403905
900 x 600	696 x 996	59.5	B 125	53.8	Galvanised steel	445715
900 x 900	996 x 996	59.5	B 125	76.1	Galvanised steel	445719
1000 x 600	696 x 1096	59.5	B 125	57.9	Galvanised steel	403906
1000 x 800	896 x 1096	59.5	B 125	73.7	Galvanised steel	403907
300 x 300	396 x 396	59.5	A 15	11.2	AISI 304	403860
450 x 450	546 x 546	59.5	A 15	18.7	AISI 304	403861
500 x 500	596 x 596	59.5	A 15	20.8	AISI 304	403862
600 x 400	496 x 696	59.5	A 15	20.6	AISI 304	403863
600 x 450	546 x 696	59.5	A 15	21.6	AISI 304	445702
600 x 600	696 x 696	59.5	A 15	26.9	AISI 304	403909
635 x 635	731 x 731	59.5	A 15	32	AISI 304	403864
750 x 600	696 x 846	59.5	A 15	34.8	AISI 304	445706
750 x 750	846 x 846	59.5	A 15	41.5	AISI 304	445710
800 x 600	696 x 896	59.5	A 15	36.1	AISI 304	403865
800 x 800	896 x 896	59.5	A 15	44.3	AISI 304	403910
900 x 600	696 x 996	59.5	A 15	38.7	AISI 304	445714
900 x 900	996 x 996	59.5	A 15	56.2	AISI 304	445718
1000 x 600	696 x 1096	59.5	A 15	42.8	AISI 304	403866
1000 x 800	896 x 1096	59.5	A 15	52.8	AISI 304	403867
1000 x 1000	1096 x 1096	59.5	A 15	62.4	AISI 304	403911
300 x 300	396 x 396	59.5	B 125	14.9	AISI 304	403887
450 x 450	546 x 546	59.5	B 125	25.5	AISI 304	403888
500 x 500	596 x 596	59.5	B 125	28.5	AISI 304	403889
600 x 400	496 x 696	59.5	B 125	28.2	AISI 304	403890
600 x 450	546 x 696	59.5	B 125	29.6	AISI 304	445704
600 x 600	696 x 696	59.5	B 125	35.5	AISI 304	403891
635 x 635	731 x 731	59.5	B 125	45.6	AISI 304	403892
750 x 600	696 x 846	59.5	B 125	48.4	AISI 304	445708
750 x 750	846 x 846	59.5	B 125	60.5	AISI 304	445712
800 x 600	696 x 896	59.5	B 125	50.2	AISI 304	403893
800 x 800	896 x 896	59.5	B 125	64.5	AISI 304	403894
1000 x 600	696 x 1096	59.5	B 125	57.9	AISI 304	403895
900 x 600	696 x 996	59.5	B 125	53.8	AISI 304	445716
1000 x 800	896 x 1096	59.5	B 125	73.7	AISI 304	403896
900 x 900	996 x 996	59.5	B 125	76.1	AISI 304	445720
1000 x 1000	1096 x 1096	59.5	B 125	84.6	AISI 304	403897

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Class	Weight	Material	Item number
300 x 300 mm	396 x 396 mm	59.5 mm	A 15	11.2 kg	Galvanised steel	403868
450 x 450 mm	546 x 546 mm	59.5 mm	A 15	18.7 kg	Galvanised steel	403869
500 x 500 mm	596 x 596 mm	59.5 mm	A 15	20.8 kg	Galvanised steel	403870
600 x 400 mm	496 x 696 mm	59.5 mm	A 15	20.6 kg	Galvanised steel	403871
600 x 450 mm	546 x 696 mm	59.5 mm	A 15	21.6 kg	Galvanised steel	445701
600 x 600 mm	696 x 696 mm	59.5 mm	A 15	26.9 kg	Galvanised steel	403912
635 x 635 mm	731 x 731 mm	59.5 mm	A 15	32 kg	Galvanised steel	403872
750 x 600 mm	696 x 846 mm	59.5 mm	A 15	34.8 kg	Galvanised steel	445705
750 x 750 mm	846 x 846 mm	59.5 mm	A 15	41.5 kg	Galvanised steel	445709
800 x 600 mm	696 x 896 mm	59.5 mm	A 15	36.1 kg	Galvanised steel	403873
800 x 800 mm	896 x 896 mm	59.5 mm	A 15	44.3 kg	Galvanised steel	403913
900 x 600 mm	696 x 996 mm	59.5 mm	A 15	38.7 kg	Galvanised steel	445713
900 x 900 mm	996 x 996 mm	59.5 mm	A 15	56.2 kg	Galvanised steel	445717
1000 x 600 mm	696 x 1096 mm	59.5 mm	A 15	42.8 kg	Galvanised steel	403874
1000 x 800 mm	896 x 1096 mm	59.5 mm	A 15	52.8 kg	Galvanised steel	403875
1000 x 1000 mm	1096 x 1096 mm	59.5 mm	A 15	62.4 kg	Galvanised steel	403914
300 x 300 mm	396 x 396 mm	59.5 mm	B 125	14.9 kg	Galvanised steel	403898
450 x 450 mm	546 x 546 mm	59.5 mm	B 125	25.5 kg	Galvanised steel	403899
500 x 500 mm	596 x 596 mm	59.5 mm	B 125	28.5 kg	Galvanised steel	403900
600 x 400 mm	496 x 696 mm	59.5 mm	B 125	28.2 kg	Galvanised steel	403901
600 x 450 mm	546 x 696 mm	59.5 mm	B 125	29.6 kg	Galvanised steel	445703
600 x 600 mm	696 x 696 mm	59.5 mm	B 125	35.5 kg	Galvanised steel	403902
635 x 635 mm	731 x 731 mm	59.5 mm	B 125	45.6 kg	Galvanised steel	403903
750 x 600 mm	696 x 846 mm	59.5 mm	B 125	48.4 kg	Galvanised steel	445707
750 x 750 mm	846 x 846 mm	59.5 mm	B 125	60.5 kg	Galvanised steel	445711
800 x 600 mm	696 x 896 mm	59.5 mm	B 125	50.2 kg	Galvanised steel	403904
800 x 800 mm	896 x 896 mm	59.5 mm	B 125	64.5 kg	Galvanised steel	403905
900 x 600 mm	696 x 996 mm	59.5 mm	B 125	53.8 kg	Galvanised steel	445715
900 x 900 mm	996 x 996 mm	59.5 mm	B 125	76.1 kg	Galvanised steel	445719
1000 x 600 mm	696 x 1096 mm	59.5 mm	B 125	57.9 kg	Galvanised steel	403906
1000 x 800 mm	896 x 1096 mm	59.5 mm	B 125	73.7 kg	Galvanised steel	403907
300 x 300 mm	396 x 396 mm	59.5 mm	A 15	11.2 kg	AISI 304	403860
450 x 450 mm	546 x 546 mm	59.5 mm	A 15	18.7 kg	AISI 304	403861
500 x 500 mm	596 x 596 mm	59.5 mm	A 15	20.8 kg	AISI 304	403862
600 x 400 mm	496 x 696 mm	59.5 mm	A 15	20.6 kg	AISI 304	403863
600 x 450 mm	546 x 696 mm	59.5 mm	A 15	21.6 kg	AISI 304	445702
600 x 600 mm	696 x 696 mm	59.5 mm	A 15	26.9 kg	AISI 304	403909
635 x 635 mm	731 x 731 mm	59.5 mm	A 15	32 kg	AISI 304	403864
750 x 600 mm	696 x 846 mm	59.5 mm	A 15	34.8 kg	AISI 304	445706
750 x 750 mm	846 x 846 mm	59.5 mm	A 15	41.5 kg	AISI 304	445710
800 x 600 mm	696 x 896 mm	59.5 mm	A 15	36.1 kg	AISI 304	403865
800 x 800 mm	896 x 896 mm	59.5 mm	A 15	44.3 kg	AISI 304	403910
900 x 600 mm	696 x 996 mm	59.5 mm	A 15	38.7 kg	AISI 304	445714
900 x 900 mm	996 x 996 mm	59.5 mm	A 15	56.2 kg	AISI 304	445718
1000 x 600 mm	696 x 1096 mm	59.5 mm	A 15	42.8 kg	AISI 304	403866
1000 x 800 mm	896 x 1096 mm	59.5 mm	A 15	52.8 kg	AISI 304	403867
1000 x 1000 mm	1096 x 1096 mm	59.5 mm	A 15	62.4 kg	AISI 304	403911
300 x 300 mm	396 x 396 mm	59.5 mm	B 125	14.9 kg	AISI 304	403887
450 x 450 mm	546 x 546 mm	59.5 mm	B 125	25.5 kg	AISI 304	403888
500 x 500 mm	596 x 596 mm	59.5 mm	B 125	28.5 kg	AISI 304	403889
600 x 400 mm	496 x 696 mm	59.5 mm	B 125	28.2 kg	AISI 304	403890
600 x 450 mm	546 x 696 mm	59.5 mm	B 125	29.6 kg	AISI 304	445704
600 x 600 mm	696 x 696 mm	59.5 mm	B 125	35.5 kg	AISI 304	403891
635 x 635 mm	731 x 731 mm	59.5 mm	B 125	45.6 kg	AISI 304	403892
750 x 600 mm	696 x 846 mm	59.5 mm	B 125	48.4 kg	AISI 304	445708
750 x 750 mm	846 x 846 mm	59.5 mm	B 125	60.5 kg	AISI 304	445712
800 x 600 mm	696 x 896 mm	59.5 mm	B 125	50.2 kg	AISI 304	403893
800 x 800 mm	896 x 896 mm	59.5 mm	B 125	64.5 kg	AISI 304	403894
1000 x 600 mm	696 x 1096 mm	59.5 mm	B 125	57.9 kg	AISI 304	403895
900 x 600 mm	696 x 996 mm	59.5 mm	B 125	53.8 kg	AISI 304	445716
1000 x 800 mm	896 x 1096 mm	59.5 mm	B 125	73.7 kg	AISI 304	403896
900 x 900 mm	996 x 996 mm	59.5 mm	B 125	76.1 kg	AISI 304	445720
1000 x 1000 mm	1096 x 1096 mm	59.5 mm	B 125	84.6 kg	AISI 304	403897
