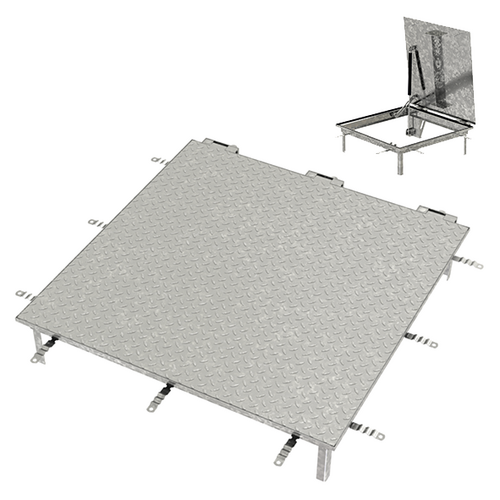

ACO Access Cover SOLID ASSIST GS/SS

Product information

  • Option with opening assistance
  • One man operation, hinges
  • Ready to use - gas springs already installed
  • Locked by two bolts
  • Highest grade of stainless steel (1.4571) available on request
Clear area (A x B)Frame dimension (C x D)Frame height (E)ClassWeightMaterialItem

number
Remember
[mm][mm][mm][kg]
450 x 450580 x 54659.5A 1523.2Galvanised steel445721
500 x 500630 x 59659.5A 1525.5Galvanised steel415205
600 x 450580 x 69659.5A 1526.7Galvanised steel445725
600 x 600730 x 69659.5A 1531.7Galvanised steel415206
700 x 700830 x 79659.5A 1544.5Galvanised steel415207
750 x 600730 x 84659.5A 1539.8Galvanised steel445730
750 x 750880 x 84659.5A 1546.5Galvanised steel445734
800 x 800930 x 89659.5A 1549.4Galvanised steel415208
900 x 600730 x 99659.5A 1546.5Galvanised steel445738
900 x 9001030 x 99659.5A 1556.1Galvanised steel415209
1000 x 600730 x 109659.5A 1549.4Galvanised steel445742
1000 x 10001130 x 109659.5A 1569Galvanised steel415210
450 x 450580 x 54659.5B 12529.8Galvanised steel445723
500 x 500630 x 59659.5B 12532.8Galvanised steel415211
600 x 450580 x 69659.5B 12534.3Galvanised steel445727
600 x 600730 x 69659.5B 12539.6Galvanised steel415212
700 x 700830 x 79659.5B 12553.4Galvanised steel415213
750 x 600730 x 84659.5B 12553.1Galvanised steel445732
750 x 750880 x 84659.5B 12564.4Galvanised steel445736
800 x 800930 x 89659.5B 12568.5Galvanised steel415214
900 x 600730 x 99659.5B 12564.4Galvanised steel445740
900 x 9001030 x 99659.5B 12576.6Galvanised steel415215
1000 x 600730 x 109659.5B 12568.5Galvanised steel445744
1000 x 10001130 x 109659.5B 12590.6Galvanised steel415216
450 x 450580 x 54659.5A 1523.2AISI 304445722
500 x 500630 x 59659.5A 1525.5AISI 304415217
600 x 450580 x 69659.5A 1526.7AISI 304445726
600 x 600730 x 69659.5A 1531.7AISI 304415218
700 x 700830 x 79659.5A 1544.5AISI 304415219
750 x 600730 x 84659.5A 1539.8AISI 304445729
750 x 750880 x 84659.5A 1546.5AISI 304445733
800 x 800930 x 89659.5A 1549.4AISI 304415220
900 x 600730 x 99659.5A 1546.5AISI 304445737
900 x 9001030 x 99659.5A 1556.1AISI 304415221
1000 x 600730 x 109659.5A 1549.4AISI 304445741
1000 x 10001130 x 109659.5A 1569AISI 304415222
450 x 450580 x 54659.5B 12529.8AISI 304445724
500 x 500630 x 59659.5B 12532.8AISI 304415223
600 x 450580 x 69659.5B 12534.3AISI 304445728
600 x 600730 x 69659.5B 12539.6AISI 304415224
700 x 700830 x 79659.5B 12553.4AISI 304415225
750 x 600730 x 84659.5B 12553.1AISI 304445731
750 x 750880 x 84659.5B 12564.4AISI 304445735
800 x 800930 x 89659.5B 12568.5AISI 304415226
900 x 600730 x 99659.5B 12564.4AISI 304445739
900 x 9001030 x 99659.5B 12576.6AISI 304415227
1000 x 600730 x 109659.5B 12568.5AISI 304445743
1000 x 10001130 x 109659.5B 12590.6AISI 304415228
Clear area (A x B)Frame dimension (C x D)Frame height (E)ClassWeightMaterialItem

number
450 x 450 mm580 x 546 mm59.5 mmA 1523.2 kgGalvanised steel445721
500 x 500 mm630 x 596 mm59.5 mmA 1525.5 kgGalvanised steel415205
600 x 450 mm580 x 696 mm59.5 mmA 1526.7 kgGalvanised steel445725
600 x 600 mm730 x 696 mm59.5 mmA 1531.7 kgGalvanised steel415206
700 x 700 mm830 x 796 mm59.5 mmA 1544.5 kgGalvanised steel415207
750 x 600 mm730 x 846 mm59.5 mmA 1539.8 kgGalvanised steel445730
750 x 750 mm880 x 846 mm59.5 mmA 1546.5 kgGalvanised steel445734
800 x 800 mm930 x 896 mm59.5 mmA 1549.4 kgGalvanised steel415208
900 x 600 mm730 x 996 mm59.5 mmA 1546.5 kgGalvanised steel445738
900 x 900 mm1030 x 996 mm59.5 mmA 1556.1 kgGalvanised steel415209
1000 x 600 mm730 x 1096 mm59.5 mmA 1549.4 kgGalvanised steel445742
1000 x 1000 mm1130 x 1096 mm59.5 mmA 1569 kgGalvanised steel415210
450 x 450 mm580 x 546 mm59.5 mmB 12529.8 kgGalvanised steel445723
500 x 500 mm630 x 596 mm59.5 mmB 12532.8 kgGalvanised steel415211
600 x 450 mm580 x 696 mm59.5 mmB 12534.3 kgGalvanised steel445727
600 x 600 mm730 x 696 mm59.5 mmB 12539.6 kgGalvanised steel415212
700 x 700 mm830 x 796 mm59.5 mmB 12553.4 kgGalvanised steel415213
750 x 600 mm730 x 846 mm59.5 mmB 12553.1 kgGalvanised steel445732
750 x 750 mm880 x 846 mm59.5 mmB 12564.4 kgGalvanised steel445736
800 x 800 mm930 x 896 mm59.5 mmB 12568.5 kgGalvanised steel415214
900 x 600 mm730 x 996 mm59.5 mmB 12564.4 kgGalvanised steel445740
900 x 900 mm1030 x 996 mm59.5 mmB 12576.6 kgGalvanised steel415215
1000 x 600 mm730 x 1096 mm59.5 mmB 12568.5 kgGalvanised steel445744
1000 x 1000 mm1130 x 1096 mm59.5 mmB 12590.6 kgGalvanised steel415216
450 x 450 mm580 x 546 mm59.5 mmA 1523.2 kgAISI 304445722
500 x 500 mm630 x 596 mm59.5 mmA 1525.5 kgAISI 304415217
600 x 450 mm580 x 696 mm59.5 mmA 1526.7 kgAISI 304445726
600 x 600 mm730 x 696 mm59.5 mmA 1531.7 kgAISI 304415218
700 x 700 mm830 x 796 mm59.5 mmA 1544.5 kgAISI 304415219
750 x 600 mm730 x 846 mm59.5 mmA 1539.8 kgAISI 304445729
750 x 750 mm880 x 846 mm59.5 mmA 1546.5 kgAISI 304445733
800 x 800 mm930 x 896 mm59.5 mmA 1549.4 kgAISI 304415220
900 x 600 mm730 x 996 mm59.5 mmA 1546.5 kgAISI 304445737
900 x 900 mm1030 x 996 mm59.5 mmA 1556.1 kgAISI 304415221
1000 x 600 mm730 x 1096 mm59.5 mmA 1549.4 kgAISI 304445741
1000 x 1000 mm1130 x 1096 mm59.5 mmA 1569 kgAISI 304415222
450 x 450 mm580 x 546 mm59.5 mmB 12529.8 kgAISI 304445724
500 x 500 mm630 x 596 mm59.5 mmB 12532.8 kgAISI 304415223
600 x 450 mm580 x 696 mm59.5 mmB 12534.3 kgAISI 304445728
600 x 600 mm730 x 696 mm59.5 mmB 12539.6 kgAISI 304415224
700 x 700 mm830 x 796 mm59.5 mmB 12553.4 kgAISI 304415225
750 x 600 mm730 x 846 mm59.5 mmB 12553.1 kgAISI 304445731
750 x 750 mm880 x 846 mm59.5 mmB 12564.4 kgAISI 304445735
800 x 800 mm930 x 896 mm59.5 mmB 12568.5 kgAISI 304415226
900 x 600 mm730 x 996 mm59.5 mmB 12564.4 kgAISI 304445739
900 x 900 mm1030 x 996 mm59.5 mmB 12576.6 kgAISI 304415227
1000 x 600 mm730 x 1096 mm59.5 mmB 12568.5 kgAISI 304445743
1000 x 1000 mm1130 x 1096 mm59.5 mmB 12590.6 kgAISI 304415228
