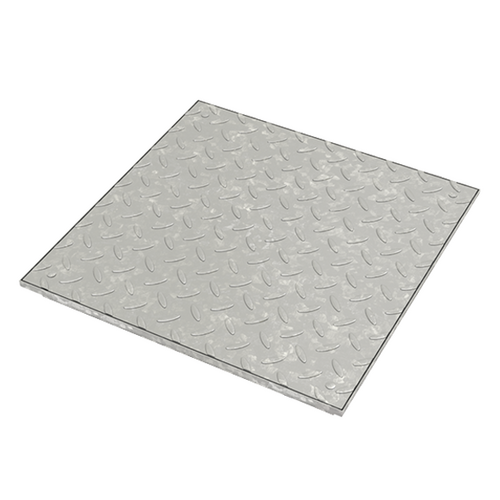

ACO Access Cover SOLID AL

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Class	Weight	Material	Item number	Downloads	Remember
[mm]	[mm]	[mm]	Class	[kg]	Material	Item number	Downloads	Remember
200 x 201	278 x 278	37.5	K 3	2.8	Aluminium	415200
300 x 300	378 x 378	37.5	K 3	4	Aluminium	415201
400 x 400	478 x 478	37.5	K 3	5.5	Aluminium	415202
500 x 500	578 x 578	37.5	K 3	7.6	Aluminium	415203
600 x 600	678 x 678	37.5	K 3	9.8	Aluminium	415204
200 x 200	278 x 278	37.5	A 15	3	Aluminium	408981
300 x 300	378 x 378	37.5	A 15	4.4	Aluminium	408982
400 x 400	478 x 478	37.5	A 15	6.2	Aluminium	408983
450 x 450	528 x 528	37.5	A 15	7	Aluminium	408984
500 x 500	578 x 578	37.5	A 15	8.4	Aluminium	408985
600 x 400	478 x 678	37.5	A 15	8.2	Aluminium	408986
600 x 450	528 x 678	37.5	A 15	8.6	Aluminium	445746
600 x 600	678 x 678	37.5	A 15	11	Aluminium	408987
700 x 700	778 x 778	37.5	A 15	13.6	Aluminium	408988
750 x 600	678 x 828	37.5	A 15	13.2	Aluminium	445747
750 x 750	828 x 828	37.5	A 15	15.9	Aluminium	445748
800 x 600	678 x 878	37.5	A 15	13.7	Aluminium	408989
800 x 800	878 x 878	37.5	A 15	17	Aluminium	408990
900 x 600	678 x 978	37.5	A 15	14.7	Aluminium	445749
900 x 900	978 x 978	37.5	A 15	20.2	Aluminium	408991
1000 x 600	678 x 1078	37.5	A 15	15.9	Aluminium	408992
1000 x 800	878 x 1078	37.5	A 15	19.8	Aluminium	408993
1000 x 1000	1078 x 1078	37.5	A 15	24.6	Aluminium	408994

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Class	Weight	Material	Item number
200 x 201 mm	278 x 278 mm	37.5 mm	K 3	2.8 kg	Aluminium	415200
300 x 300 mm	378 x 378 mm	37.5 mm	K 3	4 kg	Aluminium	415201
400 x 400 mm	478 x 478 mm	37.5 mm	K 3	5.5 kg	Aluminium	415202
500 x 500 mm	578 x 578 mm	37.5 mm	K 3	7.6 kg	Aluminium	415203
600 x 600 mm	678 x 678 mm	37.5 mm	K 3	9.8 kg	Aluminium	415204
200 x 200 mm	278 x 278 mm	37.5 mm	A 15	3 kg	Aluminium	408981
300 x 300 mm	378 x 378 mm	37.5 mm	A 15	4.4 kg	Aluminium	408982
400 x 400 mm	478 x 478 mm	37.5 mm	A 15	6.2 kg	Aluminium	408983
450 x 450 mm	528 x 528 mm	37.5 mm	A 15	7 kg	Aluminium	408984
500 x 500 mm	578 x 578 mm	37.5 mm	A 15	8.4 kg	Aluminium	408985
600 x 400 mm	478 x 678 mm	37.5 mm	A 15	8.2 kg	Aluminium	408986
600 x 450 mm	528 x 678 mm	37.5 mm	A 15	8.6 kg	Aluminium	445746
600 x 600 mm	678 x 678 mm	37.5 mm	A 15	11 kg	Aluminium	408987
700 x 700 mm	778 x 778 mm	37.5 mm	A 15	13.6 kg	Aluminium	408988
750 x 600 mm	678 x 828 mm	37.5 mm	A 15	13.2 kg	Aluminium	445747
750 x 750 mm	828 x 828 mm	37.5 mm	A 15	15.9 kg	Aluminium	445748
800 x 600 mm	678 x 878 mm	37.5 mm	A 15	13.7 kg	Aluminium	408989
800 x 800 mm	878 x 878 mm	37.5 mm	A 15	17 kg	Aluminium	408990
900 x 600 mm	678 x 978 mm	37.5 mm	A 15	14.7 kg	Aluminium	445749
900 x 900 mm	978 x 978 mm	37.5 mm	A 15	20.2 kg	Aluminium	408991
1000 x 600 mm	678 x 1078 mm	37.5 mm	A 15	15.9 kg	Aluminium	408992
1000 x 800 mm	878 x 1078 mm	37.5 mm	A 15	19.8 kg	Aluminium	408993
1000 x 1000 mm	1078 x 1078 mm	37.5 mm	A 15	24.6 kg	Aluminium	408994
