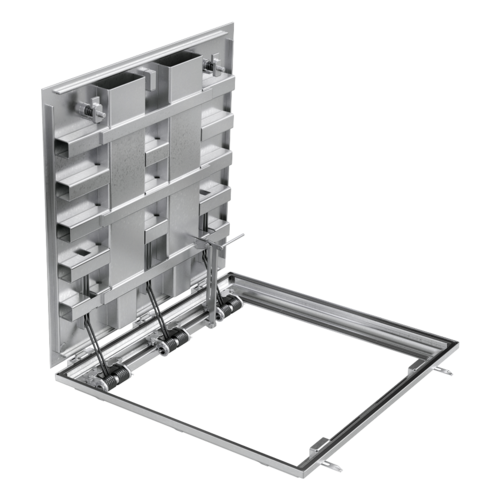

ACO Access Cover SERVOKAT SMART

Product information

Shaft cover according to DIN EN 124
Optionally with quick release for emergency exits for opening and closing from above and for quick opening without tools from below
Including operating key

Order information

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Class	Weight	Material	Item number	Downloads	Remember
[mm]	[mm]	[mm]	Class	[kg]	Material	Item number	Downloads	Remember
1000 x 1000	1241 x 1206	80	A 15	141	1.4301	448305
			B 125	166	1.4301	450169
			D 400	206	1.4301	448137
900 x 900	1141 x 1106	80	D 400	180	1.4301	448139
800 x 800	1041 x 1006	80	A 15	106	1.4301	448309
			B 125	120	1.4301	450165
			D 400	147	1.4301	448141
700 x 700	941 x 906	80	D 400	124	1.4301	448143
600 x 600	841 x 806	80	D 400	99	1.4301	448145
600 x 800	841 x 1006	80	D 400	122	1.4301	448147
600 x 900	841 x 1106	80	D 400	135	1.4301	448149
800 x 1000	1041 x 1206	80	D 400	173	1.4301	448151
1000 x 1500	1241 x 1706	80	D 400	280	1.4301	448153
900 x 1200	1141 x 1406	80	D 400	220	1.4301	448155
1000 x 1200	1241 x 1406	80	D 400	234	1.4301	449663
1000 x 1000	1241 x 1206	80	A 15	141	Galvanised steel	448306
			B 125	166	Galvanised steel	450170
			D 400	206	Galvanised steel	448138
900 x 900	1141 x 1106	80	D 400	180	Galvanised steel	448140
800 x 800	1041 x 1006	80	A 15	106	Galvanised steel	448310
			B 125	120	Galvanised steel	450166
			D 400	147	Galvanised steel	448142
700 x 700	941 x 906	80	D 400	124	Galvanised steel	448144
600 x 600	841 x 806	80	D 400	99	Galvanised steel	448146
600 x 800	841 x 1006	80	D 400	122	Galvanised steel	448148
600 x 900	841 x 1106	80	D 400	135	Galvanised steel	448150
800 x 1000	1041 x 1206	80	D 400	173	Galvanised steel	448152
1000 x 1500	1241 x 1706	80	D 400	280	Galvanised steel	448154
900 x 1200	1141 x 1406	80	D 400	220	Galvanised steel	448156
1000 x 1200	1241 x 1406	80	D 400	234	Galvanised steel	449664

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Class	Weight	Material	Item number
1000 x 1000 mm	1241 x 1206 mm	80 mm	A 15	141 kg	1.4301	448305
1000 x 1000 mm	1241 x 1206 mm	80 mm	B 125	166 kg	1.4301	450169
1000 x 1000 mm	1241 x 1206 mm	80 mm	D 400	206 kg	1.4301	448137
900 x 900 mm	1141 x 1106 mm	80 mm	D 400	180 kg	1.4301	448139
800 x 800 mm	1041 x 1006 mm	80 mm	A 15	106 kg	1.4301	448309
800 x 800 mm	1041 x 1006 mm	80 mm	B 125	120 kg	1.4301	450165
800 x 800 mm	1041 x 1006 mm	80 mm	D 400	147 kg	1.4301	448141
700 x 700 mm	941 x 906 mm	80 mm	D 400	124 kg	1.4301	448143
600 x 600 mm	841 x 806 mm	80 mm	D 400	99 kg	1.4301	448145
600 x 800 mm	841 x 1006 mm	80 mm	D 400	122 kg	1.4301	448147
600 x 900 mm	841 x 1106 mm	80 mm	D 400	135 kg	1.4301	448149
800 x 1000 mm	1041 x 1206 mm	80 mm	D 400	173 kg	1.4301	448151
1000 x 1500 mm	1241 x 1706 mm	80 mm	D 400	280 kg	1.4301	448153
900 x 1200 mm	1141 x 1406 mm	80 mm	D 400	220 kg	1.4301	448155
1000 x 1200 mm	1241 x 1406 mm	80 mm	D 400	234 kg	1.4301	449663
1000 x 1000 mm	1241 x 1206 mm	80 mm	A 15	141 kg	Galvanised steel	448306
1000 x 1000 mm	1241 x 1206 mm	80 mm	B 125	166 kg	Galvanised steel	450170
1000 x 1000 mm	1241 x 1206 mm	80 mm	D 400	206 kg	Galvanised steel	448138
900 x 900 mm	1141 x 1106 mm	80 mm	D 400	180 kg	Galvanised steel	448140
800 x 800 mm	1041 x 1006 mm	80 mm	A 15	106 kg	Galvanised steel	448310
800 x 800 mm	1041 x 1006 mm	80 mm	B 125	120 kg	Galvanised steel	450166
800 x 800 mm	1041 x 1006 mm	80 mm	D 400	147 kg	Galvanised steel	448142
700 x 700 mm	941 x 906 mm	80 mm	D 400	124 kg	Galvanised steel	448144
600 x 600 mm	841 x 806 mm	80 mm	D 400	99 kg	Galvanised steel	448146
600 x 800 mm	841 x 1006 mm	80 mm	D 400	122 kg	Galvanised steel	448148
600 x 900 mm	841 x 1106 mm	80 mm	D 400	135 kg	Galvanised steel	448150
800 x 1000 mm	1041 x 1206 mm	80 mm	D 400	173 kg	Galvanised steel	448152
1000 x 1500 mm	1241 x 1706 mm	80 mm	D 400	280 kg	Galvanised steel	448154
900 x 1200 mm	1141 x 1406 mm	80 mm	D 400	220 kg	Galvanised steel	448156
1000 x 1200 mm	1241 x 1406 mm	80 mm	D 400	234 kg	Galvanised steel	449664
