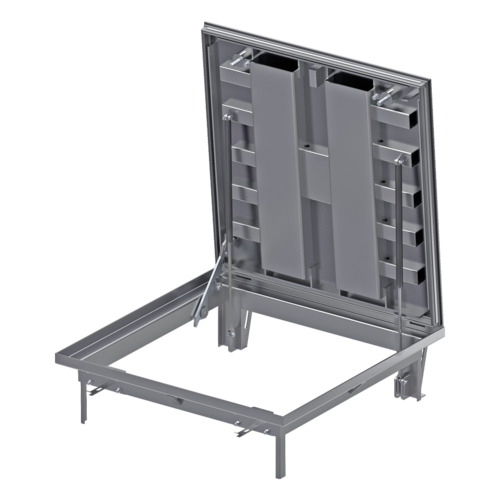

ACO Access Cover SERVOKAT GD with emergency exit

Product information

  • Shaft cover according to DIN EN 124
  • Optionally with quick release for emergency exits for opening and closing from above and for quick opening without tools from below
  • Including operating key
Clear area (A x B)Frame dimension (C x D)Frame height (E)ClassWeightMaterialItem

number
Remember
[mm][mm][mm][kg]
600 x 600744 x 744170B 125120Galvanised steel58606
800 x 600944 x 744170B 125150Galvanised steel60162
700 x 700844 x 844170B 125140Galvanised steel59232
1400 x 7001544 x 844170B 125240Galvanised steel60163
800 x 800944 x 944170B 125180Galvanised steel58607
1000 x 8001144 x 944170B 125200Galvanised steel60164
1000 x 10001144 x 1144170B 125230Galvanised steel59924
1500 x 10001644 x 1144170B 125310Galvanised steel60165
2000 x 10002144 x 1144170B 125400Galvanised steel60166
1200 x 12001344 x 1344170B 125310Galvanised steel60167
1500 x 15001644 x 1644170B 125410Galvanised steel60168
600 x 600744 x 889335B 125120AISI 30459301
800 x 600944 x 889335B 125150AISI 30460395
700 x 700844 x 989335B 125140AISI 30459302
1400 x 7001544 x 989335B 125225AISI 30460396
800 x 800944 x 1089335B 125170AISI 30459303
1000 x 8001144 x 1089335B 125195AISI 30460397
1000 x 10001144 x 1289335B 125225AISI 30459304
1500 x 10001644 x 1289335B 125295AISI 30458608
2000 x 10002144 x 1289335B 125390AISI 30460398
1200 x 12001344 x 1489335B 125280AISI 30460399
1500 x 15001644 x 1789335B 125380AISI 30460400
600 x 600744 x 889335D 400Galvanised steel60936
800 x 600944 x 889335D 400Galvanised steel60937
700 x 700844 x 989335D 400Galvanised steel60938
1400 x 7001544 x 989335D 400Galvanised steel60939
800 x 800944 x 1089335D 400Galvanised steel58904
1000 x 8001144 x 1089335D 400Galvanised steel59554
1000 x 10001144 x 1289335D 400Galvanised steel58711
1500 x 10001644 x 1289335D 400Galvanised steel59305
2000 x 10002144 x 1289335D 400Galvanised steel60940
1200 x 12001344 x 1489335D 400Galvanised steel60941
1500 x 15001644 x 1789335D 400Galvanised steel60942
600 x 600744 x 889335D 400120AISI 30460457
800 x 600944 x 889335D 400145AISI 30460458
700 x 700844 x 989335D 400150AISI 30460460
1400 x 7001544 x 989335D 400220AISI 30460461
800 x 800944 x 1089335D 400170AISI 30458713
1000 x 8001144 x 1089335D 400170AISI 30460462
1000 x 10001144 x 1289335D 400225AISI 30459939
1500 x 10001644 x 1289335D 400320AISI 30460464
2000 x 10002144 x 1289335D 400420AISI 30460465
1200 x 12001344 x 1489335D 400305AISI 30460466
1500 x 15001644 x 1789335D 400420AISI 30459520
Clear area (A x B)Frame dimension (C x D)Frame height (E)ClassWeightMaterialItem

number
600 x 600 mm744 x 744 mm170 mmB 125120 kgGalvanised steel58606
800 x 600 mm944 x 744 mm170 mmB 125150 kgGalvanised steel60162
700 x 700 mm844 x 844 mm170 mmB 125140 kgGalvanised steel59232
1400 x 700 mm1544 x 844 mm170 mmB 125240 kgGalvanised steel60163
800 x 800 mm944 x 944 mm170 mmB 125180 kgGalvanised steel58607
1000 x 800 mm1144 x 944 mm170 mmB 125200 kgGalvanised steel60164
1000 x 1000 mm1144 x 1144 mm170 mmB 125230 kgGalvanised steel59924
1500 x 1000 mm1644 x 1144 mm170 mmB 125310 kgGalvanised steel60165
2000 x 1000 mm2144 x 1144 mm170 mmB 125400 kgGalvanised steel60166
1200 x 1200 mm1344 x 1344 mm170 mmB 125310 kgGalvanised steel60167
1500 x 1500 mm1644 x 1644 mm170 mmB 125410 kgGalvanised steel60168
600 x 600 mm744 x 889 mm335 mmB 125120 kgAISI 30459301
800 x 600 mm944 x 889 mm335 mmB 125150 kgAISI 30460395
700 x 700 mm844 x 989 mm335 mmB 125140 kgAISI 30459302
1400 x 700 mm1544 x 989 mm335 mmB 125225 kgAISI 30460396
800 x 800 mm944 x 1089 mm335 mmB 125170 kgAISI 30459303
1000 x 800 mm1144 x 1089 mm335 mmB 125195 kgAISI 30460397
1000 x 1000 mm1144 x 1289 mm335 mmB 125225 kgAISI 30459304
1500 x 1000 mm1644 x 1289 mm335 mmB 125295 kgAISI 30458608
2000 x 1000 mm2144 x 1289 mm335 mmB 125390 kgAISI 30460398
1200 x 1200 mm1344 x 1489 mm335 mmB 125280 kgAISI 30460399
1500 x 1500 mm1644 x 1789 mm335 mmB 125380 kgAISI 30460400
600 x 600 mm744 x 889 mm335 mmD 400Galvanised steel60936
800 x 600 mm944 x 889 mm335 mmD 400Galvanised steel60937
700 x 700 mm844 x 989 mm335 mmD 400Galvanised steel60938
1400 x 700 mm1544 x 989 mm335 mmD 400Galvanised steel60939
800 x 800 mm944 x 1089 mm335 mmD 400Galvanised steel58904
1000 x 800 mm1144 x 1089 mm335 mmD 400Galvanised steel59554
1000 x 1000 mm1144 x 1289 mm335 mmD 400Galvanised steel58711
1500 x 1000 mm1644 x 1289 mm335 mmD 400Galvanised steel59305
2000 x 1000 mm2144 x 1289 mm335 mmD 400Galvanised steel60940
1200 x 1200 mm1344 x 1489 mm335 mmD 400Galvanised steel60941
1500 x 1500 mm1644 x 1789 mm335 mmD 400Galvanised steel60942
600 x 600 mm744 x 889 mm335 mmD 400120 kgAISI 30460457
800 x 600 mm944 x 889 mm335 mmD 400145 kgAISI 30460458
700 x 700 mm844 x 989 mm335 mmD 400150 kgAISI 30460460
1400 x 700 mm1544 x 989 mm335 mmD 400220 kgAISI 30460461
800 x 800 mm944 x 1089 mm335 mmD 400170 kgAISI 30458713
1000 x 800 mm1144 x 1089 mm335 mmD 400170 kgAISI 30460462
1000 x 1000 mm1144 x 1289 mm335 mmD 400225 kgAISI 30459939
1500 x 1000 mm1644 x 1289 mm335 mmD 400320 kgAISI 30460464
2000 x 1000 mm2144 x 1289 mm335 mmD 400420 kgAISI 30460465
1200 x 1200 mm1344 x 1489 mm335 mmD 400305 kgAISI 30460466
1500 x 1500 mm1644 x 1789 mm335 mmD 400420 kgAISI 30459520
