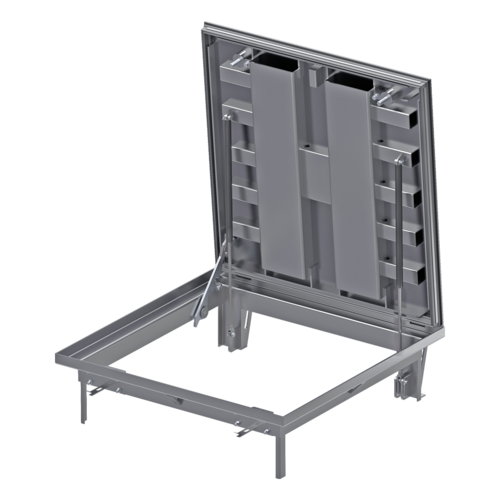

ACO Access Cover SERVOKAT GD standard

Product information

  • Shaft cover according to DIN EN 124
  • Optionally with quick release for emergency exits for opening and closing from above and for quick opening without tools from below
  • Including operating key
Clear area (A x B)Frame dimension (C x D)Frame height (E)ClassWeightMaterialItem

number
Remember
[mm][mm][mm][kg]
600 x 600744 x 744170B 125120Galvanised steel58447
800 x 600944 x 744170B 125150Galvanised steel59923
700 x 700844 x 844170B 125140Galvanised steel59231
1400 x 7001544 x 844170B 125240Galvanised steel59400
800 x 800944 x 944170B 125180Galvanised steel58448
1000 x 8001144 x 944170B 125200Galvanised steel59570
1000 x 10001144 x 1144170B 125230Galvanised steel58449
1500 x 10001644 x 1144170B 125310Galvanised steel60161
2000 x 10002144 x 1144170B 125400Galvanised steel58751
1200 x 12001344 x 1344170B 125310Galvanised steel58450
1500 x 15001644 x 1644170B 125410Galvanised steel685254
600 x 600744 x 889335B 125120AISI 30459298
800 x 600944 x 889335B 125150AISI 30459925
700 x 700844 x 989335B 125140AISI 30459299
1400 x 7001544 x 989335B 125225AISI 30460393
800 x 800944 x 1089335B 125170AISI 30458451
1000 x 8001144 x 1089335B 125195AISI 30460394
1000 x 10001144 x 1289335B 125225AISI 30458452
1500 x 10001644 x 1289335B 125295AISI 30460169
2000 x 10002144 x 1289335B 125390AISI 30459550
1200 x 12001344 x 1489335B 125280AISI 30459300
1500 x 15001644 x 1789335B 125380AISI 30459551
600 x 600744 x 889335D 400125Galvanised steel59934
800 x 600944 x 889335D 400150Galvanised steel59935
700 x 700844 x 989335D 400150Galvanised steel59936
1400 x 7001544 x 989335D 400240Galvanised steel60546
800 x 800944 x 1089335D 400175Galvanised steel58453
1000 x 8001144 x 1089335D 400200Galvanised steel59937
1000 x 10001144 x 1289335D 400225Galvanised steel58454
1500 x 10001644 x 1289335D 400295Galvanised steel58455
2000 x 10002144 x 1289335D 400405Galvanised steel58905
1200 x 12001344 x 1489335D 400300Galvanised steel59493
1500 x 15001644 x 1789335D 400455Galvanised steel58712
600 x 600744 x 889335D 400120AISI 30459938
800 x 600944 x 889335D 400145AISI 30460456
700 x 700844 x 989335D 400150AISI 30459870
1400 x 7001544 x 989335D 400220AISI 30460459
800 x 800944 x 1089335D 400170AISI 30458611
1000 x 8001144 x 1089335D 400170AISI 30458612
1000 x 10001144 x 1289335D 400225AISI 30458456
1500 x 10001644 x 1289335D 400320AISI 30460463
2000 x 10002144 x 1289335D 400420AISI 30459155
1200 x 12001344 x 1489335D 400305AISI 30459940
1500 x 15001644 x 1789335D 400420AISI 30459519
Clear area (A x B)Frame dimension (C x D)Frame height (E)ClassWeightMaterialItem

number
600 x 600 mm744 x 744 mm170 mmB 125120 kgGalvanised steel58447
800 x 600 mm944 x 744 mm170 mmB 125150 kgGalvanised steel59923
700 x 700 mm844 x 844 mm170 mmB 125140 kgGalvanised steel59231
1400 x 700 mm1544 x 844 mm170 mmB 125240 kgGalvanised steel59400
800 x 800 mm944 x 944 mm170 mmB 125180 kgGalvanised steel58448
1000 x 800 mm1144 x 944 mm170 mmB 125200 kgGalvanised steel59570
1000 x 1000 mm1144 x 1144 mm170 mmB 125230 kgGalvanised steel58449
1500 x 1000 mm1644 x 1144 mm170 mmB 125310 kgGalvanised steel60161
2000 x 1000 mm2144 x 1144 mm170 mmB 125400 kgGalvanised steel58751
1200 x 1200 mm1344 x 1344 mm170 mmB 125310 kgGalvanised steel58450
1500 x 1500 mm1644 x 1644 mm170 mmB 125410 kgGalvanised steel685254
600 x 600 mm744 x 889 mm335 mmB 125120 kgAISI 30459298
800 x 600 mm944 x 889 mm335 mmB 125150 kgAISI 30459925
700 x 700 mm844 x 989 mm335 mmB 125140 kgAISI 30459299
1400 x 700 mm1544 x 989 mm335 mmB 125225 kgAISI 30460393
800 x 800 mm944 x 1089 mm335 mmB 125170 kgAISI 30458451
1000 x 800 mm1144 x 1089 mm335 mmB 125195 kgAISI 30460394
1000 x 1000 mm1144 x 1289 mm335 mmB 125225 kgAISI 30458452
1500 x 1000 mm1644 x 1289 mm335 mmB 125295 kgAISI 30460169
2000 x 1000 mm2144 x 1289 mm335 mmB 125390 kgAISI 30459550
1200 x 1200 mm1344 x 1489 mm335 mmB 125280 kgAISI 30459300
1500 x 1500 mm1644 x 1789 mm335 mmB 125380 kgAISI 30459551
600 x 600 mm744 x 889 mm335 mmD 400125 kgGalvanised steel59934
800 x 600 mm944 x 889 mm335 mmD 400150 kgGalvanised steel59935
700 x 700 mm844 x 989 mm335 mmD 400150 kgGalvanised steel59936
1400 x 700 mm1544 x 989 mm335 mmD 400240 kgGalvanised steel60546
800 x 800 mm944 x 1089 mm335 mmD 400175 kgGalvanised steel58453
1000 x 800 mm1144 x 1089 mm335 mmD 400200 kgGalvanised steel59937
1000 x 1000 mm1144 x 1289 mm335 mmD 400225 kgGalvanised steel58454
1500 x 1000 mm1644 x 1289 mm335 mmD 400295 kgGalvanised steel58455
2000 x 1000 mm2144 x 1289 mm335 mmD 400405 kgGalvanised steel58905
1200 x 1200 mm1344 x 1489 mm335 mmD 400300 kgGalvanised steel59493
1500 x 1500 mm1644 x 1789 mm335 mmD 400455 kgGalvanised steel58712
600 x 600 mm744 x 889 mm335 mmD 400120 kgAISI 30459938
800 x 600 mm944 x 889 mm335 mmD 400145 kgAISI 30460456
700 x 700 mm844 x 989 mm335 mmD 400150 kgAISI 30459870
1400 x 700 mm1544 x 989 mm335 mmD 400220 kgAISI 30460459
800 x 800 mm944 x 1089 mm335 mmD 400170 kgAISI 30458611
1000 x 800 mm1144 x 1089 mm335 mmD 400170 kgAISI 30458612
1000 x 1000 mm1144 x 1289 mm335 mmD 400225 kgAISI 30458456
1500 x 1000 mm1644 x 1289 mm335 mmD 400320 kgAISI 30460463
2000 x 1000 mm2144 x 1289 mm335 mmD 400420 kgAISI 30459155
1200 x 1200 mm1344 x 1489 mm335 mmD 400305 kgAISI 30459940
1500 x 1500 mm1644 x 1789 mm335 mmD 400420 kgAISI 30459519
