ACO Access Cover Servokat Fr 693428

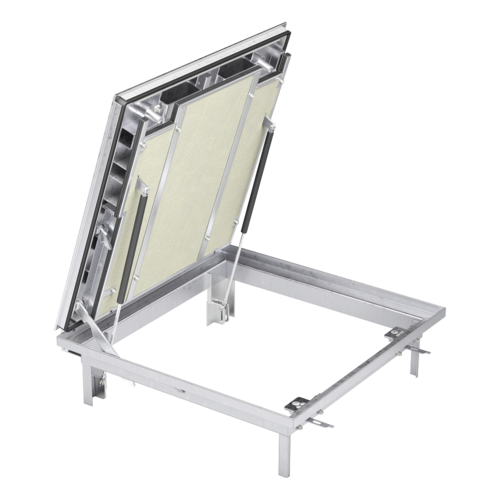

ACO Access Cover SERVOKAT FR

Product benefits

  • Fire resistance E120, EI1 60, EI2 60 (tested according to EN 1634-1 + A1, EN 1363-1, ČSN 73 0810) assured with a fire resistance equipment
  • Type tested and certified according to EN124:2015
  • Meets declared load class B125 and D400
  • Hot dip galvanized mild steel
  • Opening and closing from above as well as for quick opening from underneath as emergency exit solution without using a tool
Contact
Downloads

Product information

  • Shaft cover according to DIN EN 124
  • Optionally with quick release for emergency exits for opening and closing from above and for quick opening without tools from below
  • Including operating key
Clear area (A x B)Frame dimension (C x D)ClassWeightMaterialItem

number		Remember
[kg]
600 mm x 800 cm744 mm x 944 cmB 125132.2Galvanised steel448168
138.3Galvanised steel448171
800 mm x 800 cm944 mm x 944 cmB 125160.6Galvanised steel448158
166.7Galvanised steel448162
800 mm x 1000 cm944 mm x 1144 cmB 125181.9Galvanised steel448167
188Galvanised steel448173
1000 mm x 1000 cm1144 mm x 1144 cmB 125217.2Galvanised steel448159
223.3Galvanised steel448169
600 mm x 800 cm744 mm x 944 cmD 400141.8Galvanised steel448190
147.9Galvanised steel448195
800 mm x 800 cm944 mm x 944 cmD 400170Galvanised steel448179
178.2Galvanised steel448184
800 mm x 1000 cm944 mm x 1144 cmD 400196.7Galvanised steel448192
202.8Galvanised steel448188
1000 mm x 1000 cm1144 mm x 1144 cmD 400235.9Galvanised steel448180
242Galvanised steel448182
Clear area (A x B)Frame dimension (C x D)ClassWeightMaterialItem

number
600 mm x 800 cm744 mm x 944 cmB 125132.2 kgGalvanised steel448168
600 mm x 800 cm744 mm x 944 cmB 125138.3 kgGalvanised steel448171
800 mm x 800 cm944 mm x 944 cmB 125160.6 kgGalvanised steel448158
800 mm x 800 cm944 mm x 944 cmB 125166.7 kgGalvanised steel448162
800 mm x 1000 cm944 mm x 1144 cmB 125181.9 kgGalvanised steel448167
800 mm x 1000 cm944 mm x 1144 cmB 125188 kgGalvanised steel448173
1000 mm x 1000 cm1144 mm x 1144 cmB 125217.2 kgGalvanised steel448159
1000 mm x 1000 cm1144 mm x 1144 cmB 125223.3 kgGalvanised steel448169
600 mm x 800 cm744 mm x 944 cmD 400141.8 kgGalvanised steel448190
600 mm x 800 cm744 mm x 944 cmD 400147.9 kgGalvanised steel448195
800 mm x 800 cm944 mm x 944 cmD 400170 kgGalvanised steel448179
800 mm x 800 cm944 mm x 944 cmD 400178.2 kgGalvanised steel448184
800 mm x 1000 cm944 mm x 1144 cmD 400196.7 kgGalvanised steel448192
800 mm x 1000 cm944 mm x 1144 cmD 400202.8 kgGalvanised steel448188
1000 mm x 1000 cm1144 mm x 1144 cmD 400235.9 kgGalvanised steel448180
1000 mm x 1000 cm1144 mm x 1144 cmD 400242 kgGalvanised steel448182
