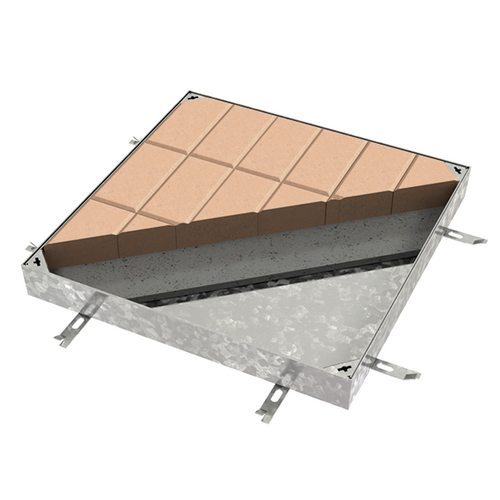

ACO Access Cover PAVING GS 80

Product information

Type tested and certified according to EN 124
Sealed for water and odourtightness
Corrosion resistant – hot dip galvanized mild steel
Secure and time saving installation
No risk – load capacity always guaranteedn
80/120 tray depth available
Secured in the frame by its own weight - child safety
Stainless steel version availble on request (1.4301 or 1.4571)

Order information

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Class	Weight	Material	Item number	Downloads	Remember
[mm]	Frame dimension (C x D)	[mm]	[mm]	Class	[kg]	Material	Item number	Downloads	Remember
300 x 300	436 x 436 mm	104	80	A 15	16.4	Galvanised steel	407102
400 x 400	536 x 536 mm	104	80	A 15	21.6	Galvanised steel	407103
600 x 400	536 x 736 mm	104	80	A 15	26.9	Galvanised steel	409858
500 x 500	636 x 636 mm	104	80	A 15	27.4	Galvanised steel	407104
600 x 600	736 x 736 mm	104	80	A 15	33.4	Galvanised steel	407105
1000 x 600	736 x 1136 mm	104	80	A 15	47.8	Galvanised steel	409859
700 x 700	836 x 836 mm	104	80	A 15	42.2	Galvanised steel	409984
800 x 800	936 x 936 mm	104	80	A 15	49.4	Galvanised steel	409985
900 x 900	1036 x 1036 mm	104	80	A 15	57.3	Galvanised steel	409986
1000 x 1000	1136 x 1136 mm	104	80	A 15	65.6	Galvanised steel	409987
300 x 300	436 x 436 mm	104	80	B 125	22	Galvanised steel	406569
400 x 400	536 x 536 mm	104	80	B 125	30.9	Galvanised steel	406570
600 x 400	536 x 736 mm	104	80	B 125	37.9	Galvanised steel	409860
500 x 500	636 x 636 mm	104	80	B 125	38.2	Galvanised steel	406571
600 x 600	736 x 736 mm	104	80	B 125	45.9	Galvanised steel	406572
1000 x 600	736 x 1136 mm	104	80	B 125	73.8	Galvanised steel	409861
700 x 700	836 x 836 mm	104	80	B 125	65.6	Galvanised steel	406573
800 x 800	936 x 936 mm	104	80	B 125	75.2	Galvanised steel	406574
900 x 900	1036 x 1036 mm	104	80	B 125	85.3	Galvanised steel	406575
1000 x 1000	1136 x 1136 mm	104	80	B 125	96.2	Galvanised steel	406576
300 x 300	436 x 436 mm	104	80	C 250	28.1	Galvanised steel	406577
400 x 400	536 x 536 mm	104	80	C 250	45.7	Galvanised steel	406578
600 x 400	536 x 736 mm	104	80	C 250	57.6	Galvanised steel	409862
500 x 500	636 x 636 mm	104	80	C 250	60.2	Galvanised steel	406579
600 x 600	736 x 736 mm	104	80	C 250	71.3	Galvanised steel	406580
1000 x 600	736 x 1136 mm	104	80	C 250	105.1	Galvanised steel	409863
700 x 700	836 x 836 mm	104	80	C 250	93.5	Galvanised steel	406581
800 x 800	936 x 936 mm	104	80	C 250	106.8	Galvanised steel	406582
900 x 900	1036 x 1036 mm	104	80	C 250	121	Galvanised steel	406583
1000 x 1000	1136 x 1136 mm	104	80	C 250	135.9	Galvanised steel	406584
400 x 400	536 mm x 536 cm	104	80	D 400	44.3	Galvanised steel	445638
500 x 500	636 mm x 636 cm	104	80	D 400	61.8	Galvanised steel	445639
600 x 600	736 mm x 736 cm	104	80	D 400	81.8	Galvanised steel	445640
700 x 700	836 mm x 836 cm	104	80	D 400	101.5	Galvanised steel	445641
800 x 800	936 mm x 936 cm	104	80	D 400	135.3	Galvanised steel	445642
900 x 900	1036 mm x 1036 cm	104	80	D 400	157.9	Galvanised steel	445643
1000 x 1000	1136 mm x 1136 cm	104	80	D 400	185	Galvanised steel	445644

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Class	Weight	Material	Item number
300 x 300 mm	436 x 436 mm	104 mm	80 mm	A 15	16.4 kg	Galvanised steel	407102
400 x 400 mm	536 x 536 mm	104 mm	80 mm	A 15	21.6 kg	Galvanised steel	407103
600 x 400 mm	536 x 736 mm	104 mm	80 mm	A 15	26.9 kg	Galvanised steel	409858
500 x 500 mm	636 x 636 mm	104 mm	80 mm	A 15	27.4 kg	Galvanised steel	407104
600 x 600 mm	736 x 736 mm	104 mm	80 mm	A 15	33.4 kg	Galvanised steel	407105
1000 x 600 mm	736 x 1136 mm	104 mm	80 mm	A 15	47.8 kg	Galvanised steel	409859
700 x 700 mm	836 x 836 mm	104 mm	80 mm	A 15	42.2 kg	Galvanised steel	409984
800 x 800 mm	936 x 936 mm	104 mm	80 mm	A 15	49.4 kg	Galvanised steel	409985
900 x 900 mm	1036 x 1036 mm	104 mm	80 mm	A 15	57.3 kg	Galvanised steel	409986
1000 x 1000 mm	1136 x 1136 mm	104 mm	80 mm	A 15	65.6 kg	Galvanised steel	409987
300 x 300 mm	436 x 436 mm	104 mm	80 mm	B 125	22 kg	Galvanised steel	406569
400 x 400 mm	536 x 536 mm	104 mm	80 mm	B 125	30.9 kg	Galvanised steel	406570
600 x 400 mm	536 x 736 mm	104 mm	80 mm	B 125	37.9 kg	Galvanised steel	409860
500 x 500 mm	636 x 636 mm	104 mm	80 mm	B 125	38.2 kg	Galvanised steel	406571
600 x 600 mm	736 x 736 mm	104 mm	80 mm	B 125	45.9 kg	Galvanised steel	406572
1000 x 600 mm	736 x 1136 mm	104 mm	80 mm	B 125	73.8 kg	Galvanised steel	409861
700 x 700 mm	836 x 836 mm	104 mm	80 mm	B 125	65.6 kg	Galvanised steel	406573
800 x 800 mm	936 x 936 mm	104 mm	80 mm	B 125	75.2 kg	Galvanised steel	406574
900 x 900 mm	1036 x 1036 mm	104 mm	80 mm	B 125	85.3 kg	Galvanised steel	406575
1000 x 1000 mm	1136 x 1136 mm	104 mm	80 mm	B 125	96.2 kg	Galvanised steel	406576
300 x 300 mm	436 x 436 mm	104 mm	80 mm	C 250	28.1 kg	Galvanised steel	406577
400 x 400 mm	536 x 536 mm	104 mm	80 mm	C 250	45.7 kg	Galvanised steel	406578
600 x 400 mm	536 x 736 mm	104 mm	80 mm	C 250	57.6 kg	Galvanised steel	409862
500 x 500 mm	636 x 636 mm	104 mm	80 mm	C 250	60.2 kg	Galvanised steel	406579
600 x 600 mm	736 x 736 mm	104 mm	80 mm	C 250	71.3 kg	Galvanised steel	406580
1000 x 600 mm	736 x 1136 mm	104 mm	80 mm	C 250	105.1 kg	Galvanised steel	409863
700 x 700 mm	836 x 836 mm	104 mm	80 mm	C 250	93.5 kg	Galvanised steel	406581
800 x 800 mm	936 x 936 mm	104 mm	80 mm	C 250	106.8 kg	Galvanised steel	406582
900 x 900 mm	1036 x 1036 mm	104 mm	80 mm	C 250	121 kg	Galvanised steel	406583
1000 x 1000 mm	1136 x 1136 mm	104 mm	80 mm	C 250	135.9 kg	Galvanised steel	406584
400 x 400 mm	536 mm x 536 cm	104 mm	80 mm	D 400	44.3 kg	Galvanised steel	445638
500 x 500 mm	636 mm x 636 cm	104 mm	80 mm	D 400	61.8 kg	Galvanised steel	445639
600 x 600 mm	736 mm x 736 cm	104 mm	80 mm	D 400	81.8 kg	Galvanised steel	445640
700 x 700 mm	836 mm x 836 cm	104 mm	80 mm	D 400	101.5 kg	Galvanised steel	445641
800 x 800 mm	936 mm x 936 cm	104 mm	80 mm	D 400	135.3 kg	Galvanised steel	445642
900 x 900 mm	1036 mm x 1036 cm	104 mm	80 mm	D 400	157.9 kg	Galvanised steel	445643
1000 x 1000 mm	1136 mm x 1136 cm	104 mm	80 mm	D 400	185 kg	Galvanised steel	445644
