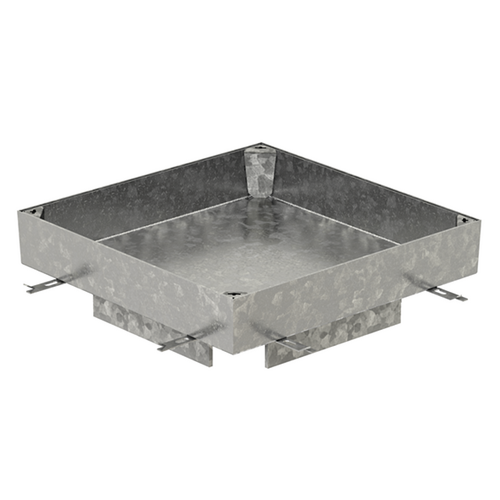

ACO Access Cover PAVING GS 120

Product information

  • Type tested and certified according to EN 124
  • Sealed for water and odourtightness
  • Corrosion resistant – hot dip galvanized mild steel
  • Secure and time saving installation
  • No risk – load capacity always guaranteedn
  • 80/120 tray depth available
  • Secured in the frame by its own weight - child safety
  • Stainless steel version availble on request (1.4301 or 1.4571)
Clear area (A x B)Frame dimension (C x D)Frame height (E)Cover depthClassWeightMaterialItem

number
Remember
[mm][mm][mm][mm][kg]
300 x 300439 x 439144120B 12526Galvanised steel414487
400 x 400539 x 539144120B 12535.7Galvanised steel414488
600 x 400539 x 739144120B 12543.6Galvanised steel414538
500 x 500639 x 639144120B 12544Galvanised steel414489
600 x 600739 x 739144120B 12552.4Galvanised steel414490
1000 x 600739 x 1139144120B 12582Galvanised steel414539
700 x 700839 x 839144120B 12573Galvanised steel414491
800 x 800939 x 939144120B 12583.5Galvanised steel414492
900 x 9001039 x 1039144120B 12594.2Galvanised steel414493
1000 x 10001139 x 1139144120B 125105.9Galvanised steel414494
300 x 300439 x 439144120C 25032.5Galvanised steel414495
400 x 400539 x 539144120C 25051.1Galvanised steel414496
600 x 400539 x 739144120C 25064.1Galvanised steel414540
500 x 500639 x 639144120C 25066.5Galvanised steel414497
600 x 600739 x 739144120C 25078.6Galvanised steel414498
1000 x 600739 x 1139144120C 250114.5Galvanised steel414541
700 x 700839 x 839144120C 250101.9Galvanised steel414499
800 x 800939 x 939144120C 250116.3Galvanised steel414500
900 x 9001039 x 1039144120C 250131Galvanised steel414501
1000 x 10001139 x 1139144120C 250147Galvanised steel414502
400 x 400539 x 539144120D 40050.4Galvanised steel445645
500 x 500639 x 639144120D 40069.1Galvanised steel445646
600 x 600739 x 739144120D 40090.2Galvanised steel445647
700 x 700839 x 839144120D 400111Galvanised steel445648
800 x 800939 x 939144120D 400146Galvanised steel445649
900 x 9001039 x 1039144120D 400169.4Galvanised steel445650
1000 x 10001139 x 1139144120D 400197.6Galvanised steel445651
Clear area (A x B)Frame dimension (C x D)Frame height (E)Cover depthClassWeightMaterialItem

number
300 x 300 mm439 x 439 mm144 mm120 mmB 12526 kgGalvanised steel414487
400 x 400 mm539 x 539 mm144 mm120 mmB 12535.7 kgGalvanised steel414488
600 x 400 mm539 x 739 mm144 mm120 mmB 12543.6 kgGalvanised steel414538
500 x 500 mm639 x 639 mm144 mm120 mmB 12544 kgGalvanised steel414489
600 x 600 mm739 x 739 mm144 mm120 mmB 12552.4 kgGalvanised steel414490
1000 x 600 mm739 x 1139 mm144 mm120 mmB 12582 kgGalvanised steel414539
700 x 700 mm839 x 839 mm144 mm120 mmB 12573 kgGalvanised steel414491
800 x 800 mm939 x 939 mm144 mm120 mmB 12583.5 kgGalvanised steel414492
900 x 900 mm1039 x 1039 mm144 mm120 mmB 12594.2 kgGalvanised steel414493
1000 x 1000 mm1139 x 1139 mm144 mm120 mmB 125105.9 kgGalvanised steel414494
300 x 300 mm439 x 439 mm144 mm120 mmC 25032.5 kgGalvanised steel414495
400 x 400 mm539 x 539 mm144 mm120 mmC 25051.1 kgGalvanised steel414496
600 x 400 mm539 x 739 mm144 mm120 mmC 25064.1 kgGalvanised steel414540
500 x 500 mm639 x 639 mm144 mm120 mmC 25066.5 kgGalvanised steel414497
600 x 600 mm739 x 739 mm144 mm120 mmC 25078.6 kgGalvanised steel414498
1000 x 600 mm739 x 1139 mm144 mm120 mmC 250114.5 kgGalvanised steel414541
700 x 700 mm839 x 839 mm144 mm120 mmC 250101.9 kgGalvanised steel414499
800 x 800 mm939 x 939 mm144 mm120 mmC 250116.3 kgGalvanised steel414500
900 x 900 mm1039 x 1039 mm144 mm120 mmC 250131 kgGalvanised steel414501
1000 x 1000 mm1139 x 1139 mm144 mm120 mmC 250147 kgGalvanised steel414502
400 x 400 mm539 x 539 mm144 mm120 mmD 40050.4 kgGalvanised steel445645
500 x 500 mm639 x 639 mm144 mm120 mmD 40069.1 kgGalvanised steel445646
600 x 600 mm739 x 739 mm144 mm120 mmD 40090.2 kgGalvanised steel445647
700 x 700 mm839 x 839 mm144 mm120 mmD 400111 kgGalvanised steel445648
800 x 800 mm939 x 939 mm144 mm120 mmD 400146 kgGalvanised steel445649
900 x 900 mm1039 x 1039 mm144 mm120 mmD 400169.4 kgGalvanised steel445650
1000 x 1000 mm1139 x 1139 mm144 mm120 mmD 400197.6 kgGalvanised steel445651
