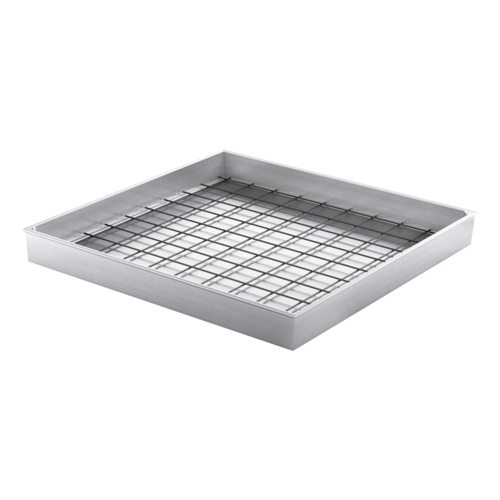

ACO Access Cover PAVING AL

Excellent optic aesthetics
Alluminium alloy
Equipped with one sealing (watertight is not guaranteed)
Trouble-free installation
Precise tolerances – symmetrical gap between frame and lid
2 operating keys
Load class capacity 30 kN guaranteed and certified (EN124)
- Concrete C35/45 mandatory (level 30 mm)
- Fully filled with C35/45 resist B125 (EN124)

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Class	Weight	Material	Item number	Downloads	Remember
[mm]	[mm]	[mm]	[mm]	[mm]	Class	[kg]	Material	Item number	Downloads	Remember
230 x 230	300 x 300	107	95	65	30 kN	3.3	Aluminium	450337
330 x 330	400 x 400	107	95	65	30 kN	4.9	Aluminium	450338
430 x 430	500 x 500	107	95	65	30 kN	6.5	Aluminium	450339
530 x 530	600 x 600	107	95	65	30 kN	8.3	Aluminium	450340
630 x 630	700 x 700	107	95	65	30 kN	10.2	Aluminium	450341
730 x 730	800 x 800	107	95	65	30 kN	12.3	Aluminium	450342
830 x 830	900 x 900	107	95	65	30 kN	14.6	Aluminium	450343
930 x 930	1000 x 1000	107	95	65	30 kN	17.3	Aluminium	450344
200 x 200	270 x 270	107	95	65	30 kN	2.9	Aluminium	450345
300 x 300	370 x 370	107	95	65	30 kN	4.4	Aluminium	450346
450 x 450	520 x 520	107	95	65	30 kN	5.7	Aluminium	450347
500 x 500	570 x 570	107	95	65	30 kN	7.3	Aluminium	450348
600 x 450	670 x 520	107	95	65	30 kN	8	Aluminium	450349
600 x 600	670 x 670	107	95	65	30 kN	9.1	Aluminium	450350
750 x 600	820 x 670	107	95	65	30 kN	11	Aluminium	450351
750 x 750	820 x 820	107	95	65	30 kN	13	Aluminium	450352
900 x 600	970 x 670	107	95	65	30 kN	12	Aluminium	450353
900 x 750	970 x 820	107	95	65	30 kN	14	Aluminium	450354
900 x 900	970 x 970	107	95	65	30 kN	15.1	Aluminium	450355

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Class	Weight	Material	Item number
230 x 230 mm	300 x 300 mm	107 mm	95 mm	65 mm	30 kN	3.3 kg	Aluminium	450337
330 x 330 mm	400 x 400 mm	107 mm	95 mm	65 mm	30 kN	4.9 kg	Aluminium	450338
430 x 430 mm	500 x 500 mm	107 mm	95 mm	65 mm	30 kN	6.5 kg	Aluminium	450339
530 x 530 mm	600 x 600 mm	107 mm	95 mm	65 mm	30 kN	8.3 kg	Aluminium	450340
630 x 630 mm	700 x 700 mm	107 mm	95 mm	65 mm	30 kN	10.2 kg	Aluminium	450341
730 x 730 mm	800 x 800 mm	107 mm	95 mm	65 mm	30 kN	12.3 kg	Aluminium	450342
830 x 830 mm	900 x 900 mm	107 mm	95 mm	65 mm	30 kN	14.6 kg	Aluminium	450343
930 x 930 mm	1000 x 1000 mm	107 mm	95 mm	65 mm	30 kN	17.3 kg	Aluminium	450344
200 x 200 mm	270 x 270 mm	107 mm	95 mm	65 mm	30 kN	2.9 kg	Aluminium	450345
300 x 300 mm	370 x 370 mm	107 mm	95 mm	65 mm	30 kN	4.4 kg	Aluminium	450346
450 x 450 mm	520 x 520 mm	107 mm	95 mm	65 mm	30 kN	5.7 kg	Aluminium	450347
500 x 500 mm	570 x 570 mm	107 mm	95 mm	65 mm	30 kN	7.3 kg	Aluminium	450348
600 x 450 mm	670 x 520 mm	107 mm	95 mm	65 mm	30 kN	8 kg	Aluminium	450349
600 x 600 mm	670 x 670 mm	107 mm	95 mm	65 mm	30 kN	9.1 kg	Aluminium	450350
750 x 600 mm	820 x 670 mm	107 mm	95 mm	65 mm	30 kN	11 kg	Aluminium	450351
750 x 750 mm	820 x 820 mm	107 mm	95 mm	65 mm	30 kN	13 kg	Aluminium	450352
900 x 600 mm	970 x 670 mm	107 mm	95 mm	65 mm	30 kN	12 kg	Aluminium	450353
900 x 750 mm	970 x 820 mm	107 mm	95 mm	65 mm	30 kN	14 kg	Aluminium	450354
900 x 900 mm	970 x 970 mm	107 mm	95 mm	65 mm	30 kN	15.1 kg	Aluminium	450355
