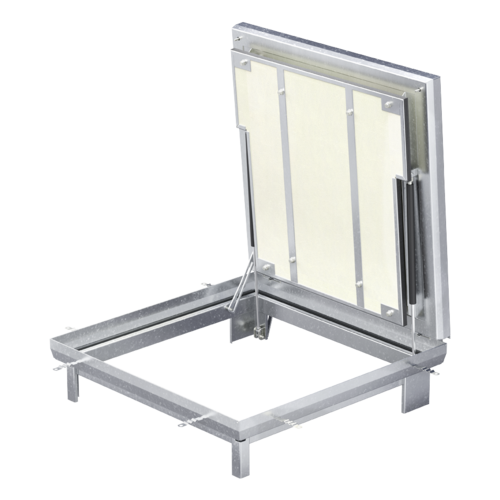

ACO Access Cover UNIFACE ASSIST GS/FR

ACO Access Cover Uniface Assist Gs-fr 713892

Product benefits

Fire resistance E120, EI₁120, EI₂120 (tested according to EN 1634-1 + A1, EN 1363-1, ČSN 73 0810) assured by fire resistence equipment
Application of concrete C35/45 in cover lid
Watertightness tested (not certified) acc. to EN 1253-4 *
Meets declared load class up to N250
Clear opening up to 1m
Locked by two bolts

^{* Watertightness test procedure acc. to EN 1253-4: water flooding 10±1 mm for time period 15±1m – no leak of water to the bottom side of cover supervised by Authorized body 204.}

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Class	Fire protection class	Weight	Material	Item number	Downloads	Remember
Clear area (A x B)	Frame dimension (C x D)	[mm]	[mm]	[mm]	Class	Fire protection class	[kg]	Material	Item number	Downloads	Remember
600 mm x 600 cm	726 mm x 726 cm	89	70	15	M 125	E120 / EI120	52	Galvanised steel	447939
800 mm x 800 cm	926 mm x 926 cm	89	70	15	L 15	E120 / EI120	76	Galvanised steel	447940
1000 mm x 1000 cm	1126 mm x 1126 cm	89	70	15	L 15	E120 / EI120	100	Galvanised steel	447941
600 mm x 600 cm	726 mm x 726 cm	89	110	15	N 250	E120 / EI120	52	Galvanised steel	447943
800 mm x 800 cm	926 mm x 926 cm	89	110	15	M 125	E120 / EI120	75	Galvanised steel	447944
600 mm x 800 cm	726 mm x 926 cm	89	70	15	M 125	E120 / EI120	62	Galvanised steel	447945
800 mm x 1000 cm	926 mm x 1126 cm	89	70	15	L 15	E120 / EI120	87	Galvanised steel	447946
600 mm x 750 cm	726 mm x 876 cm	89	70	15	M 125	E120 / EI120	59	Galvanised steel	447949
600 mm x 900 cm	726 mm x 1026 cm	89	70	15	M 125	E120 / EI120	66	Galvanised steel	447950
900 mm x 900 cm	1026 mm x 1026 cm	89	110	15	M 125	E120 / EI120	86	Galvanised steel	447951
600 mm x 1000 cm	726 mm x 1126 cm	89	70	15	M 125	E120 / EI120	72	Galvanised steel	447952
750 mm x 750 cm	876 mm x 876 cm	89	70	15	L 15	E120 / EI120	69	Galvanised steel	447953

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Class	Fire protection class	Weight	Material	Item number
600 mm x 600 cm	726 mm x 726 cm	89 mm	70 mm	15 mm	M 125	E120 / EI120	52 kg	Galvanised steel	447939
800 mm x 800 cm	926 mm x 926 cm	89 mm	70 mm	15 mm	L 15	E120 / EI120	76 kg	Galvanised steel	447940
1000 mm x 1000 cm	1126 mm x 1126 cm	89 mm	70 mm	15 mm	L 15	E120 / EI120	100 kg	Galvanised steel	447941
600 mm x 600 cm	726 mm x 726 cm	89 mm	110 mm	15 mm	N 250	E120 / EI120	52 kg	Galvanised steel	447943
800 mm x 800 cm	926 mm x 926 cm	89 mm	110 mm	15 mm	M 125	E120 / EI120	75 kg	Galvanised steel	447944
600 mm x 800 cm	726 mm x 926 cm	89 mm	70 mm	15 mm	M 125	E120 / EI120	62 kg	Galvanised steel	447945
800 mm x 1000 cm	926 mm x 1126 cm	89 mm	70 mm	15 mm	L 15	E120 / EI120	87 kg	Galvanised steel	447946
600 mm x 750 cm	726 mm x 876 cm	89 mm	70 mm	15 mm	M 125	E120 / EI120	59 kg	Galvanised steel	447949
600 mm x 900 cm	726 mm x 1026 cm	89 mm	70 mm	15 mm	M 125	E120 / EI120	66 kg	Galvanised steel	447950
900 mm x 900 cm	1026 mm x 1026 cm	89 mm	110 mm	15 mm	M 125	E120 / EI120	86 kg	Galvanised steel	447951
600 mm x 1000 cm	726 mm x 1126 cm	89 mm	70 mm	15 mm	M 125	E120 / EI120	72 kg	Galvanised steel	447952
750 mm x 750 cm	876 mm x 876 cm	89 mm	70 mm	15 mm	L 15	E120 / EI120	69 kg	Galvanised steel	447953
