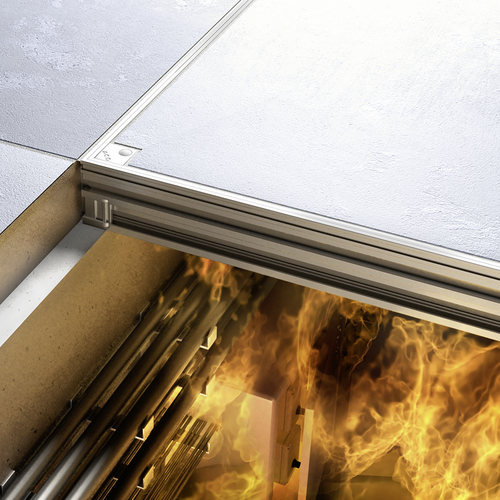

ACO Access Cover UNIFACE AL FR

ACO Access Cover Uniface Al Fr 698367

Product benefits

Fire proof E120, EI1120, EI2120 (tested according to EN 1634-1 + A1, EN 1363-1, ČSN 73 0810) assured with a fire resistance equipment
Meets declared load class up to M125
Corrosion resistant aluminium alloy
Water-resistance tested acc. to EN 1253-4

Order information

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Class	Fire protection class	Weight	Material	Item number	Downloads	Remember
Clear area (A x B)	Frame dimension (C x D)	[mm]	[mm]	[mm]	Class	Fire protection class	[kg]	Material	Item number	Downloads	Remember
300 mm x 300 cm	398 mm x 398 cm	74.5	70	15	M 125	E120 / EI120	11.2	Aluminium	447980
400 mm x 400 cm	498 mm x 498 cm	74.5	70	15	M 125	E120 / EI120	16.2	Aluminium	447981
450 mm x 450 cm	548 mm x 548 cm	74.5	70	15	M 125	E120 / EI120	17.6	Aluminium	447982
450 mm x 600 cm	548 mm x 698 cm	74.5	70	15	M 125	E120 / EI120	23.2	Aluminium	447971
500 mm x 500 cm	598 mm x 598 cm	74.5	70	15	M 125	E120 / EI120	20.4	Aluminium	447983
600 mm x 600 cm	698 mm x 698 cm	74.5	70	15	M 125	E120 / EI120	28.7	Aluminium	447984
600 mm x 750 cm	698 mm x 848 cm	74.5	70	15	M 125	E120 / EI120	34.5	Aluminium	447972
600 mm x 800 cm	698 mm x 898 cm	74.5	70	15	M 125	E120 / EI120	36.5	Aluminium	447986
600 mm x 900 cm	698 mm x 998 cm	74.5	70	15	M 125	E120 / EI120	39.8	Aluminium	447975
635 mm x 635 cm	733 mm x 733 cm	74.5	70	15	L 15	E120 / EI120	34.4	Aluminium	447978
675 mm x 675 cm	773 mm x 773 cm	74.5	70	15	L 15	E120 / EI120	36.8	Aluminium	447973
700 mm x 700 cm	798 mm x 798 cm	74.5	70	15	L 15	E120 / EI120	36.8	Aluminium	447987
750 mm x 750 cm	848 mm x 848 cm	74.5	70	15	L 15	E120 / EI120	40.7	Aluminium	447974
800 mm x 800 cm	898 mm x 898 cm	74.5	70	15	L 15	E120 / EI120	45.4	Aluminium	447988
800 mm x 1000 cm	898 mm x 1098 cm	74.5	70	15	L 15	E120 / EI120	54.6	Aluminium	447989
900 mm x 900 cm	998 mm x 998 cm	74.5	70	15	L 15	E120 / EI120	54.9	Aluminium	447977
1000 mm x 1000 cm	1098 mm x 1098 cm	74.5	70	15	L 15	E120 / EI120	65.4	Aluminium	447990

	Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Class	Fire protection class	Weight	Material	Item number
	300 mm x 300 cm	398 mm x 398 cm	74.5 mm	70 mm	15 mm	M 125	E120 / EI120	11.2 kg	Aluminium	447980
	400 mm x 400 cm	498 mm x 498 cm	74.5 mm	70 mm	15 mm	M 125	E120 / EI120	16.2 kg	Aluminium	447981
	450 mm x 450 cm	548 mm x 548 cm	74.5 mm	70 mm	15 mm	M 125	E120 / EI120	17.6 kg	Aluminium	447982
	450 mm x 600 cm	548 mm x 698 cm	74.5 mm	70 mm	15 mm	M 125	E120 / EI120	23.2 kg	Aluminium	447971
	500 mm x 500 cm	598 mm x 598 cm	74.5 mm	70 mm	15 mm	M 125	E120 / EI120	20.4 kg	Aluminium	447983
	600 mm x 600 cm	698 mm x 698 cm	74.5 mm	70 mm	15 mm	M 125	E120 / EI120	28.7 kg	Aluminium	447984
	600 mm x 750 cm	698 mm x 848 cm	74.5 mm	70 mm	15 mm	M 125	E120 / EI120	34.5 kg	Aluminium	447972
	600 mm x 800 cm	698 mm x 898 cm	74.5 mm	70 mm	15 mm	M 125	E120 / EI120	36.5 kg	Aluminium	447986
	600 mm x 900 cm	698 mm x 998 cm	74.5 mm	70 mm	15 mm	M 125	E120 / EI120	39.8 kg	Aluminium	447975
	635 mm x 635 cm	733 mm x 733 cm	74.5 mm	70 mm	15 mm	L 15	E120 / EI120	34.4 kg	Aluminium	447978
	675 mm x 675 cm	773 mm x 773 cm	74.5 mm	70 mm	15 mm	L 15	E120 / EI120	36.8 kg	Aluminium	447973
	700 mm x 700 cm	798 mm x 798 cm	74.5 mm	70 mm	15 mm	L 15	E120 / EI120	36.8 kg	Aluminium	447987
	750 mm x 750 cm	848 mm x 848 cm	74.5 mm	70 mm	15 mm	L 15	E120 / EI120	40.7 kg	Aluminium	447974
	800 mm x 800 cm	898 mm x 898 cm	74.5 mm	70 mm	15 mm	L 15	E120 / EI120	45.4 kg	Aluminium	447988
	800 mm x 1000 cm	898 mm x 1098 cm	74.5 mm	70 mm	15 mm	L 15	E120 / EI120	54.6 kg	Aluminium	447989
	900 mm x 900 cm	998 mm x 998 cm	74.5 mm	70 mm	15 mm	L 15	E120 / EI120	54.9 kg	Aluminium	447977
	1000 mm x 1000 cm	1098 mm x 1098 cm	74.5 mm	70 mm	15 mm	L 15	E120 / EI120	65.4 kg	Aluminium	447990
