Level invert channel

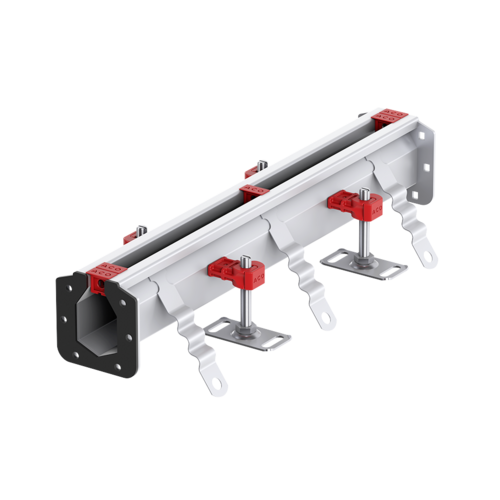

Level Invert Channel 716595

Product benefits

Corrosion-resistant stainless steel (AISI 304/316).
Depths ranging from 50 mm to 150 mm; segment lengths up to 3 m.
Supports up to R50 load class.
Narrow, V-shaped, fully drainable profile with no inner reinforcement pins.
Compatible with existing gratings, silt baskets, FATs, and Vican brooms.
External ribs provide structural integrity during concreting.
Equipped with levelling feet for quick and easy setup.

Product information

BIM models are available in ACO Building Drainage BIM Revit libraries

Fully inspectable and V-shaped design ensures complete drainage and superior cleanability.
High flow rates and compatibility with long sloped applications.
Fully cleanable, ensuring complete visibility and access.
Ideal for high-care industrial zones such as food processing and butchery areas.
Available in various depths and lengths to fit diverse applications.

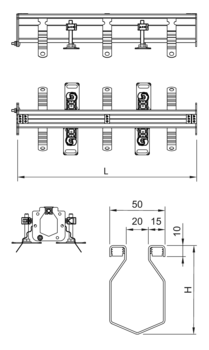

L	H	Material	Item number	Downloads	Remember
[mm]	[mm]	Material	Item number	Downloads	Remember
500	50	1.4301	449288
	50	1.4404	449289
	65	1.4301	449290
	65	1.4404	449291
	80	1.4301	449292
	80	1.4404	449293
1000	50	1.4301	449294
	50	1.4404	449295
	65	1.4301	449296
	65	1.4404	449297
	80	1.4301	449298
	80	1.4404	449299
2000	50	1.4301	449300
	50	1.4404	449301
	65	1.4301	449302
	65	1.4404	449303
	80	1.4301	449304
	80	1.4404	449305
3000	50	1.4301	449306
	50	1.4404	449307
	65	1.4301	449308
	65	1.4404	449309
	80	1.4301	449310
	80	1.4404	449311

	L	H	Material	Item number
	500 mm	50 mm	1.4301	449288
	500 mm	50 mm	1.4404	449289
	500 mm	65 mm	1.4301	449290
	500 mm	65 mm	1.4404	449291
	500 mm	80 mm	1.4301	449292
	500 mm	80 mm	1.4404	449293
	1000 mm	50 mm	1.4301	449294
	1000 mm	50 mm	1.4404	449295
	1000 mm	65 mm	1.4301	449296
	1000 mm	65 mm	1.4404	449297
	1000 mm	80 mm	1.4301	449298
	1000 mm	80 mm	1.4404	449299
	2000 mm	50 mm	1.4301	449300
	2000 mm	50 mm	1.4404	449301
	2000 mm	65 mm	1.4301	449302
	2000 mm	65 mm	1.4404	449303
	2000 mm	80 mm	1.4301	449304
	2000 mm	80 mm	1.4404	449305
	3000 mm	50 mm	1.4301	449306
	3000 mm	50 mm	1.4404	449307
	3000 mm	65 mm	1.4301	449308
	3000 mm	65 mm	1.4404	449309
	3000 mm	80 mm	1.4301	449310
	3000 mm	80 mm	1.4404	449311

ACO tundish portable

Suitable for

Universal

Description

Base width x length (mm): 250 mm x 286 mm
Funnel width x length (mm): x
Funnel height (mm): 100 mm
Material (EN 1253): 1.4301

Item no.
450648

ACO tundish portable

Suitable for

Universal

Description

Base width x length (mm): 250 mm x 286 mm
Funnel width x length (mm): x
Funnel height (mm): 200 mm
Material (EN 1253): 1.4301

Item no.
450649

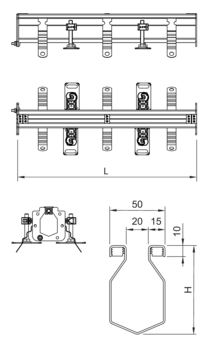

L	H	Material	Item number	Downloads	Remember
