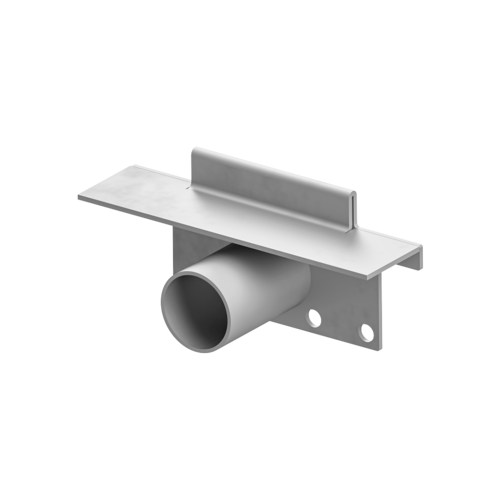

End plate with 50 mm outlet
Product benefits
- Modular system in elements from 50 cm to 3 m connectable through flanges equipped with gaskets and bolts for a perfect water-tight fit
- Design with horizontal border support for optimal liquid waterproofing under the tile
- V-shaped bottom for better water flow even at low flow rates and for better self-cleaning performance
- Suitable for both applications inside buildings and on the outside
- 3 different cover grids
Product information
- Internal channel height of only 50 mm
- Anchoring brackets to the concrete
- Flange with holes for assembling the elements using bolts
- EDPM gasket to guarantee a perfect seal
- Material 1.4404 (316L) on request
- Type 1: ACO box channel - standard type - gully with adhesive bonding flange
- Tilles floor
- 1 Ceramic tiles
- 2 Tile cement
- 3 Mastic sealant
- 4 Rubber infill
- 5 Floor screed
- 6 Water proof membrane
- 7 Solid concrete floor slab
![](https://www.buildingdrainage.aco/catalog/_processed_/1/b/csm_floormounting_type-1_144887_04f466aa2c.png?fileVersion=1720513257)
Typ 2: ACO box channel - gully with mechanical clamping flange
Tiled floor
- 1 Ceramic tiles
- 2 Tile cement
- 3 Mastic sealant
- 4 Rubber infill
- 5 Floor screed
- 6 Water proof membrane
- 7 Solid concret floor slab
- 8 Compacted soil
![](https://www.buildingdrainage.aco/catalog/_processed_/d/a/csm_floormounting_type-2_144889_47079b599d.png?fileVersion=1720513259)
Typ 3: ACO box channel - gully with location flange
Resin floor
- 1 Epoxy / resin floor
- 2 Floor screed
- 3 Rubber infill
- 4 Solid concrete floor slab
- 5 Compacted soil
![](https://www.buildingdrainage.aco/catalog/_processed_/d/d/csm_floormounting_type-3_144891_1e362e91e7.png?fileVersion=1720513262)
Typ 4: ACO box channel - vinyl type - gully with location flange
Vinyl floor
- 1 Vinyl floor
- 2 Vinyl seal
- 3 Floor screed
- 4 Solid concrete floor slab
- 5 Compacted soil
![](https://www.buildingdrainage.aco/catalog/_processed_/c/2/csm_floormounting_type-4_144893_88454eaad0.png?fileVersion=1720513265)
