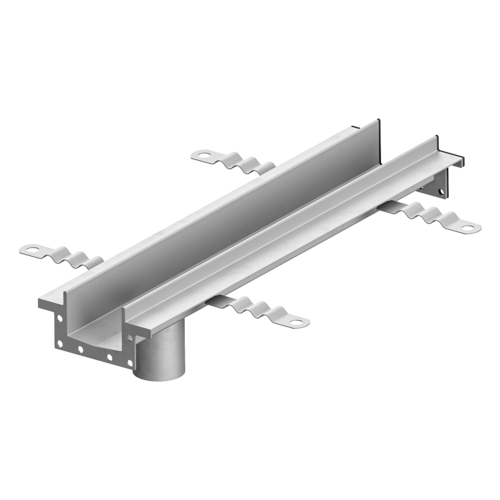

End outlet
Product benefits
- Modular system in elements from 50 cm to 3 m connectable through flanges equipped with gaskets and bolts for a perfect water-tight fit
- Design with horizontal border support for optimal liquid waterproofing under the tile
- V-shaped bottom for better water flow even at low flow rates and for better self-cleaning performance
- Suitable for both applications inside buildings and on the outside
- 3 different cover grids
Product information
- Internal channel height of only 50 mm
- Anchoring brackets to the concrete
- Flange with holes for assembling the elements using bolts
- EDPM gasket to guarantee a perfect seal
- Material 1.4404 (316L) on request
- Type 1: ACO box channel - standard type - gully with adhesive bonding flange
- Tilles floor
- 1 Ceramic tiles
- 2 Tile cement
- 3 Mastic sealant
- 4 Rubber infill
- 5 Floor screed
- 6 Water proof membrane
- 7 Solid concrete floor slab
Typ 2: ACO box channel - gully with mechanical clamping flange
Tiled floor
- 1 Ceramic tiles
- 2 Tile cement
- 3 Mastic sealant
- 4 Rubber infill
- 5 Floor screed
- 6 Water proof membrane
- 7 Solid concret floor slab
- 8 Compacted soil
Typ 3: ACO box channel - gully with location flange
Resin floor
- 1 Epoxy / resin floor
- 2 Floor screed
- 3 Rubber infill
- 4 Solid concrete floor slab
- 5 Compacted soil
Typ 4: ACO box channel - vinyl type - gully with location flange
Vinyl floor
- 1 Vinyl floor
- 2 Vinyl seal
- 3 Floor screed
- 4 Solid concrete floor slab
- 5 Compacted soil
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 100 mm
- Material (EN 1253): 1.4301
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 200 mm
- Material (EN 1253): 1.4301
- Type 1: ACO box channel - standard type - gully with adhesive bonding flange
- Tilles floor
- 1 Ceramic tiles
- 2 Tile cement
- 3 Mastic sealant
- 4 Rubber infill
- 5 Floor screed
- 6 Water proof membrane
- 7 Solid concrete floor slab
Typ 2: ACO box channel - gully with mechanical clamping flange
Tiled floor
- 1 Ceramic tiles
- 2 Tile cement
- 3 Mastic sealant
- 4 Rubber infill
- 5 Floor screed
- 6 Water proof membrane
- 7 Solid concret floor slab
- 8 Compacted soil
Typ 3: ACO box channel - gully with location flange
Resin floor
- 1 Epoxy / resin floor
- 2 Floor screed
- 3 Rubber infill
- 4 Solid concrete floor slab
- 5 Compacted soil
Typ 4: ACO box channel - vinyl type - gully with location flange
Vinyl floor
- 1 Vinyl floor
- 2 Vinyl seal
- 3 Floor screed
- 4 Solid concrete floor slab
- 5 Compacted soil
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 100 mm
- Material (EN 1253): 1.4301
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 200 mm
- Material (EN 1253): 1.4301
