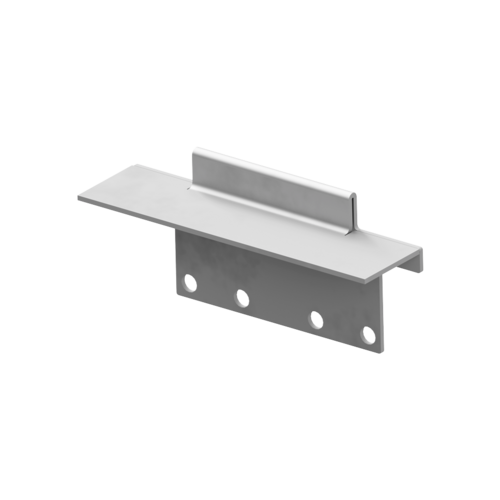

End cap

Product benefits

  • Modular system in elements from 50 cm to 3 m connectable through flanges equipped with gaskets and bolts for a perfect water-tight fit
  • Design with horizontal border support for optimal liquid waterproofing under the tile
  • V-shaped bottom for better water flow even at low flow rates and for better self-cleaning performance
  • Suitable for both applications inside buildings and on the outside
  • 3 different cover grids

Product information

  • Internal channel height of only 50 mm
  • Anchoring brackets to the concrete
  • Flange with holes for assembling the elements using bolts
  • EDPM gasket to guarantee a perfect seal
  • Material 1.4404 (316L) on request
DimensionsMaterialItem

number
Remember
H
[mm]
501.4301449191
DimensionsMaterialItem

number
H
50 mm1.4301449191
  • Type 1: ACO box channel - standard type - gully with adhesive bonding flange
  • Tilles floor
    • 1 Ceramic tiles
    • 2 Tile cement
    • 3 Mastic sealant
    • 4 Rubber infill
    • 5 Floor screed
    • 6 Water proof membrane
    • 7 Solid concrete floor slab

Typ 2: ACO box channel - gully with mechanical clamping flange

Tiled floor

  • 1 Ceramic tiles
  • 2 Tile cement
  • 3 Mastic sealant
  • 4 Rubber infill
  • 5 Floor screed
  • 6 Water proof membrane
  • 7 Solid concret floor slab
  • 8 Compacted soil

Typ 3: ACO box channel - gully with location flange

Resin floor

  • 1 Epoxy / resin floor
  • 2 Floor screed
  • 3 Rubber infill
  • 4 Solid concrete floor slab
  • 5 Compacted soil

Typ 4: ACO box channel - vinyl type - gully with location flange

Vinyl floor

  • 1 Vinyl floor
  • 2 Vinyl seal
  • 3 Floor screed
  • 4 Solid concrete floor slab
  • 5 Compacted soil

ACO tundish portable

Suitable for
  • ACO drainage independent of visible edge dimensions
Description
  • Stainless steel
  • Material grade 1.4301 (304)
