Straight shower channels | Channels, gratings and covers

Product benefits

  • Minimum installation height: 115 mm (with socket inclination 1.5°)
  • Optional seepage water drainage
  • Gully body 360° rotatable
  • Stepless height-adjustable

Product information

  • Stainless steel, surface pickle passivated
  • Tested according to to EN 1253‑1
  • Product class: A (EN 1253‑1)
  • Load class: K3 (EN 1253‑1)

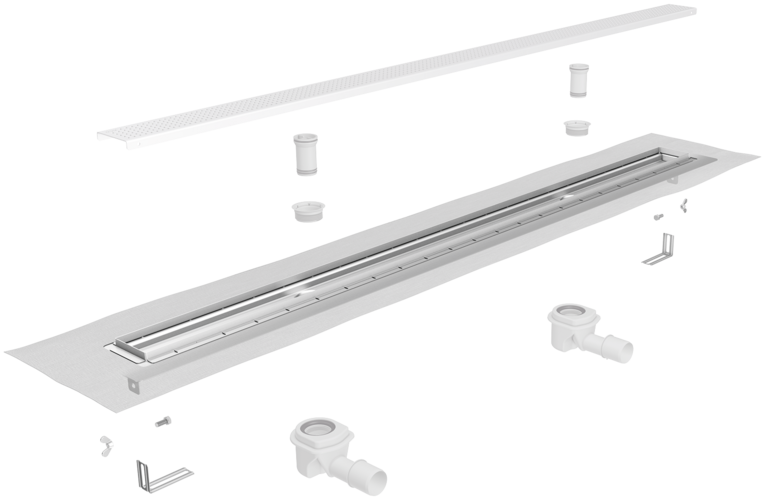

  • Installation: modular system in combination with separate gully body
  • Height-adjustability: 30 mm - 140 mm, with respect to selected gully body
  • Visiible width: 83 mm
  • Channel width inside: 80 mm
  • Frame for tiles:
    • Height: 15 mm
    • With integtrated diffussion vents for secondary drainage
  • Flange design: flange is part of the channel (one piece), factory-bonded membrane with 60 mm overlapping
  • Scope of delivery: mounting material and height adjustable feet

Infobox

Please note: Customiszed design up to 3,000 mm on request

Without wall flange

DimensionsNumberItem

number
Remember
L1L2B
[mm][mm][mm][piece]
Image1500160018329008.60.15
2000210018329008.60.20
2500260018339008.60.25
3000310018339008.60.30

Wall flange at rear

DimensionsNumberItem

number
Remember
L1L2B
[mm][mm][mm][piece]
Image1500160015229008.70.15
2000210015229008.70.20
2500260015239008.70.25
3000310015239008.70.30
DimensionsItem

number
L1L2B
Image1500 mm1600 mm183 mm9008.60.15
Image2000 mm2100 mm183 mm9008.60.20
Image2500 mm2600 mm183 mm9008.60.25
Image3000 mm3100 mm183 mm9008.60.30
Image1500 mm1600 mm152 mm9008.70.15
Image2000 mm2100 mm152 mm9008.70.20
Image2500 mm2600 mm152 mm9008.70.25
Image3000 mm3100 mm152 mm9008.70.30
