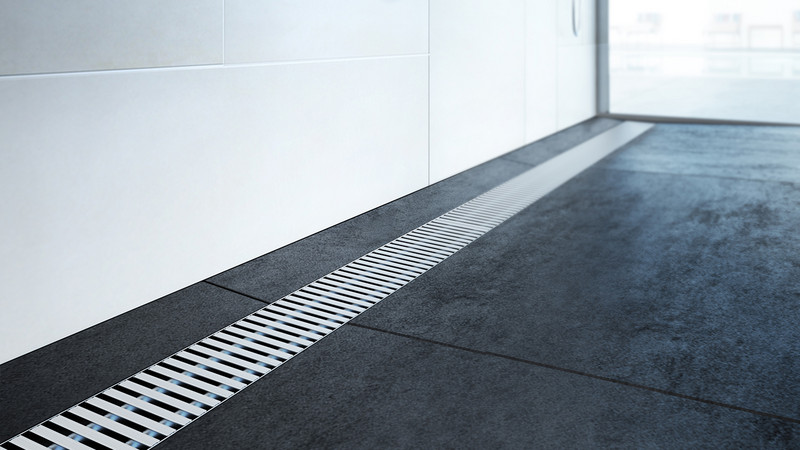

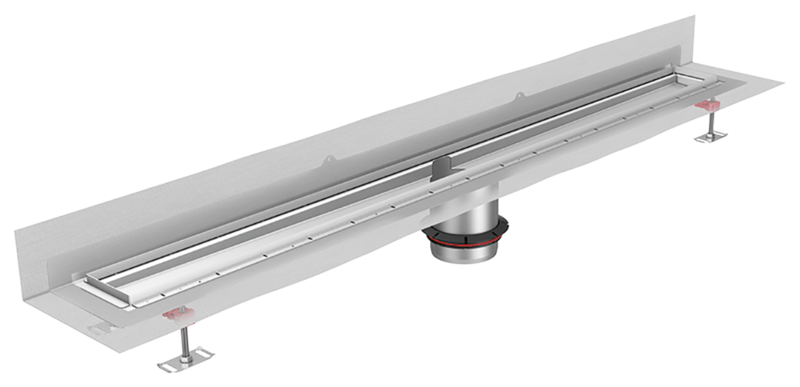

Channel body ACO ShowerDrain Public 110, with vertical wall flange, installation height: 60 – 135 mm (top of screed)

Product benefits

  • Gully body selectively made of stainless steel or cast iron
  • Can be combined with a fire protection gully
  • Optional seepage water drainage
  • Stepless height-adjustable

Product information

  • Stainless steel, surface pickle passivated
  • Tested according to to EN 1253‑1
  • Product class: A (EN 1253‑1)
  • Load class: K3 (EN 1253‑1)
  • Installation: modular system in combination with separate gully body
  • Height-adjustability: 30 mm - 140 mm, with respect to selected gully body
  • Visible width: 110 mm
  • Channel width inside: 107 mm
  • Frame for tiles:
    • Height: 15 mm
    • With integrated diffusion vents for secondary drainage
  • Flange design: flange is part of the channel (one piece), factory-bonded membrane with 60 mm overlapping
  • Scope of delivery channel body: feet for height-adjustability, combination ring for stainless steel gully ACO Variant-CR 142

Infobox

Please note: Customiszed design up to 5,000 mm on request

Wall flange at rear

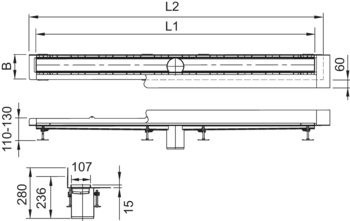

DimensionsNumber of gullysItem

number
Remember
L1L2B
[mm][mm][mm][piece]
Image1500160017919011.70.164
2000210017919011.70.214
2500260017919011.70.264
3000310017919011.70.314
DimensionsItem

number
L1L2B
Image1500 mm1600 mm179 mm9011.70.16
Image2000 mm2100 mm179 mm9011.70.21
Image2500 mm2600 mm179 mm9011.70.26
Image3000 mm3100 mm179 mm9011.70.31

Removable dirt trap

Description
  • Rabattgruppe: 4

mounting rail

Suitable for
  • ACO box channels
  • ACO slot channels
  • ACO car park channels
  • ACO ShowerDrain Public 110
Description
  • Assembly in floating screed: prevention of voltages and cracks in the screed
  • Sound decoupling: effective decoupling between channel and soils; mobile and vibrations are better absorbed
  • Faster assembly in channel recesses: optimised for accelerated installation in recesses
  • Versatile application: also suitable for wall mounting - flexible and adaptable to a wide range of requirements
  • Durable materials: can be reused as often as required
