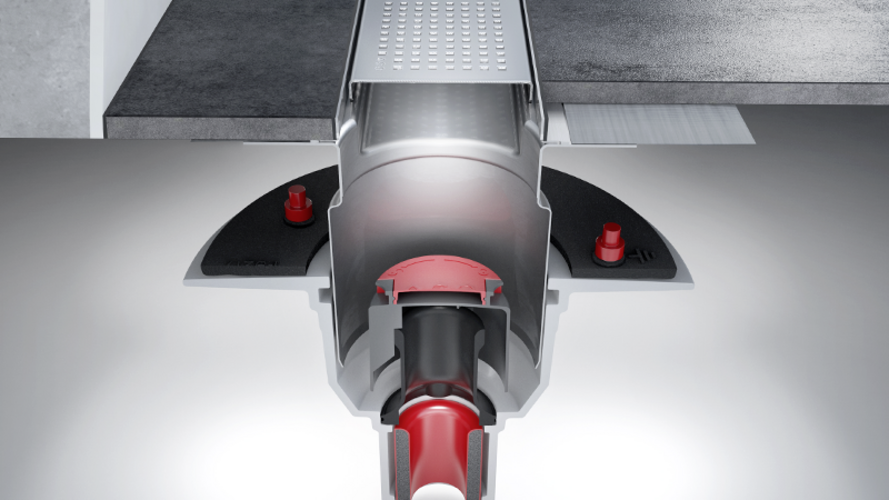

ACO ShowerDrain Public 110 - Surrounding flange

Product benefits

Building material class A1
Tested and practical fire protection solutions (German approval AbZ. Z-19.17-2144)
- For Fit-in installation - minimum ceiling thickness: 100 mm
abG: Z-19.53-2419
Sound insulation tested to EN 4109/VDI 4100:2012
- Noise level: L_AFmax ≤ 22 dB(A)

Product information

Cast iron, material EN-GJL-200
Tested to EN 1253-1
Surface:
- Epoxidized white (easy-to-clean coating)
Connection to all standard sealing systems
Pipe connection SML according to: EN 877
Core drill: Ø 160 mm

Fire protection

Fire resistance class R30 – R120 tested according AbZ: Z-19.17-1887

	Socket inclination	Flange design	Recess (LxB)	Flow rate	Weight	Item number		Downloads	Remember
	Socket inclination	Flange design	[mm]	[l/s]	[kg]	Item number		Downloads	Remember
	90°	Location flange	200 x 170	1.0	3.7	5149.60.20	1
	90°	Adhesive bonding flange	360 x 180	1.0	7.4	5150.60.20	1
	90°	Mechanical clamping flange	320 x 180	1.0	8.3	5151.60.20	1
	1,5°	Location flange	360 x 170	1.0	4.7	5149.80.20	1
	1,5°	Adhesive bonding flange	360 x 180	1.0	8.3	5150.80.20	1
	1,5°	Mechanical clamping flange	360 x 180	1.0	8.9	5151.90.20	1

	Socket inclination	Flange design	Recess (LxB)	Flow rate	Weight	Item number		Downloads	Remember
	Socket inclination	Flange design	[mm]	[l/s]	[kg]	Item number		Downloads	Remember
	90°	Location flange	200 x 170	2.0	3.9	5169.60.20	1
	90°	Adhesive bonding flange	360 x 180	2.0	7.7	5170.60.20	1
	90°	Mechanical clamping flange	320 x 180	2.0	8.6	5171.60.20	1
	1,5°	Location flange	360 x 170	1.6	4.7	5169.70.20	1
	1,5°	Adhesive bonding flange	360 x 180	1.6	8.3	5170.80.20	1
	1,5°	Mechanical clamping flange	360 x 180	1.6	8.9	5171.90.20	1

	Socket inclination	Flange design	Recess (LxB)	Flow rate	Weight	Item number		Downloads	Remember
	Socket inclination	Flange design	[mm]	[l/s]	[kg]	Item number		Downloads	Remember
	90°	Location flange	200 x 170	2.0	4.5	5569.60.20	1
	90°	Adhesive bonding flange	360 x 180	2.0	8.3	5570.60.20	1
	90°	Mechanical clamping flange	320 x 180	2.0	9.2	5571.60.20	1
	1,5°	Location flange	360 x 170	1.6	5.2	5569.70.20	1
	1,5°	Adhesive bonding flange	360 x 180	1.6	8.8	5570.80.20	1
	1,5°	Mechanical clamping flange	360 x 180	1.6	9.4	5571.90.20	1

	Socket inclination	Nominal width		Recess (LxB)	Flow rate		Weight	Item number

	90°	DN 50	Location flange	200 x 170 mm	1.0 l/s	Without lateral inlet	3.7 kg	5149.60.20
	90°	DN 50	Adhesive bonding flange	360 x 180 mm	1.0 l/s	Without lateral inlet	7.4 kg	5150.60.20
	90°	DN 50	Mechanical clamping flange	320 x 180 mm	1.0 l/s	Without lateral inlet	8.3 kg	5151.60.20
	1,5°	DN 50	Location flange	360 x 170 mm	1.0 l/s	Without lateral inlet	4.7 kg	5149.80.20
	1,5°	DN 50	Adhesive bonding flange	360 x 180 mm	1.0 l/s	Without lateral inlet	8.3 kg	5150.80.20
	1,5°	DN 50	Mechanical clamping flange	360 x 180 mm	1.0 l/s	Without lateral inlet	8.9 kg	5151.90.20
	90°	DN 70	Location flange	200 x 170 mm	2.0 l/s	Without lateral inlet	3.9 kg	5169.60.20
	90°	DN 70	Adhesive bonding flange	360 x 180 mm	2.0 l/s	Without lateral inlet	7.7 kg	5170.60.20
	90°	DN 70	Mechanical clamping flange	320 x 180 mm	2.0 l/s	Without lateral inlet	8.6 kg	5171.60.20
	1,5°	DN 70	Location flange	360 x 170 mm	1.6 l/s	Without lateral inlet	4.7 kg	5169.70.20
	1,5°	DN 70	Adhesive bonding flange	360 x 180 mm	1.6 l/s	Without lateral inlet	8.3 kg	5170.80.20
	1,5°	DN 70	Mechanical clamping flange	360 x 180 mm	1.6 l/s	Without lateral inlet	8.9 kg	5171.90.20
	90°	DN 100	Location flange	200 x 170 mm	2.0 l/s	Without lateral inlet	4.5 kg	5569.60.20
	90°	DN 100	Adhesive bonding flange	360 x 180 mm	2.0 l/s	Without lateral inlet	8.3 kg	5570.60.20
	90°	DN 100	Mechanical clamping flange	320 x 180 mm	2.0 l/s	Without lateral inlet	9.2 kg	5571.60.20
	1,5°	DN 100	Location flange	360 x 170 mm	1.6 l/s	Without lateral inlet	5.2 kg	5569.70.20
	1,5°	DN 100	Adhesive bonding flange	360 x 180 mm	1.6 l/s	Without lateral inlet	8.8 kg	5570.80.20
	1,5°	DN 100	Mechanical clamping flange	360 x 180 mm	1.6 l/s	With lateral inlet	9.4 kg	5571.90.20

Odour trap

Suitable for

All Passavant gully bodies
- DN 50 – DN 100

Description

Consisting of:
- Bell and pneumatic pipe
Weight: 0.2 kg
Rabattgruppe: 1

Item no.
5128.10.55

Odour and smoke stop

Suitable for

Foul air trap
Fire protection sets

Description

Made of rubber
Only use with foul air trap or fire protection set
For ACO Passavant floor gully: Flow reduction to 0.3 l/s
Weight: 0.1 kg
Rabattgruppe: 1

Item no.
5128.10.75

Fire protection set

Suitable for

Passavant gully bodies
Socket inclination: 90°
DN 50

Description

Fire and smoke blocker for subsequent fire protection equipment of gully bodies
Consisting of
- Odour seal with heat shield
- Fire protection cartridge
German approval: AbZ. Z‑19.17‑2144
Weight: 0.4 kg
Rabattgruppe: 1

Item no.
5150.10.35

Fire protection set

Suitable for

Passavant gully bodies
Socket inclination: 90°
DN 70

Description

Fire and smoke blocker for subsequent fire protection equipment of gully bodies
Consisting of
- Odour seal with heat shield
- Fire protection cartridge
German approval: AbZ. Z‑19.17‑2144
Weight: 0.4 kg
Rabattgruppe: 1

Item no.
5170.10.35

Fire protection set

Suitable for

Passavant gully bodies
Socket inclination: 90°
DN 100

Description

Fire and smoke blocker for subsequent fire protection equipment of gully bodies
Consisting of
- Odour seal with heat shield
- Fire protection cartridge
German approval: AbZ. Z‑19.17‑2144
Weight: 0.5 kg
Rabattgruppe: 1

Item no.
5570.10.35

Fit-In installation set

Suitable for

Passavant gully bodies
Socket inclination: 90°
DN 50

Description

Non-combustible
- Building material class A1
For mortar-free installation in core drills: Ø 160 mm
Fit-in dimensions
- Diameter: 159 mm
- Height: 149 mm
German approval:
- AbZ. Z‑19.17‑2144
- aBG: Z-19.53-2419
Weight: 1.2 kg
Rabattgruppe: 1

Item no.
5150.10.60

Fit-In installation set

Suitable for

Passavant gully bodies
Socket inclination: 90°
DN 70

Description

Non-combustible
- Building material class A1
For mortar-free installation in core drills: Ø 160 mm
Fit-in dimensions
- Diameter: 159 mm
- Height: 149 mm
German approval:
- AbZ. Z‑19.17‑2144
- aBG: Z-19.53-2419
Weight: 1.2 kg
Rabattgruppe: 1

Item no.
5170.10.60

Fit-In installation set

Suitable for

Passavant gully bodies
Socket inclination: 90°
DN 100

Description

Non-combustible
- Building material class A1
For mortar-free installation in core drills: Ø 160 mm
Fit-in dimensions
- Diameter: 159 mm
- Height: 149 mm
German approval:
- AbZ. Z‑19.17‑2144
- aBG: Z-19.53-2419
Weight: 1 kg
Rabattgruppe: 1

Item no.
5570.10.60

Sealing ring

Suitable for

All Passavant top sections
- DN 50 – DN 100

Description

As a seal between the top section and body
Ring colour: black
Weight: 0.1 kg
Rabattgruppe: 1

Item no.
5150.90.20

	Socket inclination	Flange design	Recess (LxB)	Flow rate	Weight	Item number		Downloads	Remember
	Socket inclination	Flange design	[mm]	[l/s]	[kg]	Item number		Downloads	Remember
	90°	Location flange	200 x 170	1.0	3.7	5149.60.20	1
	90°	Adhesive bonding flange	360 x 180	1.0	7.4	5150.60.20	1
	90°	Mechanical clamping flange	320 x 180	1.0	8.3	5151.60.20	1
	1,5°	Location flange	360 x 170	1.0	4.7	5149.80.20	1
	1,5°	Adhesive bonding flange	360 x 180	1.0	8.3	5150.80.20	1
	1,5°	Mechanical clamping flange	360 x 180	1.0	8.9	5151.90.20	1

	Socket inclination	Flange design	Recess (LxB)	Flow rate	Weight	Item number		Downloads	Remember
	Socket inclination	Flange design	[mm]	[l/s]	[kg]	Item number		Downloads	Remember
	90°	Location flange	200 x 170	2.0	3.9	5169.60.20	1
	90°	Adhesive bonding flange	360 x 180	2.0	7.7	5170.60.20	1
	90°	Mechanical clamping flange	320 x 180	2.0	8.6	5171.60.20	1
	1,5°	Location flange	360 x 170	1.6	4.7	5169.70.20	1
	1,5°	Adhesive bonding flange	360 x 180	1.6	8.3	5170.80.20	1
	1,5°	Mechanical clamping flange	360 x 180	1.6	8.9	5171.90.20	1

	Socket inclination	Flange design	Recess (LxB)	Flow rate	Weight	Item number		Downloads	Remember
	Socket inclination	Flange design	[mm]	[l/s]	[kg]	Item number		Downloads	Remember
	90°	Location flange	200 x 170	2.0	4.5	5569.60.20	1
	90°	Adhesive bonding flange	360 x 180	2.0	8.3	5570.60.20	1
	90°	Mechanical clamping flange	320 x 180	2.0	9.2	5571.60.20	1
	1,5°	Location flange	360 x 170	1.6	5.2	5569.70.20	1
	1,5°	Adhesive bonding flange	360 x 180	1.6	8.8	5570.80.20	1
	1,5°	Mechanical clamping flange	360 x 180	1.6	9.4	5571.90.20	1

	Socket inclination	Nominal width		Recess (LxB)	Flow rate		Weight	Item number

	90°	DN 50	Location flange	200 x 170 mm	1.0 l/s	Without lateral inlet	3.7 kg	5149.60.20
	90°	DN 50	Adhesive bonding flange	360 x 180 mm	1.0 l/s	Without lateral inlet	7.4 kg	5150.60.20
	90°	DN 50	Mechanical clamping flange	320 x 180 mm	1.0 l/s	Without lateral inlet	8.3 kg	5151.60.20
	1,5°	DN 50	Location flange	360 x 170 mm	1.0 l/s	Without lateral inlet	4.7 kg	5149.80.20
	1,5°	DN 50	Adhesive bonding flange	360 x 180 mm	1.0 l/s	Without lateral inlet	8.3 kg	5150.80.20
	1,5°	DN 50	Mechanical clamping flange	360 x 180 mm	1.0 l/s	Without lateral inlet	8.9 kg	5151.90.20
	90°	DN 70	Location flange	200 x 170 mm	2.0 l/s	Without lateral inlet	3.9 kg	5169.60.20
	90°	DN 70	Adhesive bonding flange	360 x 180 mm	2.0 l/s	Without lateral inlet	7.7 kg	5170.60.20
	90°	DN 70	Mechanical clamping flange	320 x 180 mm	2.0 l/s	Without lateral inlet	8.6 kg	5171.60.20
	1,5°	DN 70	Location flange	360 x 170 mm	1.6 l/s	Without lateral inlet	4.7 kg	5169.70.20
	1,5°	DN 70	Adhesive bonding flange	360 x 180 mm	1.6 l/s	Without lateral inlet	8.3 kg	5170.80.20
	1,5°	DN 70	Mechanical clamping flange	360 x 180 mm	1.6 l/s	Without lateral inlet	8.9 kg	5171.90.20
	90°	DN 100	Location flange	200 x 170 mm	2.0 l/s	Without lateral inlet	4.5 kg	5569.60.20
	90°	DN 100	Adhesive bonding flange	360 x 180 mm	2.0 l/s	Without lateral inlet	8.3 kg	5570.60.20
	90°	DN 100	Mechanical clamping flange	320 x 180 mm	2.0 l/s	Without lateral inlet	9.2 kg	5571.60.20
	1,5°	DN 100	Location flange	360 x 170 mm	1.6 l/s	Without lateral inlet	5.2 kg	5569.70.20
	1,5°	DN 100	Adhesive bonding flange	360 x 180 mm	1.6 l/s	Without lateral inlet	8.8 kg	5570.80.20
	1,5°	DN 100	Mechanical clamping flange	360 x 180 mm	1.6 l/s	With lateral inlet	9.4 kg	5571.90.20

Odour trap

Suitable for

All Passavant gully bodies
- DN 50 – DN 100

Description

Consisting of:
- Bell and pneumatic pipe
Weight: 0.2 kg
Rabattgruppe: 1

Item no.
5128.10.55

Odour and smoke stop

Suitable for

Foul air trap
Fire protection sets

Description

Made of rubber
Only use with foul air trap or fire protection set
For ACO Passavant floor gully: Flow reduction to 0.3 l/s
Weight: 0.1 kg
Rabattgruppe: 1

Item no.
5128.10.75

Fire protection set

Suitable for

Passavant gully bodies
Socket inclination: 90°
DN 50

Description

Fire and smoke blocker for subsequent fire protection equipment of gully bodies
Consisting of
- Odour seal with heat shield
- Fire protection cartridge
German approval: AbZ. Z‑19.17‑2144
Weight: 0.4 kg
Rabattgruppe: 1

Item no.
5150.10.35

Fire protection set

Suitable for

Passavant gully bodies
Socket inclination: 90°
DN 70

Description

Fire and smoke blocker for subsequent fire protection equipment of gully bodies
Consisting of
- Odour seal with heat shield
- Fire protection cartridge
German approval: AbZ. Z‑19.17‑2144
Weight: 0.4 kg
Rabattgruppe: 1

Item no.
5170.10.35

Fire protection set

Suitable for

Passavant gully bodies
Socket inclination: 90°
DN 100

Description

Fire and smoke blocker for subsequent fire protection equipment of gully bodies
Consisting of
- Odour seal with heat shield
- Fire protection cartridge
German approval: AbZ. Z‑19.17‑2144
Weight: 0.5 kg
Rabattgruppe: 1

Item no.
5570.10.35

Fit-In installation set

Suitable for

Passavant gully bodies
Socket inclination: 90°
DN 50

Description

Non-combustible
- Building material class A1
For mortar-free installation in core drills: Ø 160 mm
Fit-in dimensions
- Diameter: 159 mm
- Height: 149 mm
German approval:
- AbZ. Z‑19.17‑2144
- aBG: Z-19.53-2419
Weight: 1.2 kg
Rabattgruppe: 1

Item no.
5150.10.60

Fit-In installation set

Suitable for

Passavant gully bodies
Socket inclination: 90°
DN 70

Description

Non-combustible
- Building material class A1
For mortar-free installation in core drills: Ø 160 mm
Fit-in dimensions
- Diameter: 159 mm
- Height: 149 mm
German approval:
- AbZ. Z‑19.17‑2144
- aBG: Z-19.53-2419
Weight: 1.2 kg
Rabattgruppe: 1

Item no.
5170.10.60

Fit-In installation set

Suitable for

Passavant gully bodies
Socket inclination: 90°
DN 100

Description

Non-combustible
- Building material class A1
For mortar-free installation in core drills: Ø 160 mm
Fit-in dimensions
- Diameter: 159 mm
- Height: 149 mm
German approval:
- AbZ. Z‑19.17‑2144
- aBG: Z-19.53-2419
Weight: 1 kg
Rabattgruppe: 1

Item no.
5570.10.60

Sealing ring

Suitable for

All Passavant top sections
- DN 50 – DN 100

Description

As a seal between the top section and body
Ring colour: black
Weight: 0.1 kg
Rabattgruppe: 1

Item no.
5150.90.20
