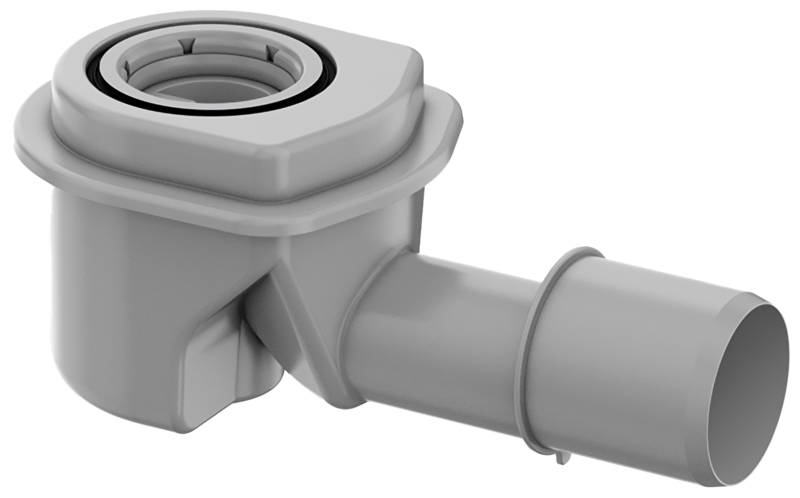

Gully body of Duschrinne ACO ShowerDrain M+

Product benefits

  • Flexible for each installation situation
    • Gully 360° rotatable
  • Modular system
  • Free access to the pipe
  • Integrated seal

Product information

  • Made of Plastic
  • Assembly: Modular system in connection with separate channel bodies ShowerDrain M and M+
  • Outlet sockets:
    • Suitable for all push fit pipe socket systems
  • Odour seal: 1-piece with removable submersible pipe
  • Flow rate:
    • 0.4 l/s with 10 mm build-up
    • 0.5 l/s with 20 mm build-up
DescriptionUsed withItem

number
DownloadsRemember
  • ND 40/50
  • Water trap: 50 mm
  • Flow rate: 0,5 l/s (with 20 mm water built-up)
  • Tested to EN 1253-1
  • Installation height: 100 to 128 mm
  • Installation height at
    • ACO ShowerDrain M: 103-128 mm
    • ACO ShowerDrain M+: 105-140 mm
    • ACO ShowerDrain Public: 115-140 mm
    • ACO ShowerFloor: 125-160 mm
9010.81.20
  • ND 40/50
  • Water trap: 30 mm
  • Flow rate: 0,5 l/s (with 20 mm water built-up)
  • Installation height: 80 to 128 mm
  • Installation height at
    • ACO ShowerDrain M: 84-128 mm
    • ACO ShowerDrain M+: 84-140 mm
9010.81.21
  • ND 40
  • Water trap: 25 mm
  • Flow rate: 0,5 l/s (with 20 mm water built-up)
  • Installation height: 54 bis 128 mm
  • Installation height at
    • ACO ShowerDrain M: 56-128 mm
    • ACO ShowerDrain M+: 56-140 mm
9010.81.22
  • ND 50
  • Water trap: 50 mm
  • Tested to EN 1253-1
  • Flow rate: 0,5 l/s (with 20 mm water built-up)
  • Installation height: 15 bis 128 mm
  • Installation height at
    • ACO ShowerDrain M: (15 *) 70-128 mm
    • ACO ShowerDrain M +: (15 *) 70-140 mm
    • ACO ShowerDrain Public: (30 *) 70-140 mm
    • ACO ShowerFloor: 115-160 mm
  • * by shortening the foot (core drilling)
9010.81.23
DescriptionItem

number
  • ND 40/50
  • Water trap: 50 mm
  • Flow rate: 0,5 l/s (with 20 mm water built-up)
  • Tested to EN 1253-1
  • Installation height: 100 to 128 mm
9010.81.20
  • ND 40/50
  • Water trap: 30 mm
  • Flow rate: 0,5 l/s (with 20 mm water built-up)
  • Installation height: 80 to 128 mm
9010.81.21
  • ND 40
  • Water trap: 25 mm
  • Flow rate: 0,5 l/s (with 20 mm water built-up)
  • Installation height: 54 bis 128 mm
9010.81.22
  • ND 50
  • Water trap: 50 mm
  • Tested to EN 1253-1
  • Flow rate: 0,5 l/s (with 20 mm water built-up)
  • Installation height: 15 bis 128 mm
9010.81.23

Removable dirt trap

Suitable for
  • Gullies for Shower Channel
    • ACO ShowerDrain M
    • ACO ShowerDrain B
Description
  • Made from plastic, material PP
  • For retrofitting
  • Weight: 0.1 kg
