Channel body ACO ShowerDrain C, Installation height top edge screed: 80 – 128 mm (200 mm)

Channel body ACO ShowerDrain C, Installation height top edge screed: 80 – 128 mm (200 mm)

Product benefits

  • Minimum installation height
  • Meets requirements of all sound protection levels (SSt I-III in acc. with VDI 4100)
  • Free access to the pipe for optimal cleaning
  • Factory-welded hydro-shaped gully, guarantees permanent tightness
  • Removable foul air trap for optimal cleaning
  • High drainage capacity
Contact
Downloads

Product information

  • Material: Stainless steel, material grade 304
  • Load class: K3
  • Internal channel width: 64 mm
  • Installation height: 92-140 mm (incl. 12 mm frame height)
  • Flow rate:
    • 0.72 l/s (WS50 with 10 mm build-up)
    • 0.91 l/s (WS50 with 20 mm build-up as per EN 1253-1)
  • Outlet socket: Suitable for all push-fit pipe socket systems
  • Socket version: ND 50
  • Foul air trap: 2-part, removable
  • Type of flange: surrounding flange with sealing membrane, surrounding flange, wall flange or without flange
  • Channel body: Pickle passivated
  • Mounting: Ready for installation
  • Sound protection (as standard)
  • Height adjustability: 48 respectively 74 mm using height-adjustable feet (to be ordered as an accessory)
  • Grating variants: Stainless steel design gratings, tileable cover
  • Supplementary components: ACO ShowerStep and ACO EasyStop
DimensionsItem

number		Remember
L1L2B
[mm][mm][mm]
6857451309010.85.206
7858451309010.85.216
8859451309010.85.226
98510451309010.85.236
118512451309010.85.246
6857451309010.85.306
7858451309010.85.316
8859451309010.85.326
98510451309010.85.336
118512451309010.85.346
5856451309010.88.00
6857451309010.88.01
7858451309010.88.02
8859451309010.88.03
98510451309010.88.04
108511451309010.88.05
118512451309010.88.06
5856451229010.88.07
6857451229010.88.08
7858451229010.88.09
8859451229010.88.10
98510451229010.88.11
108511451229010.88.12
118512451229010.88.13
5856451309010.92.00
6857451309010.92.01
7858451309010.92.02
8859451309010.92.03
98510451309010.92.04
108511451309010.92.05
118512451309010.92.06
5856451309010.92.43
6857451309010.92.44
7858451309010.92.45
8859451309010.92.46
98510451309010.88.46
108511451309010.88.47
118512451309010.88.48
5856451229010.92.14
6857451229010.92.16
7858451229010.92.18
8859451229010.92.20
98510451229010.92.22
108511451229010.92.24
118512451229010.92.26
5856451229010.92.15
6857451229010.92.17
7858451229010.92.19
8859451229010.92.21
98510451229010.92.23
108511451229010.92.25
118512451229010.92.27
5856451229010.91.80
6857451229010.91.81
7858451229010.91.82
8859451229010.91.83
98510451229010.91.84
108511451229010.91.85
118512451229010.91.86
585709010.88.14
685709010.88.15
785709010.88.16
885709010.88.17
985709010.88.18
1085709010.88.19
1185709010.88.20
LengthItem

number
[[RESOURCEIM0023149.TIF]][[RESOURCEIM0004408.TIF]]685 mm9010.85.20
[[RESOURCEIM0023149.TIF]][[RESOURCEIM0004408.TIF]]785 mm9010.85.21
[[RESOURCEIM0023149.TIF]][[RESOURCEIM0004408.TIF]]885 mm9010.85.22
[[RESOURCEIM0023149.TIF]][[RESOURCEIM0004408.TIF]]985 mm9010.85.23
[[RESOURCEIM0023149.TIF]][[RESOURCEIM0004408.TIF]]1185 mm9010.85.24
[[RESOURCEIM0023152.TIF]][[RESOURCEIM0004670.TIF]]685 mm9010.85.30
[[RESOURCEIM0023152.TIF]][[RESOURCEIM0004670.TIF]]785 mm9010.85.31
[[RESOURCEIM0023152.TIF]][[RESOURCEIM0004670.TIF]]885 mm9010.85.32
[[RESOURCEIM0023152.TIF]][[RESOURCEIM0004670.TIF]]985 mm9010.85.33
[[RESOURCEIM0023152.TIF]][[RESOURCEIM0004670.TIF]]1185 mm9010.85.34
[[RESOURCEIM0023131.TIF]]585 mm9010.88.00
[[RESOURCEIM0023131.TIF]]685 mm9010.88.01
[[RESOURCEIM0023131.TIF]]785 mm9010.88.02
[[RESOURCEIM0023131.TIF]]885 mm9010.88.03
[[RESOURCEIM0023131.TIF]]985 mm9010.88.04
[[RESOURCEIM0023131.TIF]]1085 mm9010.88.05
[[RESOURCEIM0023131.TIF]]1185 mm9010.88.06
[[RESOURCEIM0023151.TIF]]585 mm9010.88.07
[[RESOURCEIM0023151.TIF]]685 mm9010.88.08
[[RESOURCEIM0023151.TIF]]785 mm9010.88.09
[[RESOURCEIM0023151.TIF]]885 mm9010.88.10
[[RESOURCEIM0023151.TIF]]985 mm9010.88.11
[[RESOURCEIM0023151.TIF]]1085 mm9010.88.12
[[RESOURCEIM0023151.TIF]]1185 mm9010.88.13
[[RESOURCEIM0023133.TIF]]585 mm9010.92.00
[[RESOURCEIM0023133.TIF]]685 mm9010.92.01
[[RESOURCEIM0023133.TIF]]785 mm9010.92.02
[[RESOURCEIM0023133.TIF]]885 mm9010.92.03
[[RESOURCEIM0023133.TIF]]985 mm9010.92.04
[[RESOURCEIM0023133.TIF]]1085 mm9010.92.05
[[RESOURCEIM0023133.TIF]]1185 mm9010.92.06
[[RESOURCEIM0023150.TIF]]585 mm9010.92.43
[[RESOURCEIM0023150.TIF]]685 mm9010.92.44
[[RESOURCEIM0023150.TIF]]785 mm9010.92.45
[[RESOURCEIM0023150.TIF]]885 mm9010.92.46
[[RESOURCEIM0023150.TIF]]985 mm9010.88.46
[[RESOURCEIM0023150.TIF]]1085 mm9010.88.47
[[RESOURCEIM0023150.TIF]]1185 mm9010.88.48
[[RESOURCEIM0023143.TIF]]585 mm9010.92.14
[[RESOURCEIM0023143.TIF]]685 mm9010.92.16
[[RESOURCEIM0023143.TIF]]785 mm9010.92.18
[[RESOURCEIM0023143.TIF]]885 mm9010.92.20
[[RESOURCEIM0023143.TIF]]985 mm9010.92.22
[[RESOURCEIM0023143.TIF]]1085 mm9010.92.24
[[RESOURCEIM0023143.TIF]]1185 mm9010.92.26
[[RESOURCEIM0023132.TIF]]585 mm9010.92.15
[[RESOURCEIM0023132.TIF]]685 mm9010.92.17
[[RESOURCEIM0023132.TIF]]785 mm9010.92.19
[[RESOURCEIM0023132.TIF]]885 mm9010.92.21
[[RESOURCEIM0023132.TIF]]985 mm9010.92.23
[[RESOURCEIM0023132.TIF]]1085 mm9010.92.25
[[RESOURCEIM0023132.TIF]]1185 mm9010.92.27
[[RESOURCEIM0023142.TIF]]585 mm9010.91.80
[[RESOURCEIM0023142.TIF]]685 mm9010.91.81
[[RESOURCEIM0023142.TIF]]785 mm9010.91.82
[[RESOURCEIM0023142.TIF]]885 mm9010.91.83
[[RESOURCEIM0023142.TIF]]985 mm9010.91.84
[[RESOURCEIM0023142.TIF]]1085 mm9010.91.85
[[RESOURCEIM0023142.TIF]]1185 mm9010.91.86
[[RESOURCEIM0023144.TIF]]585 mm9010.88.14
[[RESOURCEIM0023144.TIF]]685 mm9010.88.15
[[RESOURCEIM0023144.TIF]]785 mm9010.88.16
[[RESOURCEIM0023144.TIF]]885 mm9010.88.17
[[RESOURCEIM0023144.TIF]]985 mm9010.88.18
[[RESOURCEIM0023144.TIF]]1085 mm9010.88.19
[[RESOURCEIM0023144.TIF]]1185 mm9010.88.20
Design-Gratings of grindedem stainless steel

Design-Gratings of grindedem stainless steel

ACO ShowerStep – difference wedge

ACO ShowerStep – difference wedge

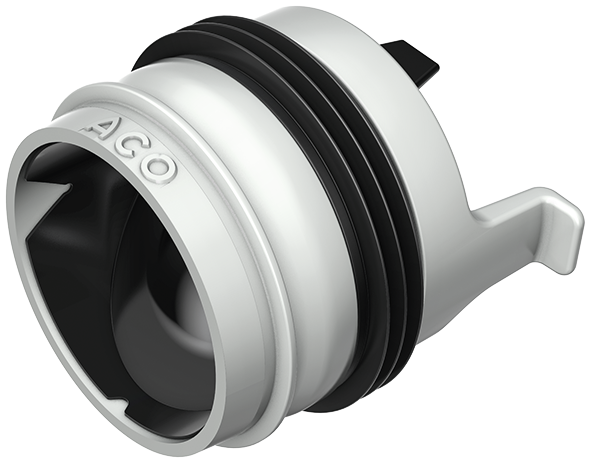

ACO EasyStop

Suitable for
  • ACO ShowerDrain E+; C
Description
  • Prevents drying out of the water seal in the odour trap
  • Reduces the discharge value by 0.25 l/s
  • Material: Plastic with membrane insert and lip seal
  • DN 50
  • Weight: 0.1 kg
  • Rabattgruppe: 6
Item no.
9010.79.24

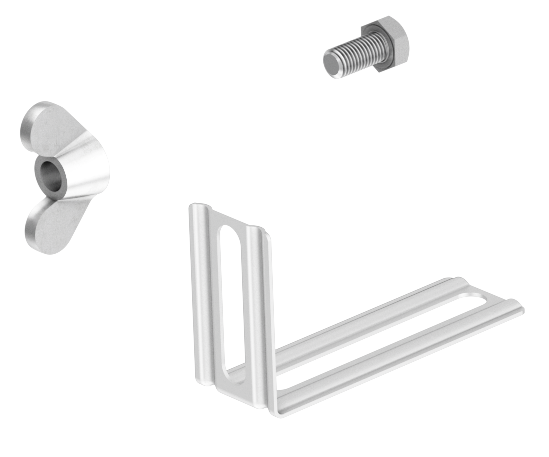

9010.88.56: ACO ShowerDrain C Mounting Bracket

Suitable for
  • Shower channel ACO ShowerDrain C
Item no.
9010.88.56
