Bath gullies MG - Single version

Product benefits

  • Minimal installation height
  • Flange for connecting the composite seal
  • Optimal pipe cleaning access

Product information

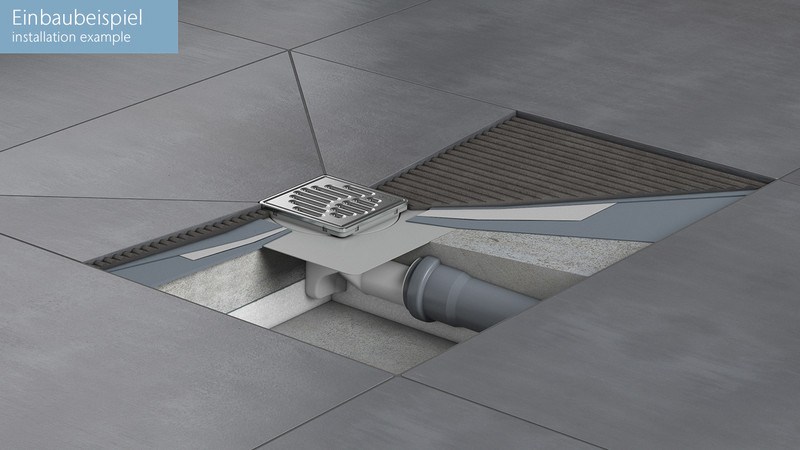

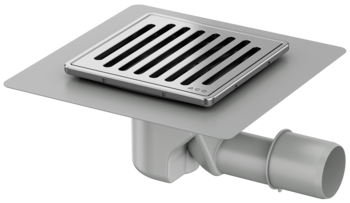

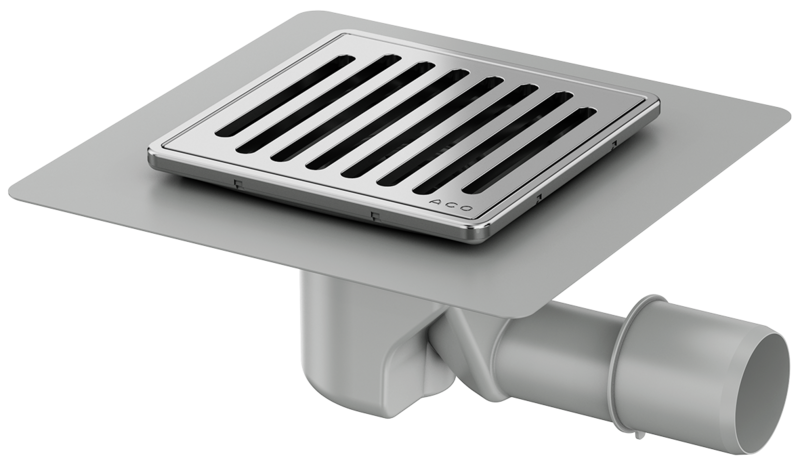

Drain body ACO MG gully:

  • Material: Plastic
  • Flow rates tested according to EN 1253-1:
    • 0,4 l/s with10mm build-up
    • 0,5 l/s with 20mm build-up
  • Foul air trap: one-piece with removable submersible pipe
  • Flange: with surrounding sealing flange 50mm
  • Suitable for: Tile thickness min. 6mm

Top sections ACO MG gully:

  • 100 x 100 mm with slotted grid
  • 150 x 150 mm with slotted grid
  • Stacking frame for designer gratings

Version: Gully body

DescriptionItem

number
DownloadsRemember
  • ND50
  • Water seal: 50mm
  • Fulfills the requirements accoding to EN 1253-1
2259.50.00
  • ND40
  • Water seal: 25mm
  • Installation height: 52mm
2245.25.00
  • ND40/50
  • Water seal: 30mm
  • Installation height: 76mm
2245.30.00
  • ND40/50
  • Water seal: 50mm
  • Installation height: 96mm
  • Fulfills the requirements accoding to EN 1253-1
2245.50.00

Version: Top section

DescriptionItem

number
DownloadsRemember
  • ACO top section 100x100 mm
  • Decorative frame and slotted grate made of stainless steel
  • Including height adjustment + 7 mm
9010.68.06
  • ACO top section 150x150 mm
  • Decorative frame and slotted grate made of stainless steel
  • Incl. Height adjustment + 6 mm
9010.68.07
DescriptionUsed withItem

number
DownloadsRemember
  • Square frame
  • Made of plastic
  • Stainless steel frame, height 26 mm
  • 149 x 149 mm
  • Customer choice of surface
    • Internal size: 121 x 121 mm
    • With stainless steel frame
    • Bearing surface made of plastic
620477
  • Stacking frame for designer gratings, round
  • Made of plastic
  • Frame made of stainless steel
  • ∅ 136 mm
  • Designer gratings
    • Grating diameter: 126 mm
    • Placed loosely
620476
  • ACO top section short
  • Frame V2A for design gratings
  • 149 x 149 mm
  • Design gratings
  • Frame 140x140mm
  • Placed loosely
620498
DescriptionItem

number
  • ND50
  • Water seal: 50mm
  • Fulfills the requirements accoding to EN 1253-1
2259.50.00
  • ND40
  • Water seal: 25mm
  • Installation height: 52mm
2245.25.00
  • ND40/50
  • Water seal: 30mm
  • Installation height: 76mm
2245.30.00
  • ND40/50
  • Water seal: 50mm
  • Installation height: 96mm
  • Fulfills the requirements accoding to EN 1253-1
2245.50.00
  • ACO top section 100x100 mm
  • Decorative frame and slotted grate made of stainless steel
  • Including height adjustment + 7 mm
9010.68.06
  • ACO top section 150x150 mm
  • Decorative frame and slotted grate made of stainless steel
  • Incl. Height adjustment + 6 mm
9010.68.07
  • Square frame
  • Made of plastic
  • Stainless steel frame, height 26 mm
  • 149 x 149 mm
620477
  • Stacking frame for designer gratings, round
  • Made of plastic
  • Frame made of stainless steel
  • ∅ 136 mm
620476
  • ACO top section short
  • Frame V2A for design gratings
  • 149 x 149 mm
620498

Adjustable height

Suitable for
  • Top section made of plastic
    • 5141.29.00 – 5141.32.00
    • 5141.42.00
    • 5141.48.00
    • 620475 – 620477
    • 5141.91.23
Description
  • Made of plastic
  • For height adjustment
    • Per ring by: 6 mm
  • Weight: 0.1 kg

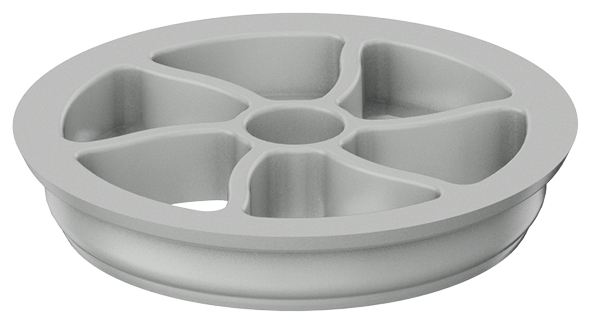

Removable dirt trap

Suitable for
  • Gullies for Shower Channel
    • ACO ShowerDrain M
    • ACO ShowerDrain B
Description
  • Made from plastic, material PP
  • For retrofitting
  • Weight: 0.1 kg
