Top sections for compound sealing for gully body Passavant


Product information

  • Top sections with thin bed seals cover the following types of floor structures
    • Type D: Floor structure with thin bed sealing

Standard type

VersionFrameGratingHeight-

adjusta-

bility

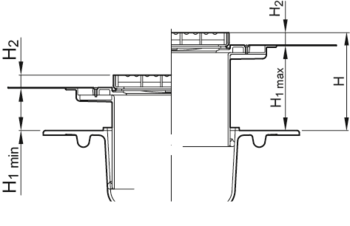

H1min – H1max
DescriptionWeightItem

number
Remember
[mm][mm][mm][kg]
  • Plastic
  • Sealing ring
  • Stainless steel
  • 111 x 111
  • Slot grating
  • Stainless steel
  • 104 x 104
  • K 3
40 – 100
  • Bolted
  • With sliding frame (slides laterally up to 36 mm)
1.35150.91.22
  • Bolted
  • Slip resistant: Class C
  • With sliding frame (slides laterally up to 36 mm)
1.35150.91.33
  • Plastic
  • Sealing ring
  • Stainless steel
  • 148 x 148
  • Slot grating
  • Stainless steel
  • 140 x 140
  • K 3
40 – 100
  • Bolted
  • With sliding frame (slides laterally up to 36 mm)
1.75141.91.52
  • Bolted
  • Slip resistant: Class C
  • With sliding frame (slides laterally up to 36 mm)
1.75141.91.53
  • Plastic
  • Sealing ring
  • Stainless steel
  • 148 x 148
  • Slot grating
  • Stainless steel
  • 140 x 140
  • K 3
40 – 100
  • Lockable
  • With sliding frame (slides laterally up to 36 mm)
1.75141.91.22
  • Lockable
  • Slip resistant: Class C
  • With sliding frame (slides laterally up to 36 mm)
1.75141.91.33
  • Plastic
  • Sealing ring
  • Stainless steel
  • Slot grating
  • Stainless steel
  • K 3
57 – 125
  • Placed loosely
1.35141.29.22
  • Stainless steel
  • 149 x 149
  • Slot grating
  • Stainless steel
  • 140 x 140
  • K 3
57 – 125
  • Lockable
1.35141.30.22
VersionFrameGratingHeight-

adjusta-

bility

H1min – H1max
DescriptionWeightItem

number
  • Plastic
  • Sealing ring
  • Stainless steel
  • 111 x 111 mm
  • Slot grating
  • Stainless steel
  • 104 x 104 mm
  • K 3
40 – 100 mm
  • Bolted
  • With sliding frame (slides laterally up to 36 mm)
1.3 kg5150.91.22
  • Bolted
  • Slip resistant: Class C
  • With sliding frame (slides laterally up to 36 mm)
1.3 kg5150.91.33
  • Plastic
  • Sealing ring
  • Stainless steel
  • 148 x 148 mm
  • Slot grating
  • Stainless steel
  • 140 x 140 mm
  • K 3
40 – 100 mm
  • Bolted
  • With sliding frame (slides laterally up to 36 mm)
1.7 kg5141.91.52
  • Bolted
  • Slip resistant: Class C
  • With sliding frame (slides laterally up to 36 mm)
1.7 kg5141.91.53
  • Plastic
  • Sealing ring
  • Stainless steel
  • 148 x 148 mm
  • Slot grating
  • Stainless steel
  • 140 x 140 mm
  • K 3
40 – 100 mm
  • Lockable
  • With sliding frame (slides laterally up to 36 mm)
1.7 kg5141.91.22
  • Lockable
  • Slip resistant: Class C
  • With sliding frame (slides laterally up to 36 mm)
1.7 kg5141.91.33
  • Plastic
  • Sealing ring
  • Stainless steel
  • Slot grating
  • Stainless steel
  • K 3
57 – 125 mm
  • Placed loosely
1.3 kg5141.29.22
  • Stainless steel
  • 149 x 149 mm
  • Slot grating
  • Stainless steel
  • 140 x 140 mm
  • K 3
57 – 125 mm
  • Lockable
1.3 kg5141.30.22

Extension

Suitable for
  • All upper parts and top sections
    • Socket diameter 125 mm
Description
  • Stainless steel, material grade 304
  • Extension to max. 110 mm
  • With sealing ring
  • Weight: 0.9 kg

Connecting piece

Suitable for
  • All upper parts and top sections
    • Socket diameter 125 mm
Description
  • Plastic
  • Height-adjustability: 35 – 90
  • With seal ring
  • Weight: 0.3 kg

Adapter with inlet

Suitable for
  • All upper parts and top sections
    • Socket diameter 125 mm
Description
  • Plastic
  • With seal
  • With lateral inlet
  • DN 50
  • Weight: 0.4 kg

Removable dirt trap

Suitable for
  • Top sections
    • 5141.71.xx
    • 5141.81.xx
    • 5141.86.xx
    • 5141.87.xx
    • 5141.89.xx
    • 5141.91.xx
    • 5141.92.xx
    • 5141.93.xx
    • 5141.97.xx
    • 5194.10.00
    • 9406.89.xx
    • 9406.92.xx
    • 9406.93.xx
  • Spin flat roof gullies
    • DN 70
  • Green roof and multi-storey parking deck gully tops
Description
  • Made from stainless steel, material grade 304
  • Minimum surface structure above gully adhering flange 50mm
  • Slot size: 8 mm
  • Weight: 0.2 kg

Removable dirt trap

Suitable for
  • Top sections
    • 5141.71.xx
    • 5141.81.xx
    • 5141.86.xx
    • 5141.87.xx
    • 5141.89.xx
    • 5141.91.xx
    • 5141.92.xx
    • 5141.93.xx
    • 5141.97.xx
    • 5194.10.00
    • 9406.89.xx
    • 9406.92.xx
    • 9406.93.xx
  • Spin flat roof gullies
    • DN 70
  • Green roof and multi-storey parking deck gully tops
Description
  • Made from stainless steel, material grade 304
  • Minimum surface structure above gully adhering flange 50mm
  • Slot size: 6 mm according to EC Directive no. 1774/2002
  • Weight: 0.2 kg

Top frame

Suitable for
  • Top sections
    • 5141.97.22
    • 5141.91.52
    • 5141.91.53
    • 9579.60.91
    • 9579.61.91
    • 9579.60.97
Description
  • Plastic
  • For stepwise height adjustment with 2 screws
  • For frame size: 150 x 150 mm
  • For tile thicknesses from: 11 mm or 16 mm
  • Height: 3 mm
  • Weight: 0.1 kg

Top frame

Suitable for
  • Top sections
    • 5141.97.22
    • 5141.91.52
    • 5141.91.53
    • 9579.60.91
    • 9579.61.91
    • 9579.60.97
Description
  • Plastic
  • For stepwise height adjustment with 2 screws
  • For frame size: 150 x 150 mm
  • For tile thicknesses from: 11 mm or 16 mm
  • Height: 9 mm
  • Weight: 0.1 kg

Top frame

Suitable for
  • Top sections
    • 5150.91.00
    • 5150.91.01
    • 5150.91.11
Description
  • Made of plastic
  • With 2 screws
  • For graduated height adjustment
  • For screen size: 110 x 110 mm
  • For tile thickness: from 11 mm
  • Height: 3 mm
  • Weight: 0.1 kg

Top frame

Suitable for
  • Top sections
    • 5150.91.00
    • 5150.91.01
    • 5150.91.11
Description
  • Made of plastic
  • With 2 screws
  • For graduated height adjustment
  • For screen size: 110 x 110 mm
  • For tile thickness: from 11 mm
  • Height: 9 mm
  • Weight: 0.1 kg

Infiltration ring

Suitable for
  • All Passavant top sections
    • DN 50 – DN 100
Description
  • As an infiltration ring between the top section and body
  • Ring colour: grey
  • Weight: 0.1 kg

Sealing ring

Suitable for
  • All Passavant top sections
    • DN 50 – DN 100
Description
  • As a seal between the top section and body
  • Ring colour: black
  • Weight: 0.1 kg

Adjustable height

Suitable for
  • Top section made of plastic
    • 5141.29.00 – 5141.32.00
    • 5141.42.00
    • 5141.48.00
    • 620475 – 620477
    • 5141.91.33
Description
  • Made of plastic
  • For height adjustment
    • Per ring by: 6 mm
  • Weight: 0.1 kg

Removable dirt trap

Suitable for
  • Top sections
    • 5141.22.xx
    • 5141.23.xx
    • 5141.29.xx
    • 5141.30.xx
    • 9579.40.81
    • 9579.41.81
    • 9579.40.87
    • 9579.41.87
    • 9579.60.91
    • 9579.61.91
Description
  • Made of plastic
  • Weight: 0.1 kg
