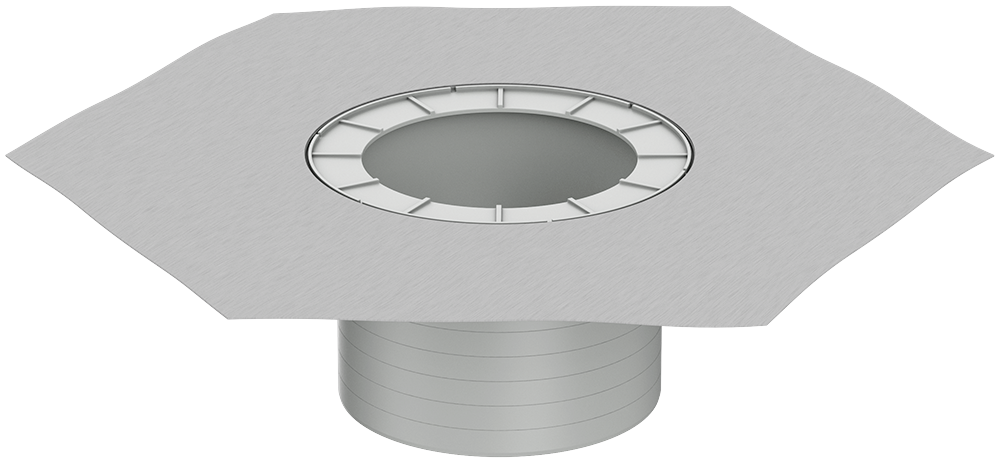

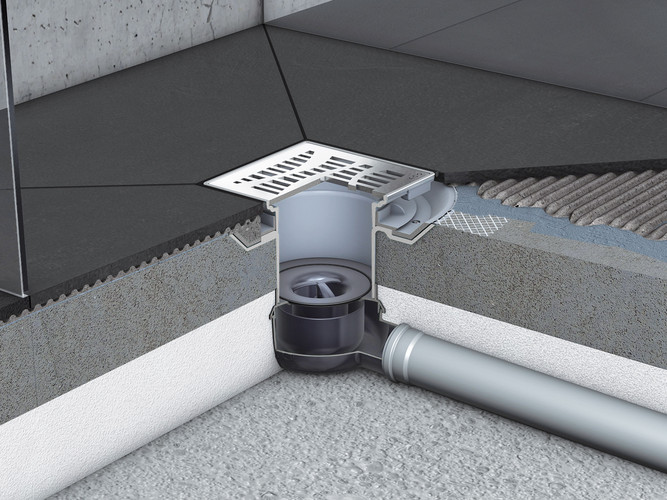

Bath outlets Easyflow (DN 50)
Product benefits
- Retrofit clamping flange
- Optimum cleaning option
- Adjustable height thin bed seal
Product information
- Gully bodies DN 50
- Made of plastic (Polypropylen)
- Tested to DIN EN 1253
- With bracket/connecting rim
- With removable foul air trap
- Water trap depth: 50 mm
- With integrated seal to seal the flow gap between gully body and top section
- With protective cover added during installation
- Suitable top sections
Fire protection
Fire resistance class R30 – R120 tested according abG Z-19.53.2442
Without lateral inlet
Design-Gratings
Top sections Designgratings for gully body Easyflow
Top sections standard for gully body Easyflow
Top sections for compound sealing for gully body Easyflow
Top sections with optional surface for gully body Easyflow
Extension
Suitable for
- All Easyflow floor drains
- Top sections
- Socket diameter 125 mm
- Walk-in with gully sockets
Description
- Made of plastic
- Suitable for taking plastic top sections and clamping flanges
- With lip seal
- For deeper installation of floor gullies
- Weight: 0.3 kg
- Rabattgruppe: 2
Compressed seal flange
Suitable for
- All Easyflow floor drains
Description
- Plastic flange
- Loose flange made from stainless steel
- Suitable for taking sealants foils added on-site for sealing layers for point drainage
- Weight: 0.6 kg
- Rabattgruppe: 2
Fire protection set
Suitable for
- Floor gullies, Easyflow
- DN 50
- Socket inclination: 90°
Description
- Fire and smoke blocker for subsequent fire protection equipment of Easyflow gully bodies
- Discharge value of the gully body reduces by 0.5 l/s in use
- Water seal height 50 mm
- Consisting of
- Odour trap with heat shield
- Fire protection cartridge
- German approval
- AbZ. Z‑19.17‑2159
- abG: Z-19.53-2442
- Weight: 0.2 kg
- Rabattgruppe: 2
Fit-in installation set
Suitable for
- Floor gullies, Easyflow
- Socket inclination: 90°
- DN 50
Description
- Non-combustible
- Building material class A1
- For mortar-free installation in core drills: Ø 225 mm
- Fit-in dimensions
- Ø: 215 mm
- Height: 139 mm
- German approval
- AbZ. Z‑19.17‑2159
- abG: Z-19.53-2442
- Weight: 3.1 kg
- Rabattgruppe: 2
Odour stop
Suitable for
- Floor gullies, Easyflow
- Flatline
- DN 50
Description
- Prevents unpleasant odours from the sewage system, irrespective of the water seal height
- Weight: 0.1 kg
- Rabattgruppe: 2
Odour stop
Suitable for
- Floor gullies, Easyflow
- Standard
- DN 50
Description
- Prevents unpleasant odours from the sewage system, irrespective of the water seal height
- Weight: 0.1 kg
- Rabattgruppe: 2
Top section Easyflow
Description
- Rabattgruppe: 2
Adjustable height
Description
- Rabattgruppe: 2
Top frame with grating
Description
- Rabattgruppe: 2
Adjustable height
Description
- Rabattgruppe: 2
Top frame with grating
Description
- Rabattgruppe: 2
