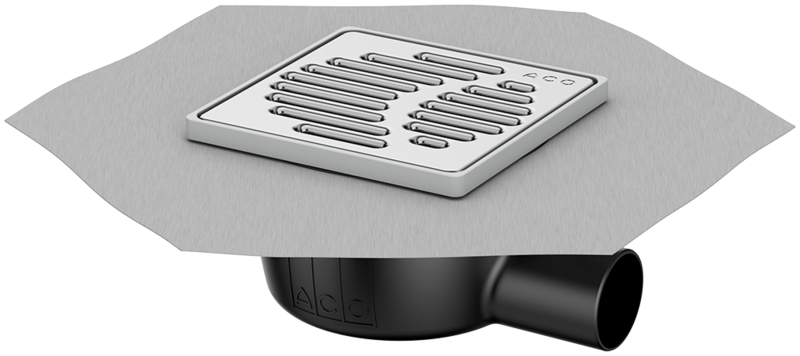

Complete gully - ACO Sanitary Gully Easyflow+

Product benefits

Minimal installation height: 70 mm
Designed for different tile heights
All-in-one-box products for most common installation situations
Flexible adaption to the tile layout

Product information

Material: Plastic
Socket version: ND50
Flow rates according to EN 1253-1:
- 0.9 l/s (WS50 with 20mm build-up)
- 0.7 l/s (WS50 with 10mm build-up)
- 0.8 l/s (WS30 with 20mm build-up)
- 0.6 l/s (WS30 with 10mm build-up)
Foul air trap: one-piece, removable
Incl. protective top cover
Height adjustability: stufenweise höhenverstellbar
With top section, made of plastic
With grating, made of stainless steel
- Load class: K3
Supplementary components:
- Odour stop

Fire protection

Fire resistance class R30 – R120 tested according AbZ: Z-19.17-1887

	Nominal width	Version	Recess	Frame	Grating	Description	Weight	Item number	Downloads	Remember
	Nominal width	Version	[mm]	Frame	[mm]	[l/s]	[kg]	Item number	Downloads	Remember
	DN 50	Standard	240 x 240	Plastic	Slot grating Stainless steel 100 x 100 Placed loosely	Socket inclination: 90° Flow rate: 1.1 Water trap depth: 50 mm	0.6	2019.51.91
	DN 50	Standard	240 x 300	Plastic	Slot grating Stainless steel 100 x 100 Placed loosely	Socket inclination: 1,5° Flow rate: 0.9 Water trap depth: 50 mm	0.6	2015.51.91
	DN 50	Flatline	240 x 300	Plastic	Slot grating Stainless steel 100 x 100 Placed loosely	Socket inclination: 1,5° Flow rate: 0.8 Water trap depth: 30 mm	0.6	2015.31.91
	DN 50	Standard	240 x 240	Plastic	Slot grating Stainless steel 150 x 150 Placed loosely	Socket inclination: 90° Flow rate: 1.1	0.7	2019.55.91
	DN 50	Standard	240 x 300	Plastic	Slot grating Stainless steel 150 x 150 Placed loosely	Socket inclination: 1,5° Flow rate: 0.9	0.7	2015.55.91
	DN 50	Flatline	240 x 300	Plastic	Slot grating Stainless steel 150 x 150 Placed loosely	Socket inclination: 1,5° Flow rate: 0.8	0.7	2015.35.91

	Nominal width	Version	Recess	Frame	Grating	Description	Weight	Item number	Downloads	Remember
	Nominal width	Version	[mm]	Frame	[mm]	[l/s]	[kg]	Item number	Downloads	Remember
	DN 50	Standard	240 x 330	Plastic	Slot grating Stainless steel 100 x 100 Placed loosely	Socket inclination: 1,5° Flow rate: 0.9 Water trap depth: 50 mm	0.7	2515.51.91
	DN 50	Flatline	240 x 330	Plastic	Slot grating Stainless steel 100 x 100 Placed loosely	Socket inclination: 1,5° Flow rate: 0.8 Water trap depth: 30 mm	0.7	2515.31.91
	DN 50	Standard	240 x 330	Plastic	Slot grating Stainless steel 150 x 150 Placed loosely	Socket inclination: 1,5° Flow rate: 0.9	0.8	2515.55.91
	DN 50	Flatline	240 x 330	Plastic	Slot grating Stainless steel 150 x 150 Placed loosely	Socket inclination: 1,5° Flow rate: 0.8	0.8	2515.35.91

		Version	Nominal width	Recess	Frame	Grating	Description	Weight	Item number
	Without lateral inlet	Standard	DN 50	240 x 240 mm	Plastic	Slot grating Stainless steel 100 x 100 mm Placed loosely	Socket inclination: 90° Flow rate: 1.1 l/s Water trap depth: 50 mm With	0.6 kg	2019.51.91
	Without lateral inlet	Standard	DN 50	240 x 300 mm	Plastic	Slot grating Stainless steel 100 x 100 mm Placed loosely	Socket inclination: 1,5° Flow rate: 0.9 l/s Water trap depth: 50 mm With	0.6 kg	2015.51.91
	Without lateral inlet	Flatline	DN 50	240 x 300 mm	Plastic	Slot grating Stainless steel 100 x 100 mm Placed loosely	Socket inclination: 1,5° Flow rate: 0.8 l/s Water trap depth: 30 mm With	0.6 kg	2015.31.91
	With lateral inlet	Standard	DN 50	240 x 330 mm	Plastic	Slot grating Stainless steel 100 x 100 mm Placed loosely	Socket inclination: 1,5° Flow rate: 0.9 l/s Water trap depth: 50 mm With	0.7 kg	2515.51.91
	With lateral inlet	Flatline	DN 50	240 x 330 mm	Plastic	Slot grating Stainless steel 100 x 100 mm Placed loosely	Socket inclination: 1,5° Flow rate: 0.8 l/s Water trap depth: 30 mm With	0.7 kg	2515.31.91
	Without lateral inlet	Standard	DN 50	240 x 240 mm	Plastic	Slot grating Stainless steel 150 x 150 mm Placed loosely	Socket inclination: 90° Flow rate: 1.1 l/s With	0.7 kg	2019.55.91
	Without lateral inlet	Standard	DN 50	240 x 300 mm	Plastic	Slot grating Stainless steel 150 x 150 mm Placed loosely	Socket inclination: 1,5° Flow rate: 0.9 l/s With	0.7 kg	2015.55.91
	Without lateral inlet	Flatline	DN 50	240 x 300 mm	Plastic	Slot grating Stainless steel 150 x 150 mm Placed loosely	Socket inclination: 1,5° Flow rate: 0.8 l/s With	0.7 kg	2015.35.91
	With lateral inlet	Standard	DN 50	240 x 330 mm	Plastic	Slot grating Stainless steel 150 x 150 mm Placed loosely	Socket inclination: 1,5° Flow rate: 0.9 l/s With	0.8 kg	2515.55.91
	With lateral inlet	Flatline	DN 50	240 x 330 mm	Plastic	Slot grating Stainless steel 150 x 150 mm Placed loosely	Socket inclination: 1,5° Flow rate: 0.8 l/s With	0.8 kg	2515.35.91

Design-Gratings

Design-Gratings

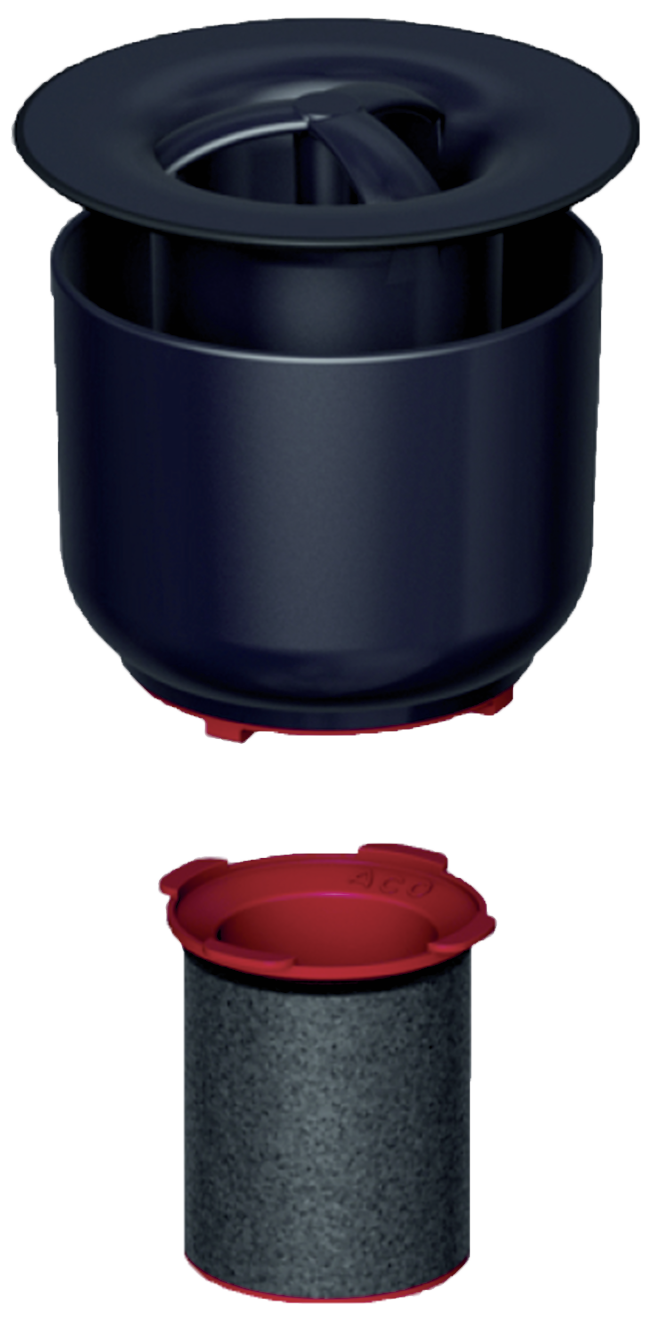

Fire protection set

Suitable for

Floor gullies, Easyflow
- DN 50
- Socket inclination: 90°

Description

Fire and smoke blocker for subsequent fire protection equipment of Easyflow gully bodies
Discharge value of the gully body reduces by 0.5 l/s in use
Water seal height 50 mm
Consisting of
- Odour trap with heat shield
- Fire protection cartridge
German approval
- AbZ. Z‑19.17‑2159
- abG: Z-19.53-2442
Weight: 0.2 kg

Item no.
2520.00.00

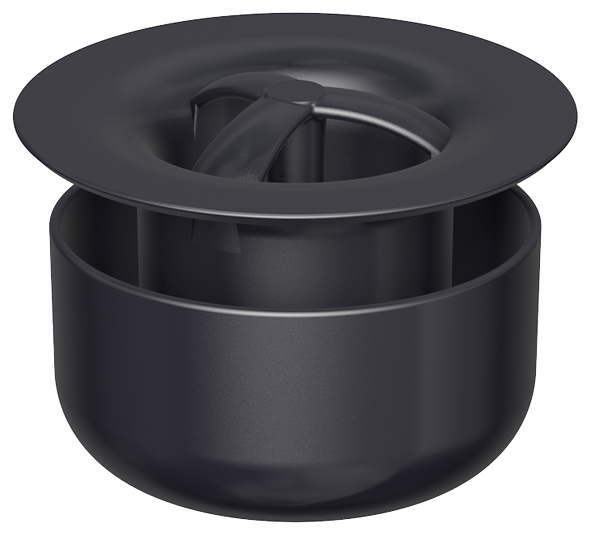

Odour stop

Suitable for

Floor gullies, Easyflow
- Standard
- DN 50

Description

Prevents unpleasant odours from the sewage system, irrespective of the water seal height
Weight: 0.1 kg

Item no.
2000.00.06

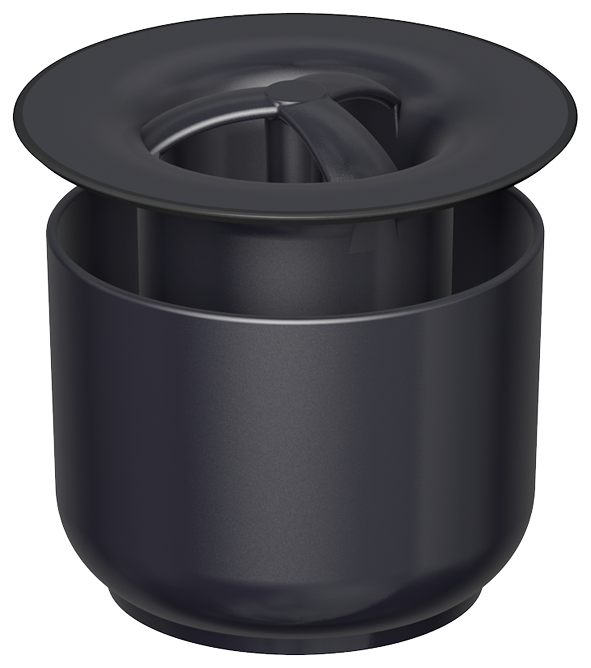

Odour stop

Suitable for

Floor gullies, Easyflow
- Flatline
- DN 50

Description

Prevents unpleasant odours from the sewage system, irrespective of the water seal height
Weight: 0.1 kg

Item no.
2000.00.05

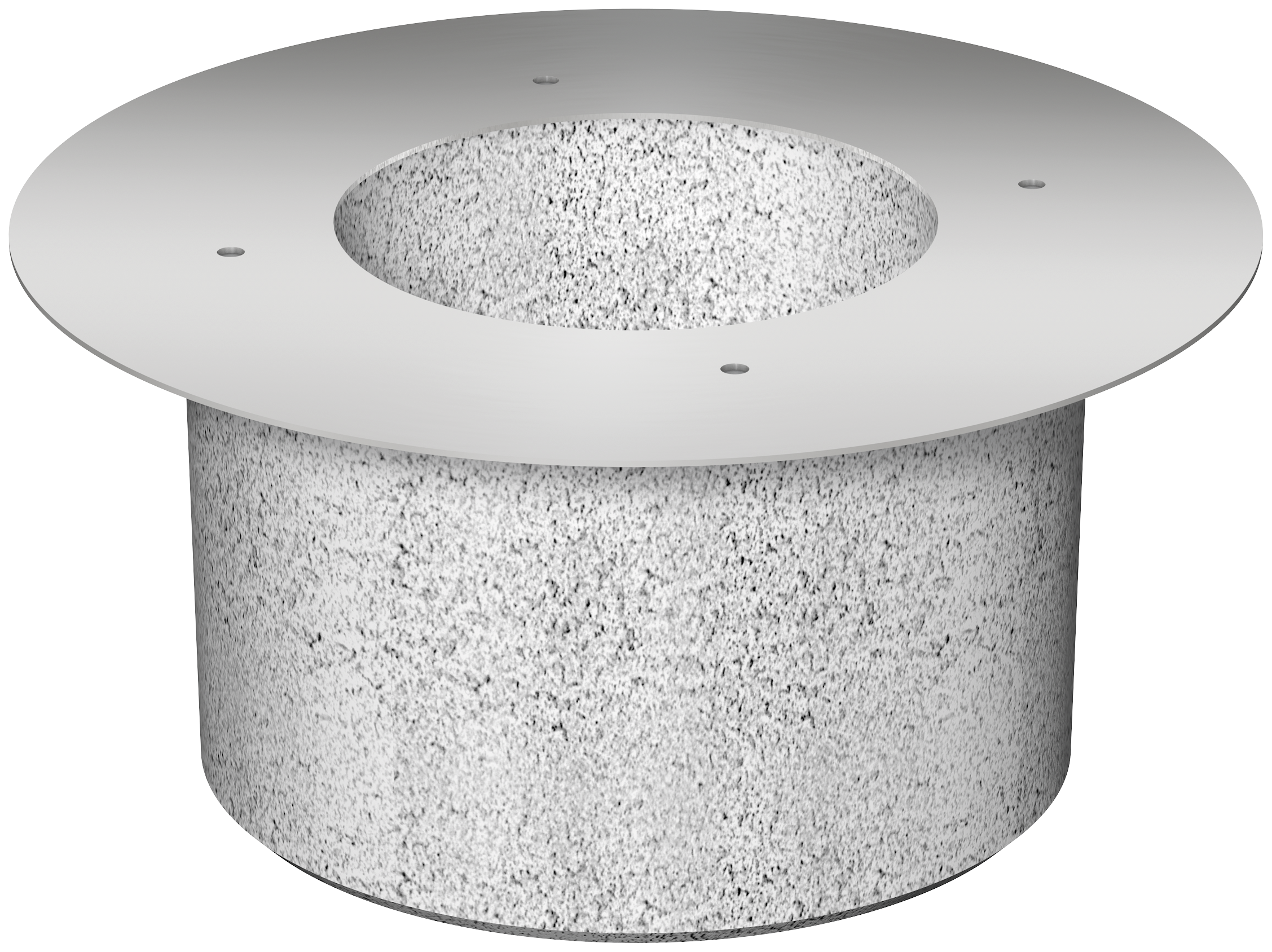

Fit-in installation set

Suitable for

Floor gullies, Easyflow
- Socket inclination: 90°
DN 50

Description

Non-combustible
- Building material class A1
For mortar-free installation in core drills: Ø 225 mm
Fit-in dimensions
- Ø: 215 mm
- Height: 139 mm
German approval
- AbZ. Z‑19.17‑2159
- abG: Z-19.53-2442
Weight: 3.1 kg

Item no.
9390.08.40

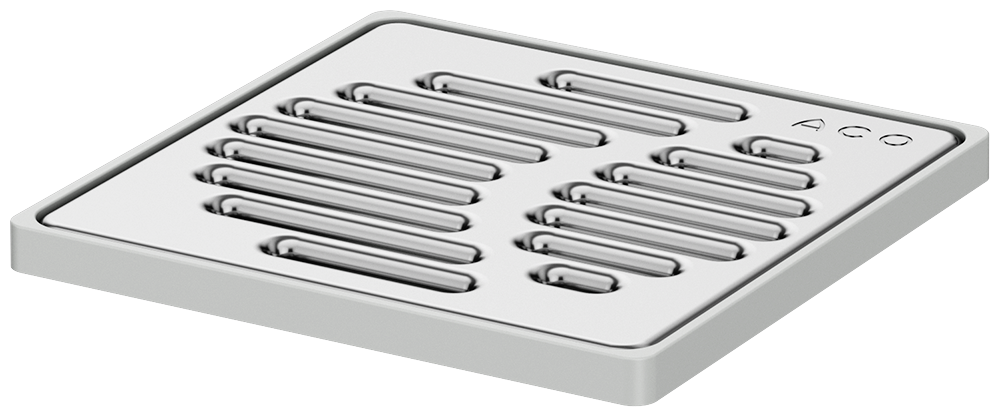

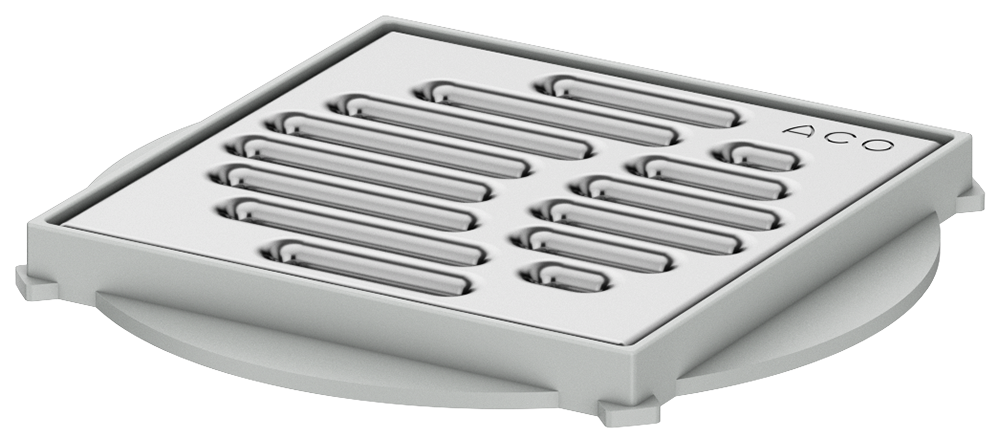

Top frame with grating

Item no.
2019.01.00

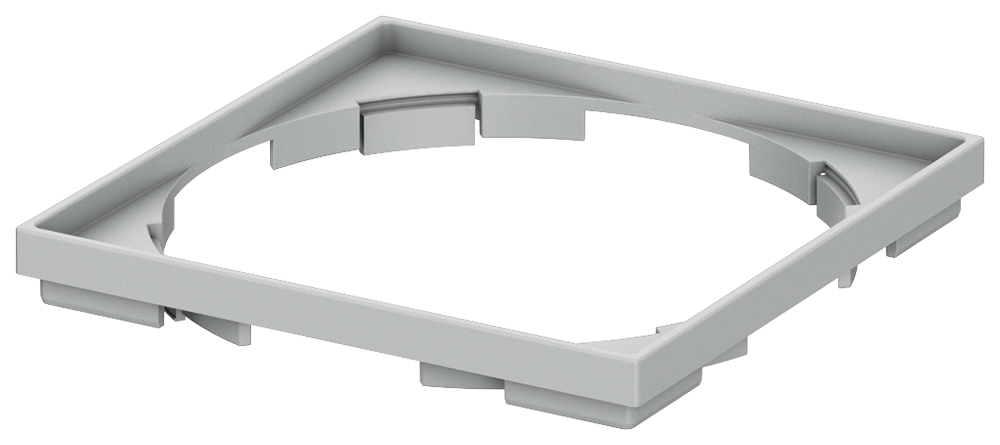

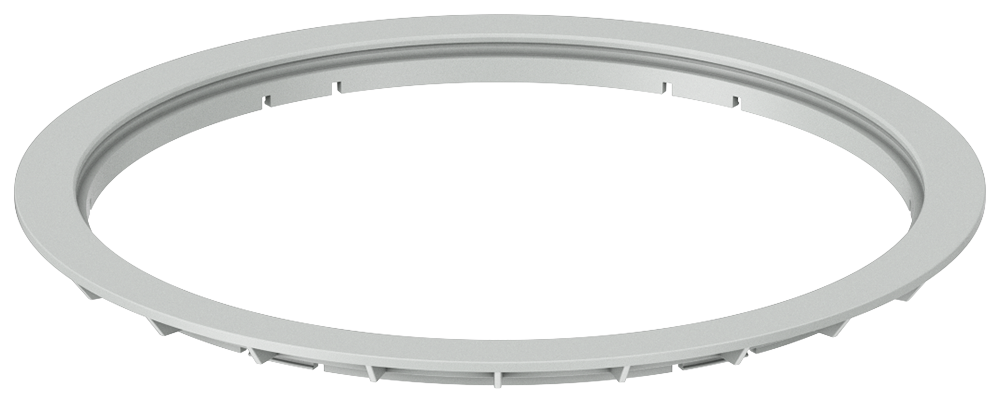

Adjustable height

Item no.
2019.01.15

Top frame with grating

Item no.
2019.05.00

Adjustable height

Item no.
2019.05.15

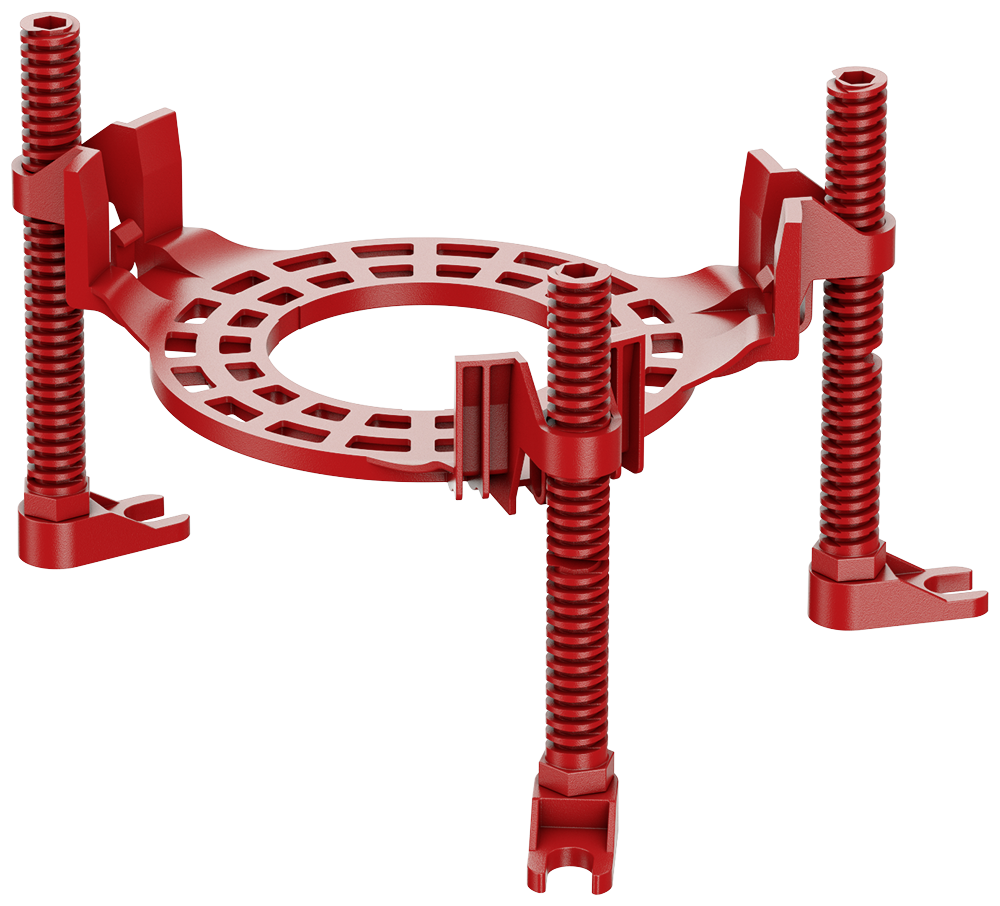

2019.10.99: ACO Montagehilfe Easyflow PLus

Item no.
2019.10.99

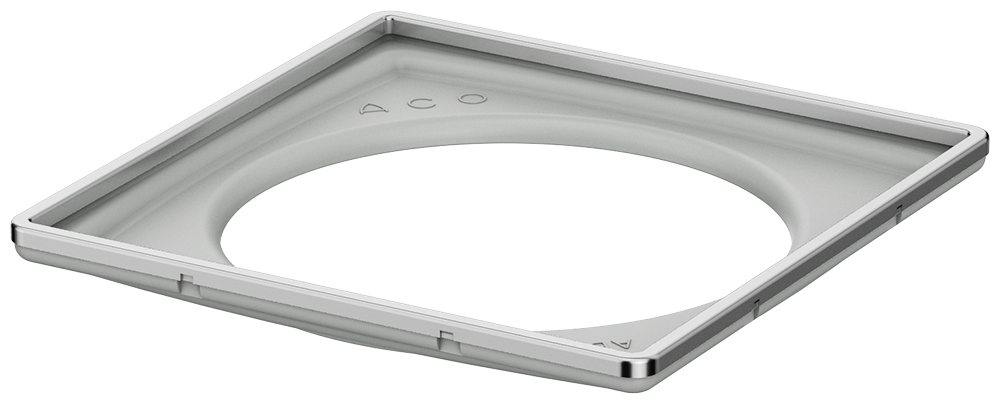

Top frame

Suitable for

ACO Sanitary Gully Easyflow+ and design gratings

Description

Top frame (plastic)
Frame (stainless steel)
140x140mm
Weight: 0.1 kg

Item no.
5141.80.10
