bathroom gullies Passino

Contact
Downloads

Product information

  • Material:
    • Plastic (gully element)
    • Stainless steel (frame and grating)
  • Load class after grate design: K3 or L15
  • Spigot variants: DN 100/ DN 125
  • Socket inclination: 90°
  • Discharge value
    • 0.83l/s (with 20 mm build-up according to DIN EN 1253-1)
  • Odour trap: two-piece, removable
  • Assembly: ready to install
  • Height-adjustable: depending on the floor structure

Without lateral inlet

Nominal widthFrameGratingDescriptionItem

number		Remember
[mm][mm][l/s]
DN 100
  • Stainless steel
  • 104 x 104
  • Slot grating
  • Electropolished stainless steel
  • 95 x 95
  • K 3
  • Placed loosely
  • Socket inclination: 0°
  • Flow rate: 0.83
  • 50 mm
2310.87.00
DN 100
  • Stainless steel
  • 104 x 104

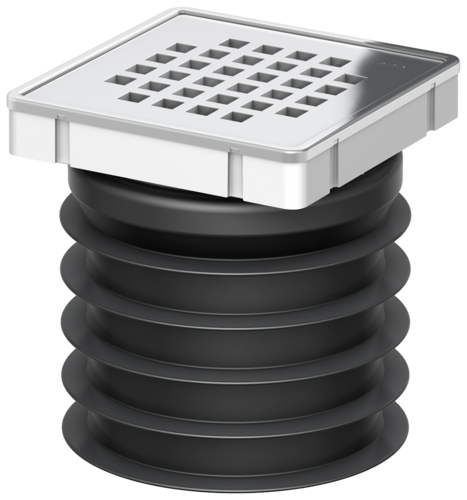

  • Quadrato
  • Electropolished stainless steel
  • 95 x 95
  • L 15
  • Placed loosely
  • Socket inclination: 0°
  • Flow rate: 0.83
  • 50 mm
2310.87.50
DN 125
  • Stainless steel
  • 104 x 104
  • Slot grating
  • Electropolished stainless steel
  • 95 x 95
  • K 3
  • Placed loosely
  • Socket inclination: 0°
  • Flow rate: 0.83
  • 50 mm
2325.87.00
DN 125
  • Stainless steel
  • 104 x 104
  • Quadrato
  • Electropolished stainless steel
  • 95 x 95
  • L 15
  • Placed loosely
  • Socket inclination: 0°
  • Flow rate: 0.83
  • 50 mm
2325.87.50
Nominal widthFrameGratingDescriptionItem

number
Without lateral inletDN 100
  • Stainless steel
  • 104 x 104 mm
  • Slot grating
  • Electropolished stainless steel
  • 95 x 95 mm
  • K 3
  • Placed loosely
  • Socket inclination: 0°
  • Flow rate: 0.83 l/s
  • 50 mm
  • With
2310.87.00
Without lateral inletDN 100
  • Stainless steel
  • 104 x 104 mm
  • Quadrato
  • Electropolished stainless steel
  • 95 x 95 mm
  • L 15
  • Placed loosely
  • Socket inclination: 0°
  • Flow rate: 0.83 l/s
  • 50 mm
  • With
2310.87.50
Without lateral inletDN 125
  • Stainless steel
  • 104 x 104 mm
  • Slot grating
  • Electropolished stainless steel
  • 95 x 95 mm
  • K 3
  • Placed loosely
  • Socket inclination: 0°
  • Flow rate: 0.83 l/s
  • 50 mm
  • With
2325.87.00
Without lateral inletDN 125
  • Stainless steel
  • 104 x 104 mm
  • Quadrato
  • Electropolished stainless steel
  • 95 x 95 mm
  • L 15
  • Placed loosely
  • Socket inclination: 0°
  • Flow rate: 0.83 l/s
  • 50 mm
  • With
2325.87.50
