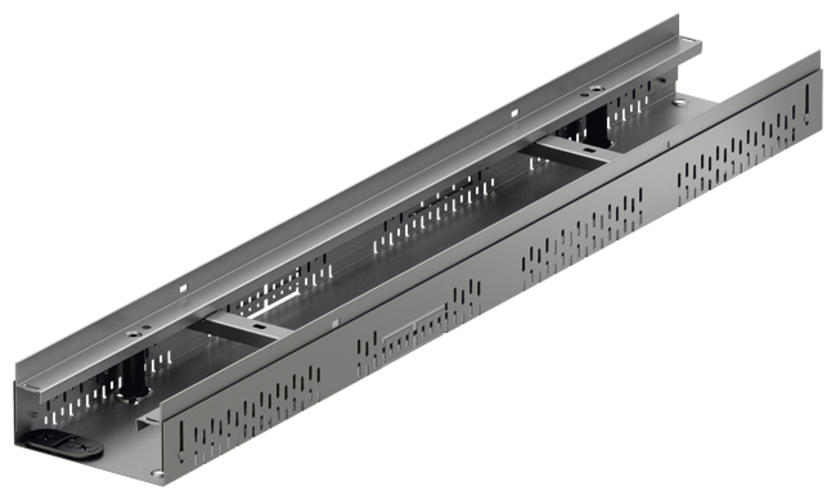

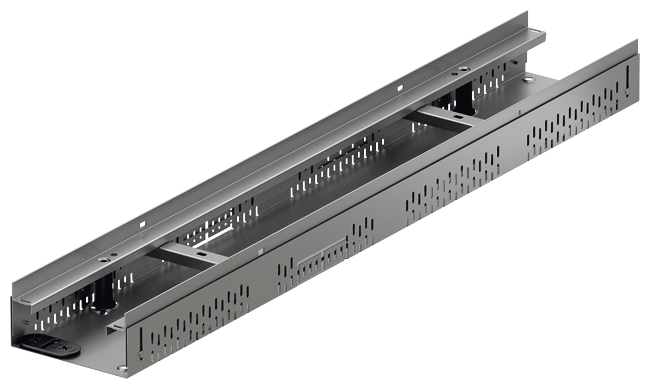

Channel body height-adjustable

Profiline 2 701257

Dimensions		Item number	Downloads	Remember
Length	Width
[mm]	[mm]
1000	156	3006645
500	156	3006646
1000	156	3006647
500	156	3006648
1000	156	3006649
500	156	3006650

Dimensions		Item number
Length	Width	Item number
1000 mm	156 mm	3006645
500 mm	156 mm	3006646
1000 mm	156 mm	3006647
500 mm	156 mm	3006648
1000 mm	156 mm	3006649
500 mm	156 mm	3006650

Gratings for height-adjustable channel bodies

Gratings for height-adjustable channel bodies

Variable corner element

Item no.
3009229

Centre compensation element

Item no.
3009157

Centre compensation element

Item no.
3009160

Centre compensation element

Item no.
3009163

End compensation element

Item no.
3009158

End compensation element

Item no.
3009161

End compensation element

Suitable for

Typ III höhenverstellbar 108 - 168 mm

Item no.
3009164

End cap

Item no.
3009159

End cap

Item no.
3009162

End cap

Item no.
3009165
