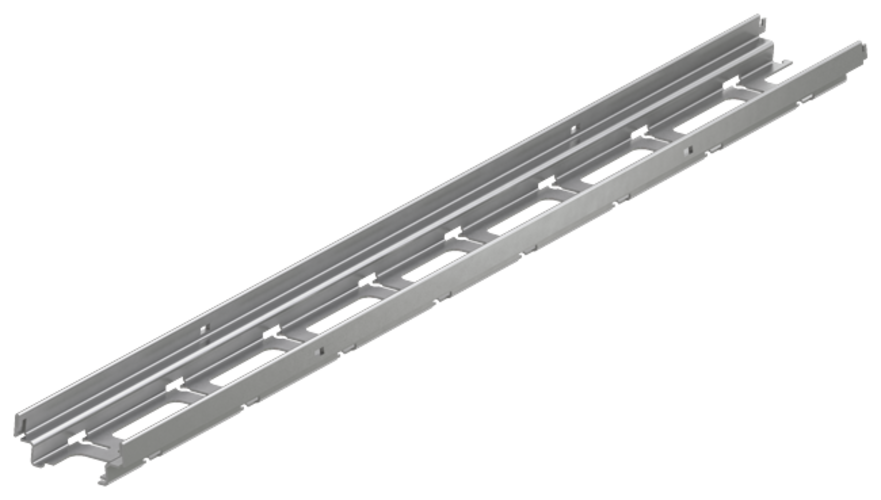

Frameline Channel Body - St 467197

frame elevated

Product benefits

  • Application according to "Flat Roof Guidelines"
  • Enables barrier-free door constructions
  • Quick installation due to click connection
  • Individually height adjustable 60 - 120 mm
  • Particularly suitable for elevated coverings and prefabricated concrete elements

Product information

  • Alle Ausführungen sind begehbar und rollstuhlbefahrbar
  • Separate Kiesleiste erforderlich
  • Ohne Abdeckung
  • Einfache Verbindung
DescriptionDimensionsWeightItem

number		Remember
LengthWidthHeight
[mm][mm][mm][kg]
frame elevated1000106402.703002700
500106401.303002701
1000135402.903002702
500135401.403002703
1000162403.003002704
500162401.503002705
1000206403.203002706
500206401.603002707
DescriptionDimensionsWeightItem

number
LengthWidthHeight
frame elevated1000 mm106 mm40 mm2.70 kg3002700
frame elevated500 mm106 mm40 mm1.30 kg3002701
frame elevated1000 mm135 mm40 mm2.90 kg3002702
frame elevated500 mm135 mm40 mm1.40 kg3002703
frame elevated1000 mm162 mm40 mm3.00 kg3002704
frame elevated500 mm162 mm40 mm1.50 kg3002705
frame elevated1000 mm206 mm40 mm3.20 kg3002706
frame elevated500 mm206 mm40 mm1.60 kg3002707
