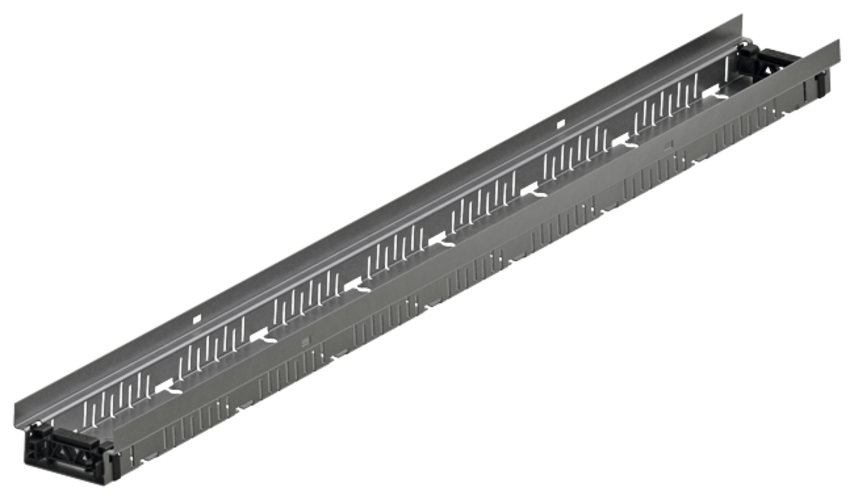

Frameline C Channel Body - Galvanized Steel 467187

Product benefits

Application according to "Flat Roof Guidelines"
Enables barrier-free door constructions
Quick installation due to click connection
Applicable with a fixed height or equipped with height-adjustable feet
Particularly suitable as a height-adjustable channel

Product information

All versions are walkable and wheelchair-accessible
A separate gravel strip is possible but not needed
Coverless
Easy to connect

Dimensions			Weight	Item number	Downloads	Remember
Length	Width	Height	Weight
[mm]	[mm]	[mm]	[kg]
1000	100	50	2.10	3002708
500	100	50	1.00	3002709
1000	135	50	2.40	3002710
500	135	50	1.20	3002711
1000	156	50	2.70	3002712
500	156	50	1.30	3002713
1000	200	50	3.20	3002714
500	200	50	1.70	3002715

Dimensions			Weight	Item number
Length	Width	Height	Weight	Item number
1000 mm	100 mm	50 mm	2.10 kg	3002708
500 mm	100 mm	50 mm	1.00 kg	3002709
1000 mm	135 mm	50 mm	2.40 kg	3002710
500 mm	135 mm	50 mm	1.20 kg	3002711
1000 mm	156 mm	50 mm	2.70 kg	3002712
500 mm	156 mm	50 mm	1.30 kg	3002713
1000 mm	200 mm	50 mm	3.20 kg	3002714
500 mm	200 mm	50 mm	1.70 kg	3002715
