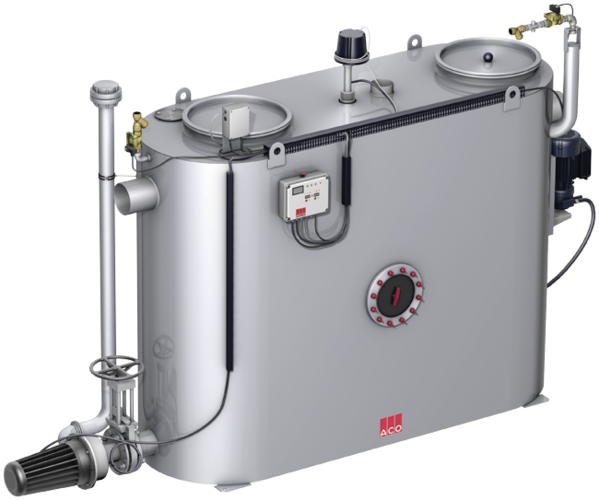

Starch separator FapuJet-S-OAP extension stage 3
Product benefits
- Odour-free emptying, cleaning and filling
- Pre- and post-cleaning times can be set individually
- Hydromechanical high-pressure cleaning – only a cold-water connection required
- For odour-free direct emptying
- Small delivery dimensions
- Low weight
Product information
- Starch separators
- With integrated settlement chamber
- With hydro-mechanical internal cleaning and disposal pump
- To be installed indoors, free-standing
- Stainless steel, material grade 316
- Automatic high-pressure internal cleaning with pump
- Nominal pressure: 175 bar
- Capacity: 13 l/min
- Chopping, mixing, rinsing in one process
- Standard control with group fault reporting
- Disposal pump with free flow impeller for settlement chamber and separating compartment:
- Motor power: 3.0 kW/2850 rpm
- Delivery performance: 20 m³/h at 1.0 bar medium delivery head
- Draining connection, fire hose quick coupling B 2½"
- Stop valve upstream of disposal pump
- With spray attachment (on-site industrial water connection ¾")
- With filling device ( ¾") and magnetic valve for automatic refilling
- With viewing window and wiper
- With suction and emptying sump with drain plug socket 1½" with plug
- Oval construction without separating wall (ideal for ease of cleaning)
- With 2 odour proof maintenance openings, diameter:
- Diameter: 300 mm for NS 0.5 – 1
- Diameter: 500 mm for NS 5.5 – 2
- Electrical connector: 440 V/50 Hz/6.9 kW
- Operating side: right/left
Infobox
Note: Further extensions possible (base version, extension level 1 – 3) on request.

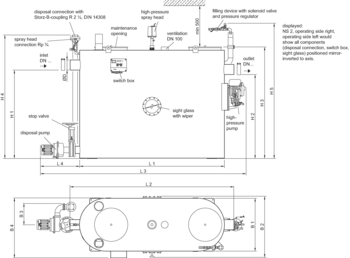

| Nominal size | Dimensions | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | H1 | H2 | H3 | H4 | H5 | B1 | B2 | B3 | B4 | D | |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |
| NS 0.5 | 1440 | 1640 | 2430 | 650 | 1040 | 970 | 1300 | 1500 | 1680 | 620 | 750 | 370 | 730 | 110 |
| NS 1 | 1750 | 1950 | 2740 | 650 | 1190 | 1120 | 1450 | 1650 | 1830 | 680 | 810 | 370 | 790 | 110 |
| NS 2 | 2280 | 2580 | 3270 | 650 | 1390 | 1320 | 1750 | 1950 | 2130 | 840 | 970 | 370 | 950 | 160 |
Message system with GSM module
Suitable for
- All grease separators
- Grease layer thickness measuring device
- Pre-tank plants
- Technical processing systems
- Quatrix-K backflow preventer type 3F
- Sinkamat-K (underfloor) duo
- Muli lifting units
- Pumping stations
- Installation sets
Description
- Parameter via app (Android & iOs)
- Mains-independent alarm via 12V lead-gel battery
- Optical and acoustic alarm message
- Freely configurable inputs
- 6 digital inputs with LED status display
- 1 analogue
- 1 alarm output 12 V
- Alarm forwarding via SMS to mobile phones
- For mounting outside the hazardous area
- Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
- Protective doctor: IP54
- Operating voltage: 230 V/AC 50/60 Hz
- Weight: 2 kg
- Rabattgruppe: 12
Remote control
Suitable for
- Grease separator
- LipuJet-P OA/OAP/RA/RAP
- LipuJet-S OA/OAP/RA/RAP
- LipuMax-P-DA
- LipuSmart-P-OA/OAP
- Starch separator FapuJet
Description
- For internal fitting or fitting in connection boxes
- Control line without protective conductor on-site
- Up to 50 m: 7 x 1.0 mm²
- 50 – 200 m 7 x 1.5 mm²
- Weight: 1 kg
- Rabattgruppe: 11
Connection box
Suitable for
- Grease separator
- Starch separators
- LipuLift-P-D/-DA/-DAP
Description
- For disposal connection, pendulum gas line (if necessary) and remote control
- From stainless steel, material grade 304
- "Surface mounted” version
- Glass beaded front
- Lockable door, left limit stop
- Dimensions W x H x D: 300 x 725 x 160 mm
- Weight: 10 kg
- Rabattgruppe: 11
In-wall frame
Suitable for
- Connection box
- 7601.80.24
- LipuLift-P-D/-DA/-DAP
Description
- From stainless steel, material grade 304
- "In-wall” version
- Glass beaded front
- Dimension W x H x D:
- 405 x 830 x 30 mm
- Weight: 2.1 kg
- Rabattgruppe: 11
Connection box
Suitable for
- Grease separators
- Starch separators
- LipuLift-P-D/-DA/-DAP
Description
- For evacuation connection and remote control
- Made from stainless steel, material grade 304
- Fixing: "On wall"
- Dimensions (width x height x depth): 500 x 500 x 160 mm
- Weight: 11.6 kg
- Rabattgruppe: 11
Storz coupling for swinging gas lines
Suitable for
- For installation in connection box art. no. 7601.80.22
Description
- Storz coupling 75B
- For connection of the disposal vehicle pendulum gas line
- For pipe connection Rp 2 ½" (female thread)
- Weight: 1.8 kg
- Rabattgruppe: 11
In-wall frame
Suitable for
- Connection box
- 7601.80.20
- LipuLift-P-D/-DA/-DAP
Description
- Dimensions (width x height x depth): 565 x 565 x 15 mm
- Weight: 1.2 kg
- Rabattgruppe: 11
Stop valve
Suitable for
- Grease separators for free-standing installation
- Starch separator for free-standing installation
Description
- Made of cast iron
- Penstock plate, spindle made from stainless steel, material grade 304
- DN 100
- Length (L): 50 mm
- Spindle travel (H1 – H2): 365 – 465 mm
- Manual wheel diameter: 200 mm
- Weight: 15 kg
- Rabattgruppe: 11
Stop valve
Suitable for
- Grease separators for free-standing installation
- Starch separator for free-standing installation
Description
- Made of cast iron
- Penstock plate, spindle made from stainless steel, material grade 304
- DN 150
- Length (L): 60 mm
- Spindle travel (H1 – H2): 478 – 639 mm
- Manual wheel diameter: 200 mm
- Weight: 29.4 kg
- Rabattgruppe: 11
Stop valve
Suitable for
- Grease separator for free-standing installation
- NS 15-20
Description
- Made of cast iron
- Penstock plate, spindle made from stainless steel, material grade 304
- DN 200
- Length (L): 60 mm
- Spindle travel (H1 – H2): 542 – 743 mm
- Manual wheel diameter: 250 mm
- Weight: 36 kg
- Rabattgruppe: 11
Flange connection part
Description
- Stainless steel, material grade 304
- Seal: NBR
- DN 100
- Length (L): 75 mm
- Weight: 6.5 kg
- Rabattgruppe: 11
Flange connection part
Description
- Stainless steel, material grade 304
- Seal: NBR
- DN 150
- Length (L): 75 mm
- Weight: 10 kg
- Rabattgruppe: 11
Flange connection part
Suitable for
- Stop valve DN 200
- 7610.00.12
Description
- Stainless steel, material grade 304
- Seal: NBR
- DN 200
- Length (L): 120 mm
- Weight: 12.9 kg
- Rabattgruppe: 11
Sampling pot DN 100
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 1 – 4
- Starch separator FapuJet-S
- NS 0.5 – 1
- Light oil separator Coalisator-R/-RD
- NS 3
Description
- Stainless steel, material grade 316
- Round shape
- Gradient drop: 70 mm
- For installation in DN 100 horizontal pipes coming from grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 9.9 kg
- Rabattgruppe: 11
Sampling pot DN 150
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 5.5 – 10
- Starch separator FapuJet-S
- NS 2
- Light oil separator Coalisator-R/-RD
- NS 6 – 10
Description
- Stainless steel, material grade 316
- Round shape
- Gradient drop: 70 mm
- For installation in DN 150 horizontal pipes coming from grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 12.2 kg
- Rabattgruppe: 11
Sampling pot DN 100
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 1 – 4
- Starch separator FapuJet-S
- NS 0.5 – 1
- Light oil separator Coalisator-R/-RD
- NS 3
Description
- Stainless steel, material grade 316
- Round shape
- For installation in DN 100 vertical pipes coming from grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 9.5 kg
- Rabattgruppe: 11
Sampling pot DN 150
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 5.5 – 10
- Starch separator FapuJet-S
- NS 2
- Light oil separator Coalisator-R/-RD
- NS 6 – 10
Description
- Stainless steel, material grade 316
- Round shape
- For installation in DN 150 vertical pipes coming from grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 11.3 kg
- Rabattgruppe: 11
Coarse trap DN 100
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 1 – 4
- Starch separator FapuJet-S
- NS 0.5 – 1
Description
- Stainless steel, material grade 316
- Round shape
- Gradient drop: 70 mm
- For installation in DN 100 vertical pipes going to grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 11 kg
- Rabattgruppe: 11
Coarse trap DN 150
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 5.5 – 10
- Starch separator FapuJet-S
- NS 2
Description
- Stainless steel, material grade 316
- Round shape
- Gradient drop: 70 mm
- For installation in DN 150 vertical pipes going to grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 13.4 kg
- Rabattgruppe: 11
