ACO silt trap G

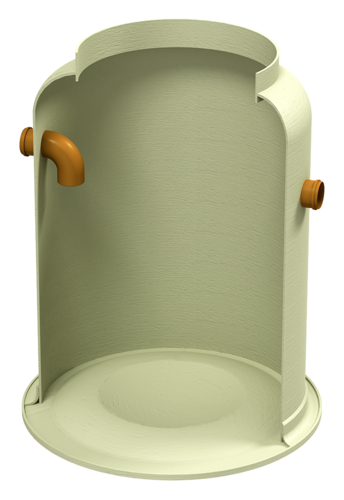

ACO Silt Trap G 276098

Product benefits

Simple to install, space efficient
Alarm device - optional accessories
Compatible combination options with Oleopator G without an integrated sludge trap

Product information

Vertical tank made of glass reinforced plastic - no heavy machinery required, resistant material
Suitable top sections
Pipe connection using suitable push sockets or pipe connectors (no welded sockets)

Inlet/outlet DN/OD	Contents			Weight	Item number	Downloads	Remember
	Sludge trap	Max. sludge layer	Total capacity	Weight
	[l]	[mm]	[l]	[kg]
110	600	470	686	95	12812.41
110	1000	637	949	110	12813.41
160	1500	746	1608	160	12815.41
200	2000	704	2393	235	12816.41
250	3000	961	3303	270	12817.41
315	4000	813	4007	340	12818.41
315	5000	801	5021	600	12819.41

Inlet/outlet DN/OD	Contents			Weight	Item number
Inlet/outlet DN/OD	Sludge trap	Max. sludge layer	Total capacity	Weight	Item number
110	600 l	470 mm	686 l	95 kg	12812.41
110	1000 l	637 mm	949 l	110 kg	12813.41
160	1500 l	746 mm	1608 l	160 kg	12815.41
200	2000 l	704 mm	2393 l	235 kg	12816.41
250	3000 l	961 mm	3303 l	270 kg	12817.41
315	4000 l	813 mm	4007 l	340 kg	12818.41
315	5000 l	801 mm	5021 l	600 kg	12819.41

Item number	Dimensions						Required top sections
	H1	H2	D1	D2	T tank	Total height	Required top sections
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[piece]
12812.41	930	910	1000	1246	360	1290	1 x DN 600
12813.41	1265	1245	1000	1246	360	1625	1 x DN 600
12815.41	1480	1460	1200	1434	450	1930	1 x DN 600
12816.41	1405	1385	1500	1759	590	1995	1 x DN 600
12817.41	1920	1900	1500	1759	640	2560	1 x DN 600
12818.41	1625	1605	1800	2455	830	2455	1 x DN 600
12819.41	1485	1465	2200	2455	735	2220	1 x DN 600
