ACO Complete Greywater Systems 724663

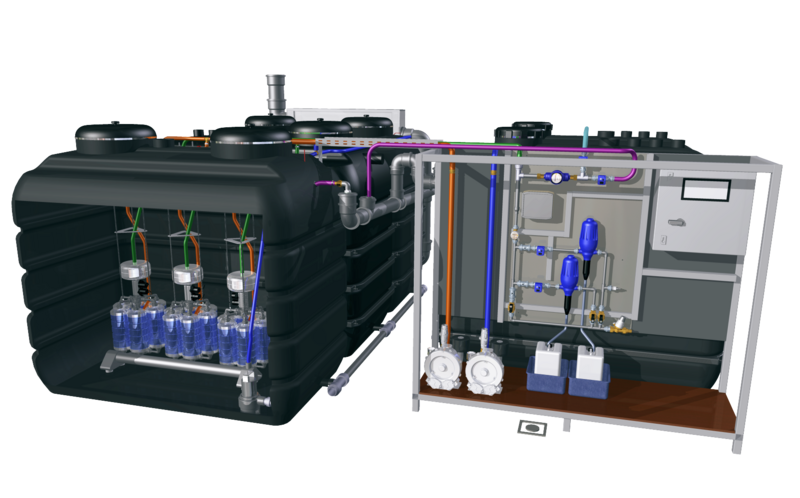

ACO complete greywater systems

Product benefits

  • Low maintenance effort
  • Saving of the valuable resource water
  • Savings on drinking water and waste water charges
  • Amortises itself within a few years
  • Pre-assembled systems save time for planning, installation and commissioning
  • Low space requirement

Product information

  • Basic control: automatic operation of the system with manual activation of cleaning
  • Comfort control: fully automatic operation of the system
  • Pre-assembled and ready for connection
  • Voltage: 230 VAC/50 Hz
  • Installation height 2,650 mm
  • Internet connection: RJ45
  • System components
    • Pre-filter
    • Bioreactor
    • AQUALOOP membrane station (incl. filtration & backwash pump)
    • Clear water tank
    • Control unit
    • Pipe diffuser
    • Blower for tube diffuser
    • Blower for membrane station
    • Sludge pump
    • Cleaning station
    • AQUALOOP packing
TypeNominal widthLengthWidthNumber of

bioreactors		WeightPerformanceVersionMax. output capacityItem

number		Remember
EmptyFull
[mm][mm][kg][kg][kW][l/day]
AL-GW3600DN 15045451350248667861.7Basis control36003041131
AL-GW5400DN 15051801960266071601.4Comfort control (incl. automatic cleaning station)54003041132
AL-GW10800DN 1505415292031080160801.5Comfort control (incl. automatic cleaning station)108003041133
AL-GW16200DN 2004110541541600176003.7Comfort control (incl. automatic cleaning station)162003041134
AL-GW21600DN 2005670533062110321106.9Comfort control (incl. automatic cleaning station)216003041135
AL-GW32400DN 2008400532592900479006.9Comfort control (incl. automatic cleaning station)324003041136
AL-GW48600DN 300125505330144400794009.3Comfort control (incl. automatic cleaning station)486003041138
TypeNominal widthLengthWidthNumber of

bioreactors		WeightPerformanceVersionMax. output capacityItem

number
EmptyFull
AL-GW3600DN 1504545 mm1350 mm2486 kg6786 kg1.7 kWBasis control3600 l/day3041131
AL-GW5400DN 1505180 mm1960 mm2660 kg7160 kg1.4 kWComfort control (incl. automatic cleaning station)5400 l/day3041132
AL-GW10800DN 1505415 mm2920 mm31080 kg16080 kg1.5 kWComfort control (incl. automatic cleaning station)10800 l/day3041133
AL-GW16200DN 2004110 mm5415 mm41600 kg17600 kg3.7 kWComfort control (incl. automatic cleaning station)16200 l/day3041134
AL-GW21600DN 2005670 mm5330 mm62110 kg32110 kg6.9 kWComfort control (incl. automatic cleaning station)21600 l/day3041135
AL-GW32400DN 2008400 mm5325 mm92900 kg47900 kg6.9 kWComfort control (incl. automatic cleaning station)32400 l/day3041136
AL-GW48600DN 30012550 mm5330 mm144400 kg79400 kg9.3 kWComfort control (incl. automatic cleaning station)48600 l/day3041138

TypeNominal widthLengthWidthNumber of

bioreactors		WeightPerformanceVersionMax. output capacityItem

number		Remember
EmptyFull
[mm][mm][kg][kg][kW][l/day]
AL-GW3600DN 15045451350248667861.7Basis control36003041131
AL-GW5400DN 15051801960266071601.4Comfort control (incl. automatic cleaning station)54003041132
AL-GW10800DN 1505415292031080160801.5Comfort control (incl. automatic cleaning station)108003041133
AL-GW16200DN 2004110541541600176003.7Comfort control (incl. automatic cleaning station)162003041134
AL-GW21600DN 2005670533062110321106.9Comfort control (incl. automatic cleaning station)216003041135
AL-GW32400DN 2008400532592900479006.9Comfort control (incl. automatic cleaning station)324003041136
AL-GW48600DN 300125505330144400794009.3Comfort control (incl. automatic cleaning station)486003041138
TypeNominal widthLengthWidthNumber of

bioreactors		WeightPerformanceVersionMax. output capacityItem

number
EmptyFull
AL-GW3600DN 1504545 mm1350 mm2486 kg6786 kg1.7 kWBasis control3600 l/day3041131
AL-GW5400DN 1505180 mm1960 mm2660 kg7160 kg1.4 kWComfort control (incl. automatic cleaning station)5400 l/day3041132
AL-GW10800DN 1505415 mm2920 mm31080 kg16080 kg1.5 kWComfort control (incl. automatic cleaning station)10800 l/day3041133
AL-GW16200DN 2004110 mm5415 mm41600 kg17600 kg3.7 kWComfort control (incl. automatic cleaning station)16200 l/day3041134
AL-GW21600DN 2005670 mm5330 mm62110 kg32110 kg6.9 kWComfort control (incl. automatic cleaning station)21600 l/day3041135
AL-GW32400DN 2008400 mm5325 mm92900 kg47900 kg6.9 kWComfort control (incl. automatic cleaning station)32400 l/day3041136
AL-GW48600DN 30012550 mm5330 mm144400 kg79400 kg9.3 kWComfort control (incl. automatic cleaning station)48600 l/day3041138
