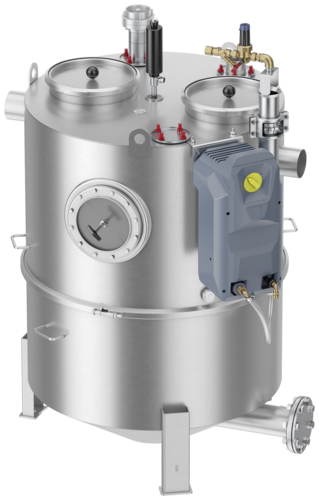

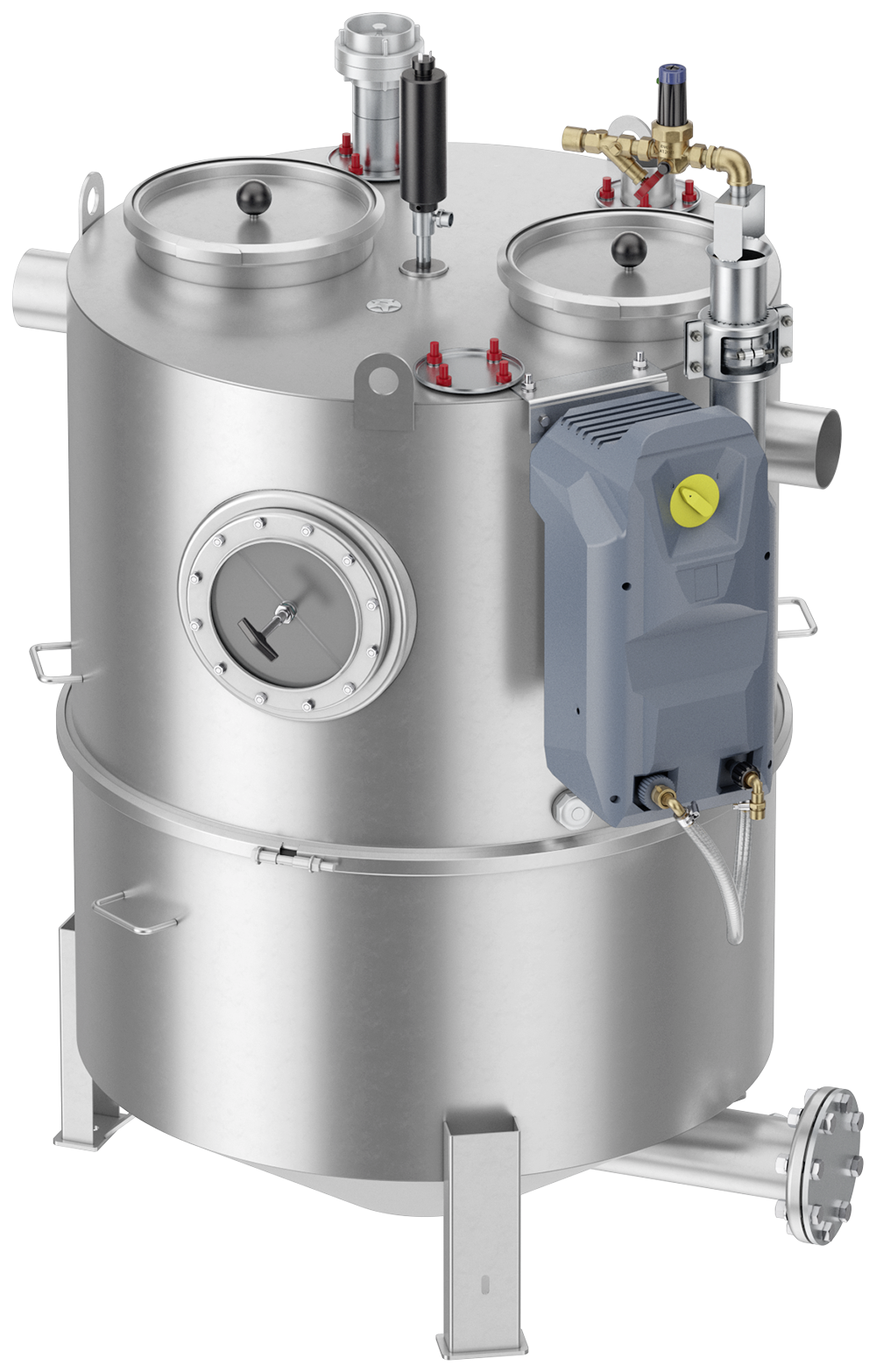

Grease separator LipuJet-S-RM extension stage 2

Product benefits

  • Easy to transport and fit thanks delivery of individual parts
  • Odour-free emptying, cleaning and filling
  • Hydromechanical high-pressure cleaning – only a cold-water connection required
  • Can be equipped with an disposal pump
  • Small delivery dimensions
  • Low weight

Product information

  • Grease separator plant as per DIN EN 1825 and DIN 4040-100
  • For installation indoors
  • With integrated sludge trap
  • Operating side: right/left
  • Draining connection, fire hose quick coupling B 2½"
  • Suction and emptying sump with drain plug socket 1½"
  • Inspection window with wiper
  • Manual operation of the high pressure internal cleaning with pump
    • Nominal pressure: 175 bar
    • Capacity: 11,6 l/min
    • Chopping, mixing, rinsing in one process
  • Odour-proof maintenance opening
    • Diameter: 300 mm for NS 1 – 4
    • Diameter: 500 mm for NS 7 – 20
  • Filling device with ball valve (connection ¾") for manual refilling
  • Electrical connector: 400 V/50 Hz/16 A/4,2 kW

Operation side: Right-hand

Nominal sizeNominal widthContentsWeightItem

number
Remember
Sludge trapGrease storeOverallEmptyFullHeaviest single component
[l][l][l][kg][kg][kg]
NS 2DN 100210120715204918887502.73.41
NS 4DN 1004201659152181133887504.73.41
NS 7DN 150705400195036723191287507.73.41
NS 10DN 1501000400225038226291287510.73.41
NS 15DN 2001630800335052338731967515.73.41
NS 20DN 2002110800382054143611967520.73.41

Operation side: left

Nominal sizeNominal widthContentsWeightItem

number
Remember
Sludge trapGrease storeOverallEmptyFullHeaviest single component
[l][l][l][kg][kg][kg]
NS 2DN 100210120715204918887502.73.31
NS 4DN 1004201659152181133887504.73.31
NS 7DN 150705400195036723191287507.73.31
NS 10DN 1501000400225038226291287510.73.31
NS 15DN 2001630800335052338731967515.73.31
NS 20DN 2002110800382054143611967520.73.31
Nominal sizeNominal widthContentsWeightOperation sideItem

number
Sludge trapGrease storeOverallEmptyFullHeaviest single component
ImageNS 2DN 100210 l120 l715 l204 kg918 kg88 kgRight-hand7502.73.41
ImageNS 4DN 100420 l165 l915 l218 kg1133 kg88 kgRight-hand7504.73.41
ImageNS 7DN 150705 l400 l1950 l367 kg2319 kg128 kgRight-hand7507.73.41
ImageNS 10DN 1501000 l400 l2250 l382 kg2629 kg128 kgRight-hand7510.73.41
ImageNS 15DN 2001630 l800 l3350 l523 kg3873 kg196 kgRight-hand7515.73.41
ImageNS 20DN 2002110 l800 l3820 l541 kg4361 kg196 kgRight-hand7520.73.41
ImageNS 2DN 100210 l120 l715 l204 kg918 kg88 kgleft7502.73.31
ImageNS 4DN 100420 l165 l915 l218 kg1133 kg88 kgleft7504.73.31
ImageNS 7DN 150705 l400 l1950 l367 kg2319 kg128 kgleft7507.73.31
ImageNS 10DN 1501000 l400 l2250 l382 kg2629 kg128 kgleft7510.73.31
ImageNS 15DN 2001630 l800 l3350 l523 kg3873 kg196 kgleft7515.73.31
ImageNS 20DN 2002110 l800 l3820 l541 kg4361 kg196 kgleft7520.73.31

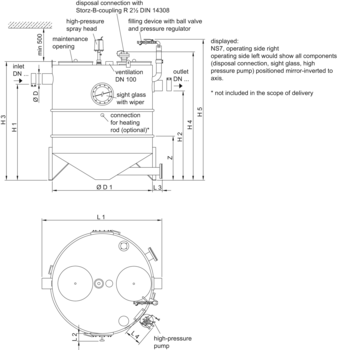

Scale drawing
Item

number
Nominal sizeDimensions
L1L2L3L4H1H2H3H4H5DD1Z/Anzahl Segmente
[mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm]
7502.73.41NS 211801201502509759051200140015201101000785/2
7504.73.41NS 41180120150250124011701450165017701101000785/2
7507.73.41NS 71800120150250143013301780193021001601500790/3
7510.73.41NS 101800120150250160015001950210022701601500790/3
7515.73.41NS 152050120150250175516852120225024402101750820/3
7520.73.41NS 202050120150250195518852320245026402101750820/3
7502.73.31NS 211801201502509759051200140015201101000785/2
7504.73.31NS 41180120150250124011701450165017701101000785/2
7507.73.31NS 71800120150250143013301780193021001601500790/3
7510.73.31NS 101800120150250160015001950210022701601500790/3
7515.73.31NS 152050120150250175516852120225024402101750820/3
7520.73.31NS 202050120150250195518852320245026402101750820/3

Features of base version:

  • Emptying and cleaning via maintenance opening
  • Odour build-up during emptying and cleaning
LipuJet-S-RB

Features of upgrade level 1:

  • Connection for direct suction
  • Odour build-up only during cleaning
LipuJet-S-RD

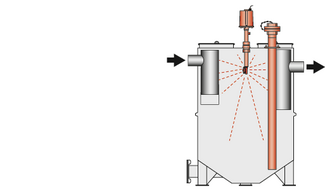

Features of upgrade level 2:

  • Connection for direct suction
  • High pressure cleaning operated manually
  • No odour build-up

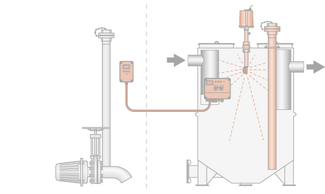

Features of upgrade level 3:

  • Connection for direct suction
  • Completely automatic programme
  • Optionally with drainage pump and remote control
  • No odour build-up
LipuJet-S-RA (without disposal pump)
LipuJet-S-RAP (with disposal pump)

Grease layer thickness measuring device

Suitable for
  • LipuJet-P
    • Oval NS 1 – 10
    • Round NS 2 – 22,5
  • LipuJet-S
    • Oval NS 1 – 10
    • Round NS 2 – 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
  • With visual display of fill level
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230VAC/5 VA
  • Max consumption approx. 12W
  • Weight: 2.8 kg

Grease layer thickness measuring device Multi Control

Suitable for
  • LipuJet-P
    • Oval NS 1 – NS 30
    • Round NS 2 – NS 20
  • LipuJet-S
    • Oval NS 1 – NS 10
    • Round NS 2 – NS 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • To determine the disposal intervals of grease separators
  • Suitable for liquid and/or harden fats
  • Delineation with colour-touchpanel
  • With integrated SD-card (4GB) for recording of the measuring process
  • With headed sounding stick (temperature is adjustable) to increase the operation safety
  • Three free of potential contacts for outoput of pre-alarm (adjustable), full-alarm (adjustable) and error
  • Measuring stick with adjusting scale
  • Delineation with plug-in cable connection, 3 m
  • Service voltage: 100 240VAC 50/60 Hz, 2 A
  • Power: ca. 43 W
  • Weight: 2.7 kg

Smell neutralisation

Suitable for
  • Grease separators (incl. external makes)
Description
  • Lockable control cabinet
    • From stainless steel, material grade 304
    • Ground surface
    • With side ventilation slots
  • Integrated timer
  • Incl. odour neutralisers: 9 l
  • With dosing pump for reliable discharge
  • Chemical resistant dosing hose
  • Signal column for status monitoring
  • PG gland for on-site connection
  • Control cabinet dimensions: 380 x 600 x 210 mm (W x H x D)
  • System ready to plug in
    • Incl. cable: 1.5 m
  • 230 V socket to be produced on-site
  • Weight: 36.2 kg

ACO Ozone Generator

Suitable for
  • Grease separators, indoors
  • Grease separators, outdoors
  • Lifting stations
  • Pumping stations
Description
  • ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
  • Material: acid-resistant stainless steel

Consists:

  • ACO Ozone - ozone generator
    • Size (L x W x H): 270 x 100 x 85 mm
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP20
  • ACO Ozone pump - feed pump
    • Size (L x W x H): 160 x 90 x 90 mm
    • Integrated filter
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP54
  • ACO Ozone bracket - wall bracket
    • Size (L x W x H): 295 x 110 x 90 mm
  • Hoses

Message system with GSM module

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets
Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg

Connection cable antenna GSM

Suitable for
  • GSM - Modul
Description
  • Length incl. connections: approx. 15 m
  • Cable type: RG58
  • Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
  • Only one extension cable may be used per GSM module
  • Usable in temperature range: -20°C to 85°C

Heating rod

Suitable for
  • Grease separators
Description
  • To liquefy grease layer
  • Incl. control
  • Electrical connector
    • 400 V/50 Hz/6.0 kW
  • Weight: 15 kg

Connection box

Suitable for
  • Grease separators
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection and remote control
  • Made from stainless steel, material grade 304
  • Fixing: "On wall"
  • Dimensions (width x height x depth): 500 x 500 x 160 mm
  • Weight: 11.6 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.20
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Dimensions (width x height x depth): 565 x 565 x 15 mm
  • Weight: 1.2 kg

Storz coupling for swinging gas lines

Suitable for
  • For installation in connection box art. no. 7601.80.22
Description
  • Storz coupling 75B
  • For connection of the disposal vehicle pendulum gas line
  • For pipe connection Rp 2 ½" (female thread)
  • Weight: 1.8 kg

Connection box

Suitable for
  • Grease separators
    • LipuMax-P-D/DM/DA
    • LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
    • LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
  • Stach seperators FapuMax-P-DA
  • Oil separators Coalisator-P
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection DN 80
  • Made from stainless steel, material grade 304
  • "On wall" version
  • Door stop
    • Choice of left or right
    • Lockable door
  • Dimensions (width x height x depth): 370 x 330 x 250 mm
  • Weight: 10.4 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.22
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Stainless steel, material grade 304
  • Dimensions (width x height x depth): 421 x 381 x 25 mm
  • Weight: 1 kg

Connection box

Suitable for
  • Grease separator
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For disposal connection, pendulum gas line (if necessary) and remote control
  • From stainless steel, material grade 304
  • "Surface mounted” version
  • Glass beaded front
  • Lockable door, left limit stop
  • Dimensions W x H x D: 300 x 725 x 160 mm
  • Weight: 10 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.24
,
  • LipuLift-P-D/-DA/-DAP
Description
  • From stainless steel, material grade 304
  • "In-wall” version
  • Glass beaded front
  • Dimension W x H x D:
    • 405 x 830 x 30 mm
  • Weight: 2.1 kg

Sampling pot DN 100

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 1 – 4
  • Starch separator FapuJet-S
    • NS 0.5 – 1
  • Light oil separator Coalisator-R/-RD
    • NS 3
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 100 horizontal pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 9.9 kg

Sampling pot DN 150

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 5.5 – 10
  • Starch separator FapuJet-S
    • NS 2
  • Light oil separator Coalisator-R/-RD
    • NS 6 – 10
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 150 horizontal pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 12.2 kg

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 15 – 20
  • Light oil separator Coalisator-E
    • NS 20
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 200 horizontal pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 13.1 kg

Sampling pot DN 100

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 1 – 4
  • Starch separator FapuJet-S
    • NS 0.5 – 1
  • Light oil separator Coalisator-R/-RD
    • NS 3
Description
  • Stainless steel, material grade 316
  • Round shape
  • For installation in DN 100 vertical pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 9.5 kg

Sampling pot DN 150

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 5.5 – 10
  • Starch separator FapuJet-S
    • NS 2
  • Light oil separator Coalisator-R/-RD
    • NS 6 – 10
Description
  • Stainless steel, material grade 316
  • Round shape
  • For installation in DN 150 vertical pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 11.3 kg

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 15 – 20
  • Light oil separator Coalisator-E
    • NS 20
Description
  • Made from stainless steel, material grade 304
  • Round shape
  • For installation in DN 200 vertical pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 11 kg

Coarse trap DN 100

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 1 – 4
  • Starch separator FapuJet-S
    • NS 0.5 – 1
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 100 vertical pipes going to grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 11 kg

Coarse trap DN 150

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 5.5 – 10
  • Starch separator FapuJet-S
    • NS 2
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 150 vertical pipes going to grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 13.4 kg

Coarse trap DN 200

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 15 – 20
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 200 vertical pipes going to grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 14.3 kg

Stop valve

Suitable for
  • Grease separators for free-standing installation
  • Starch separator for free-standing installation
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 100
  • Length (L): 50 mm
  • Spindle travel (H1 – H2): 365 – 465 mm
  • Manual wheel diameter: 200 mm
  • Weight: 15 kg

Stop valve

Suitable for
  • Grease separators for free-standing installation
  • Starch separator for free-standing installation
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 150
  • Length (L): 60 mm
  • Spindle travel (H1 – H2): 478 – 639 mm
  • Manual wheel diameter: 200 mm
  • Weight: 29.4 kg

Stop valve

Suitable for
  • Grease separator for free-standing installation
    • NS 15-20
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 200
  • Length (L): 60 mm
  • Spindle travel (H1 – H2): 542 – 743 mm
  • Manual wheel diameter: 250 mm
  • Weight: 36 kg

Flange connection part

Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 100
  • Length (L): 75 mm
  • Weight: 6.5 kg

Flange connection part

Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 150
  • Length (L): 75 mm
  • Weight: 10 kg

Flange connection part

Suitable for
  • Stop valve DN 200
    • 7610.00.12
Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 200
  • Length (L): 120 mm
  • Weight: 12.9 kg

Operating Logbook

Suitable for
  • Grease separator
    • For underground installation
    • For free-standing installation
Description
  • Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
  • Format: A4 with double filing rings
  • Size: 60 pages
  • Laid out to cover 5 years
  • Weight: 0.3 kg
