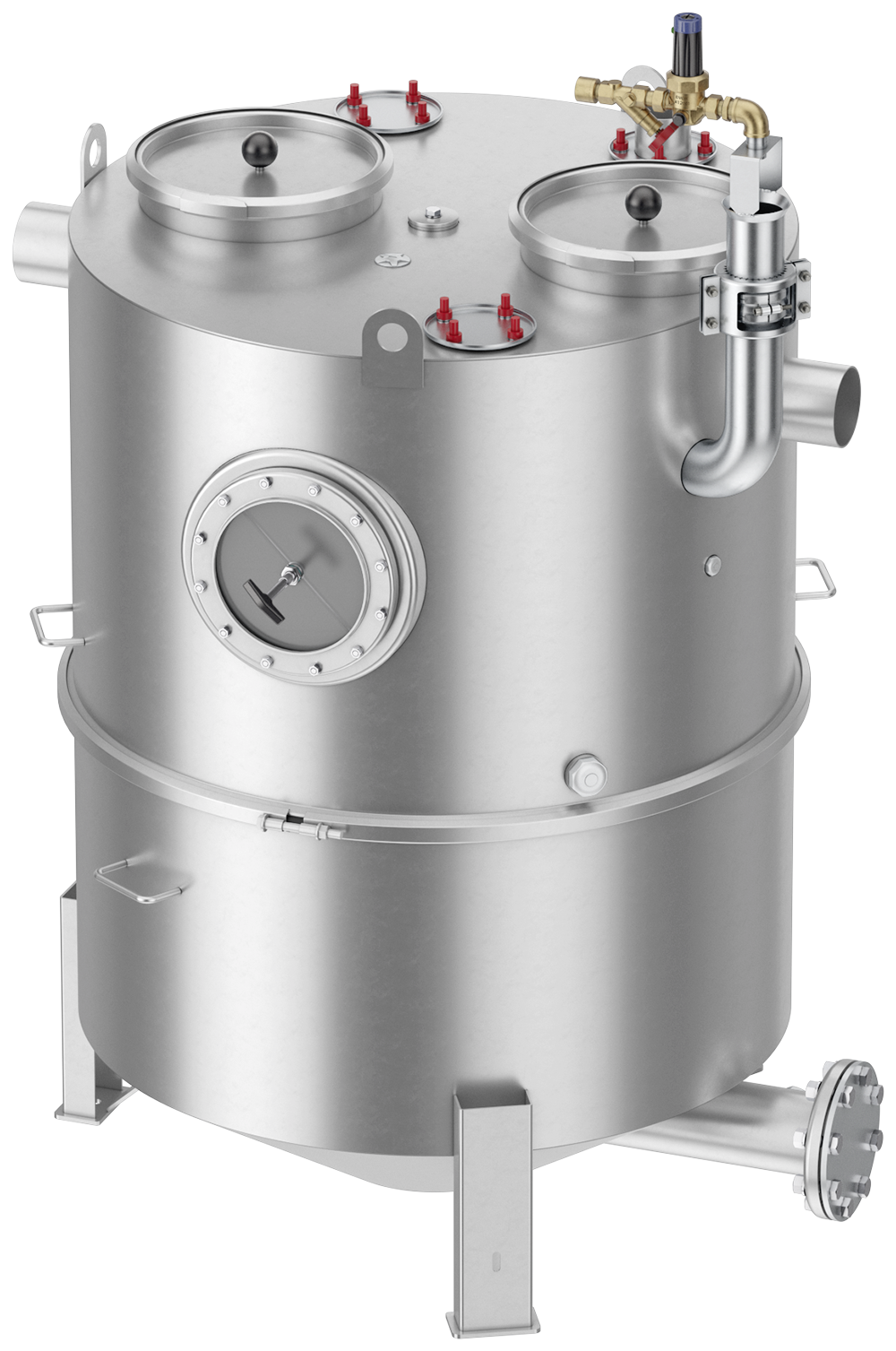

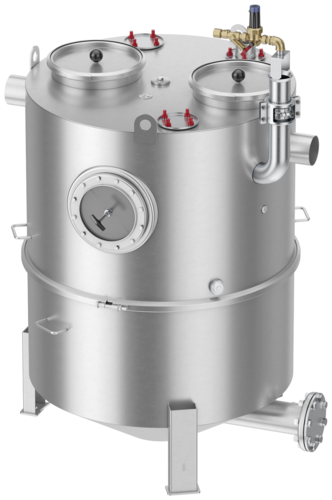

Grease separator LipuJet-S-RB basic model

Product benefits

  • Easy to transport and fit thanks delivery of individual parts
  • Small delivery dimensions
  • Low weight

Product information

  • Grease separator plant as per DIN EN 1825 and DIN 4040-100
  • For indoors installation – frost free
  • With integrated sludge trap
  • Operating side: right/left
  • Suction and emptying sump with drain plug socket 1½"
  • Odour-proof maintenance opening
    • Diameter: 300 mm for NS 1 – 4
    • Diameter: 500 mm for NS 7 – 20
Nominal sizeNominal widthContentsWeightItem

number
Remember
Sludge trapGrease storeOverallEmptyFullHeaviest single component
[l][l][l][kg][kg][kg]
NS 2DN 100210120715168882887502.32.00
NS 4DN 1004201659151781093887504.32.00
NS 7DN 150705400195033222841287507.32.00
NS 10DN 1501000400225034225891287510.32.00
NS 15DN 2001630800335048538351967515.32.00
NS 20DN 2002110800382050143211967520.32.00
Nominal sizeNominal widthContentsWeightItem

number
Sludge trapGrease storeOverallEmptyFullHeaviest single component
ImageNS 2DN 100210 l120 l715 l168 kg882 kg88 kg7502.32.00
ImageNS 4DN 100420 l165 l915 l178 kg1093 kg88 kg7504.32.00
ImageNS 7DN 150705 l400 l1950 l332 kg2284 kg128 kg7507.32.00
ImageNS 10DN 1501000 l400 l2250 l342 kg2589 kg128 kg7510.32.00
ImageNS 15DN 2001630 l800 l3350 l485 kg3835 kg196 kg7515.32.00
ImageNS 20DN 2002110 l800 l3820 l501 kg4321 kg196 kg7520.32.00

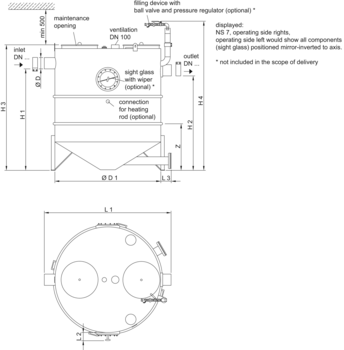

Scale drawing
Item

number
Nominal sizeDimensions
L1L2L3H1H2H3H4DD1Z/Anzahl Segmente
[mm][mm][mm][mm][mm][mm][mm][mm][mm]
7502.32.00NS 21180120150975905120015201101000785/2
7504.32.00NS 4118012015012401170145017701101000785/2
7507.32.00NS 7180012015014301330178021001601500790/3
7510.32.00NS 10180012015016001500195022701601500790/3
7515.32.00NS 15205012015017551685212024402101750820/3
7520.32.00NS 20205012015019351885232026402101750820/3

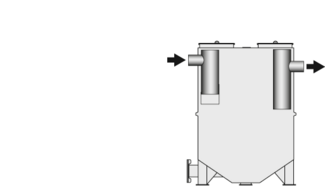

Features of base version:

  • Emptying and cleaning via maintenance opening
  • Odour build-up during emptying and cleaning

Features of upgrade level 1:

  • Connection for direct suction
  • Odour build-up only during cleaning
LipuJet-S-RD

Features of upgrade level 2:

  • Connection for direct suction
  • High pressure cleaning operated manually
  • No odour build-up
LipuJet-S-RM (without disposal pump)

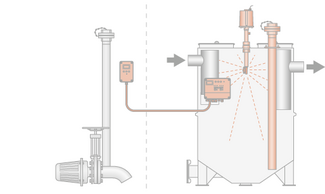

Features of upgrade level 3:

  • Connection for direct suction
  • Completely automatic programme
  • Optionally with drainage pump and remote control
  • No odour build-up
LipuJet-S-RA (without disposal pump)
LipuJet-S-RAP (with disposal pump)

Grease layer thickness measuring device

Suitable for
  • LipuJet-P
    • Oval NS 1 – 10
    • Round NS 2 – 22,5
  • LipuJet-S
    • Oval NS 1 – 10
    • Round NS 2 – 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
  • With visual display of fill level
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230VAC/5 VA
  • Max consumption approx. 12W
  • Weight: 2.8 kg

Grease layer thickness measuring device Multi Control

Suitable for
  • LipuJet-P
    • Oval NS 1 – NS 30
    • Round NS 2 – NS 20
  • LipuJet-S
    • Oval NS 1 – NS 10
    • Round NS 2 – NS 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • To determine the disposal intervals of grease separators
  • Suitable for liquid and/or harden fats
  • Delineation with colour-touchpanel
  • With integrated SD-card (4GB) for recording of the measuring process
  • With headed sounding stick (temperature is adjustable) to increase the operation safety
  • Three free of potential contacts for outoput of pre-alarm (adjustable), full-alarm (adjustable) and error
  • Measuring stick with adjusting scale
  • Delineation with plug-in cable connection, 3 m
  • Service voltage: 100 240VAC 50/60 Hz, 2 A
  • Power: ca. 43 W
  • Weight: 2.7 kg

Smell neutralisation

Suitable for
  • Grease separators (incl. external makes)
Description
  • Lockable control cabinet
    • From stainless steel, material grade 304
    • Ground surface
    • With side ventilation slots
  • Integrated timer
  • Incl. odour neutralisers: 9 l
  • With dosing pump for reliable discharge
  • Chemical resistant dosing hose
  • Signal column for status monitoring
  • PG gland for on-site connection
  • Control cabinet dimensions: 380 x 600 x 210 mm (W x H x D)
  • System ready to plug in
    • Incl. cable: 1.5 m
  • 230 V socket to be produced on-site
  • Weight: 36.2 kg

ACO Ozone Generator

Suitable for
  • Grease separators, indoors
  • Grease separators, outdoors
  • Lifting stations
  • Pumping stations
Description
  • ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
  • Material: acid-resistant stainless steel

Consists:

  • ACO Ozone - ozone generator
    • Size (L x W x H): 270 x 100 x 85 mm
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP20
  • ACO Ozone pump - feed pump
    • Size (L x W x H): 160 x 90 x 90 mm
    • Integrated filter
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP54
  • ACO Ozone bracket - wall bracket
    • Size (L x W x H): 295 x 110 x 90 mm
  • Hoses

Message system with GSM module

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets
Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg

Connection cable antenna GSM

Suitable for
  • GSM - Modul
Description
  • Length incl. connections: approx. 15 m
  • Cable type: RG58
  • Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
  • Only one extension cable may be used per GSM module
  • Usable in temperature range: -20°C to 85°C

Heating rod

Suitable for
  • Grease separators
Description
  • To liquefy grease layer
  • Incl. control
  • Electrical connector
    • 400 V/50 Hz/6.0 kW
  • Weight: 15 kg

Filling device

Suitable for
  • Grease separator LipuJet-S-OB/OD/RB/RD
Description
  • Free outlet as per DIN 1988 Part 4
  • For connection to drinking water supply
  • With ball valve R ¾"
  • Weight: 2.3 kg

Connection box

Suitable for
  • Grease separators
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection and remote control
  • Made from stainless steel, material grade 304
  • Fixing: "On wall"
  • Dimensions (width x height x depth): 500 x 500 x 160 mm
  • Weight: 11.6 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.20
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Dimensions (width x height x depth): 565 x 565 x 15 mm
  • Weight: 1.2 kg

Storz coupling for swinging gas lines

Suitable for
  • For installation in connection box art. no. 7601.80.22
Description
  • Storz coupling 75B
  • For connection of the disposal vehicle pendulum gas line
  • For pipe connection Rp 2 ½" (female thread)
  • Weight: 1.8 kg

Connection box

Suitable for
  • Grease separators
    • LipuMax-P-D/DM/DA
    • LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
    • LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
  • Stach seperators FapuMax-P-DA
  • Oil separators Coalisator-P
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection DN 80
  • Made from stainless steel, material grade 304
  • "On wall" version
  • Door stop
    • Choice of left or right
    • Lockable door
  • Dimensions (width x height x depth): 370 x 330 x 250 mm
  • Weight: 10.4 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.22
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Stainless steel, material grade 304
  • Dimensions (width x height x depth): 421 x 381 x 25 mm
  • Weight: 1 kg

Connection box

Suitable for
  • Grease separator
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For disposal connection, pendulum gas line (if necessary) and remote control
  • From stainless steel, material grade 304
  • "Surface mounted” version
  • Glass beaded front
  • Lockable door, left limit stop
  • Dimensions W x H x D: 300 x 725 x 160 mm
  • Weight: 10 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.24
,
  • LipuLift-P-D/-DA/-DAP
Description
  • From stainless steel, material grade 304
  • "In-wall” version
  • Glass beaded front
  • Dimension W x H x D:
    • 405 x 830 x 30 mm
  • Weight: 2.1 kg

Viewing window

Suitable for
  • Grease separator LipuJet-S-OB/OD/RB/RD
Description
  • Nominal width: DN 200
  • With screen wiper
  • Weight: 2.3 kg

Sampling pot DN 100

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 1 – 4
  • Starch separator FapuJet-S
    • NS 0.5 – 1
  • Light oil separator Coalisator-R/-RD
    • NS 3
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 100 horizontal pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 9.9 kg

Sampling pot DN 150

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 5.5 – 10
  • Starch separator FapuJet-S
    • NS 2
  • Light oil separator Coalisator-R/-RD
    • NS 6 – 10
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 150 horizontal pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 12.2 kg

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 15 – 20
  • Light oil separator Coalisator-E
    • NS 20
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 200 horizontal pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 13.1 kg

Sampling pot DN 100

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 1 – 4
  • Starch separator FapuJet-S
    • NS 0.5 – 1
  • Light oil separator Coalisator-R/-RD
    • NS 3
Description
  • Stainless steel, material grade 316
  • Round shape
  • For installation in DN 100 vertical pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 9.5 kg

Sampling pot DN 150

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 5.5 – 10
  • Starch separator FapuJet-S
    • NS 2
  • Light oil separator Coalisator-R/-RD
    • NS 6 – 10
Description
  • Stainless steel, material grade 316
  • Round shape
  • For installation in DN 150 vertical pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 11.3 kg

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 15 – 20
  • Light oil separator Coalisator-E
    • NS 20
Description
  • Made from stainless steel, material grade 304
  • Round shape
  • For installation in DN 200 vertical pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 11 kg

Coarse trap DN 100

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 1 – 4
  • Starch separator FapuJet-S
    • NS 0.5 – 1
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 100 vertical pipes going to grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 11 kg

Coarse trap DN 150

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 5.5 – 10
  • Starch separator FapuJet-S
    • NS 2
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 150 vertical pipes going to grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 13.4 kg

Coarse trap DN 200

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 15 – 20
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 200 vertical pipes going to grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 14.3 kg

Stop valve

Suitable for
  • Grease separators for free-standing installation
  • Starch separator for free-standing installation
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 100
  • Length (L): 50 mm
  • Spindle travel (H1 – H2): 365 – 465 mm
  • Manual wheel diameter: 200 mm
  • Weight: 15 kg

Stop valve

Suitable for
  • Grease separators for free-standing installation
  • Starch separator for free-standing installation
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 150
  • Length (L): 60 mm
  • Spindle travel (H1 – H2): 478 – 639 mm
  • Manual wheel diameter: 200 mm
  • Weight: 29.4 kg

Stop valve

Suitable for
  • Grease separator for free-standing installation
    • NS 15-20
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 200
  • Length (L): 60 mm
  • Spindle travel (H1 – H2): 542 – 743 mm
  • Manual wheel diameter: 250 mm
  • Weight: 36 kg

Flange connection part

Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 100
  • Length (L): 75 mm
  • Weight: 6.5 kg

Flange connection part

Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 150
  • Length (L): 75 mm
  • Weight: 10 kg

Flange connection part

Suitable for
  • Stop valve DN 200
    • 7610.00.12
Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 200
  • Length (L): 120 mm
  • Weight: 12.9 kg

Operating Logbook

Suitable for
  • Grease separator
    • For underground installation
    • For free-standing installation
Description
  • Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
  • Format: A4 with double filing rings
  • Size: 60 pages
  • Laid out to cover 5 years
  • Weight: 0.3 kg
