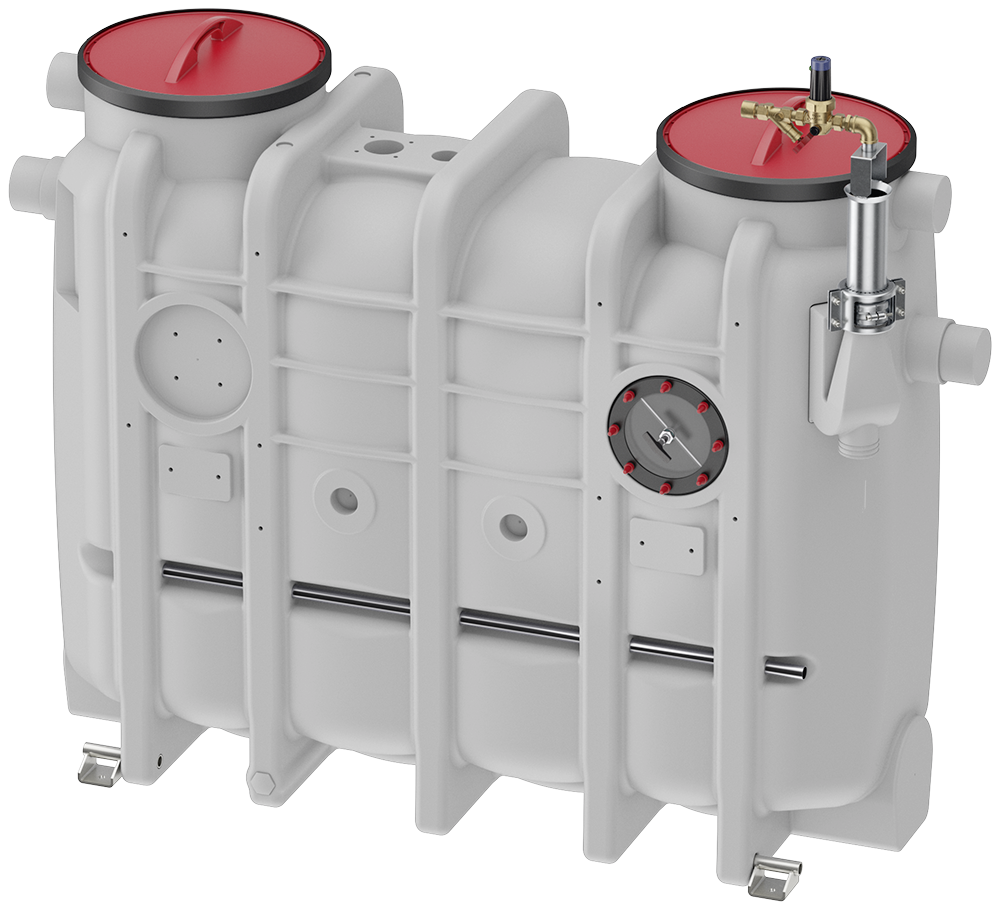

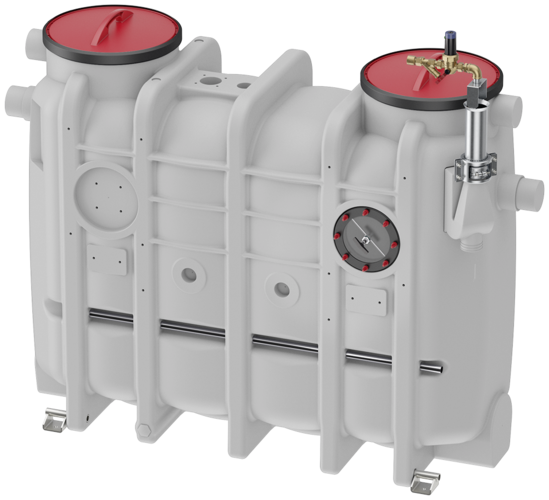

Grease separator LipuJet-P-OB basic model

Product benefits

  • Proven stability: 25 years
  • Minimises disposal and maintenance costs thanks to economic step increases in nominal size
  • Small delivery dimensions
  • Low weight

Product information

  • Grease separator plant as per DIN EN 1825 and DIN 4040-100
  • For indoors installation – frost free
  • With integrated sludge trap
  • Operating side: right/left
  • Suction and emptying sump with drain plug socket 1"
  • Odour-proof maintenance opening, diameter: 450 mm
Nominal sizeNominal widthContentsWeightItem

number
Remember
Sludge trapGrease storeOverallEmptyFull
[l][l][l][kg][kg]
NS 1DN 100106100320623823551.34.0011
NS 2DN 100210100440705103552.34.0011
NS 3DN 100300150630807103553.34.0011
NS 4DN 100400200830959253554.34.0011
NS 5.5DN 150725360143017016003555.34.0011
NS 7DN 150800400160018717873557.34.0011
NS 8.5DN 150940475190020821083558.34.0011
NS 10DN 1501000520200022022203560.34.0011
Nominal sizeNominal widthContentsWeightItem

number
Sludge trapGrease storeOverallEmptyFull
ImageNS 1DN 100106 l100 l320 l62 kg382 kg3551.34.00
ImageNS 2DN 100210 l100 l440 l70 kg510 kg3552.34.00
ImageNS 3DN 100300 l150 l630 l80 kg710 kg3553.34.00
ImageNS 4DN 100400 l200 l830 l95 kg925 kg3554.34.00
ImageNS 5.5DN 150725 l360 l1430 l170 kg1600 kg3555.34.00
ImageNS 7DN 150800 l400 l1600 l187 kg1787 kg3557.34.00
ImageNS 8.5DN 150940 l475 l1900 l208 kg2108 kg3558.34.00
ImageNS 10DN 1501000 l520 l2000 l220 kg2220 kg3560.34.00

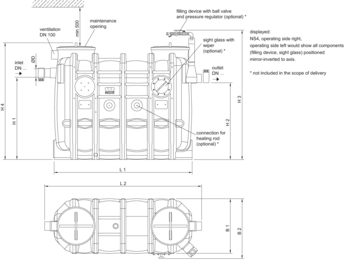

Scale drawing
Item

number
Nominal sizeDimensions
L1L2H1H2H3H4B1B2D
[mm][mm][mm][mm][mm][mm][mm][mm][mm]
3551.34.00NS 11100130083076014801300700770110
3552.34.00NS 211001300105598516801500700770110
3553.34.00NS 314501650105598516801500700770110
3554.34.00NS 417602000105598516801500700770110
3555.34.00NS 5.51760200012501180188017009501020160
3557.34.00NS 71960220012501180188017009501020160
3558.34.00NS 8.52250248512501180188017009501020160
3560.34.00NS 102450269012501180188017009501020160

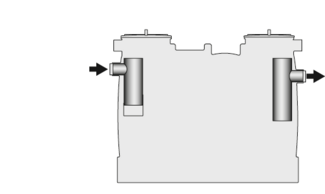

Features of base version:

  • Emptying and cleaning via maintenance opening
  • Odour build-up during emptying and cleaning

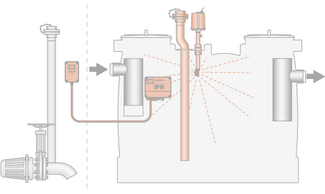

Features of upgrade level 1:

  • Connection for direct suction
  • Odour build-up only during cleaning
LipuJet-P-OD

Features of upgrade level 2:

  • Connection for direct suction
  • High pressure cleaning operated manually
  • No odour build-up
LipuJet-P-OM (without disposal pump)

Features of upgrade level 3:

  • Connection for direct suction
  • Completely automatic programme
  • Optionally with drainage pump and remote control
  • No odour build-up
LipuJet-P-OA (without disposal pump)
LipuJet-P-OAP (with disposal pump)

Grease layer thickness measuring device

Suitable for
  • LipuJet-P
    • Oval NS 1 – 10
    • Round NS 2 – 22,5
  • LipuJet-S
    • Oval NS 1 – 10
    • Round NS 2 – 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
  • With visual display of fill level
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230VAC/5 VA
  • Max consumption approx. 12W
  • Weight: 2.8 kg
  • Rabattgruppe: 11

ACO Ozone Generator

Suitable for
  • Grease separators, indoors
  • Grease separators, outdoors
  • Lifting stations
  • Pumping stations
Description
  • ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
  • Material: acid-resistant stainless steel

Consists:

  • ACO Ozone - ozone generator
    • Size (L x W x H): 270 x 100 x 85 mm
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP20
  • ACO Ozone pump - feed pump
    • Size (L x W x H): 160 x 90 x 90 mm
    • Integrated filter
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP54
  • ACO Ozone bracket - wall bracket
    • Size (L x W x H): 295 x 110 x 90 mm
  • Hoses
  • Rabattgruppe: 11

Message system with GSM module

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets
Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg
  • Rabattgruppe: 12

Connection cable antenna GSM

Suitable for
  • GSM - Modul
Description
  • Length incl. connections: approx. 15 m
  • Cable type: RG58
  • Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
  • Only one extension cable may be used per GSM module
  • Usable in temperature range: -20°C to 85°C

Heating rod

Suitable for
  • Grease separators
Description
  • To liquefy grease layer
  • Incl. control
  • Electrical connector
    • 400 V/50 Hz/6.0 kW
  • Weight: 15 kg
  • Rabattgruppe: 11

Filling device

Suitable for
  • Grease separator
    • LipuJet-P-OB/OD/R/RD
    • LipuSmart-P-OB/OD
  • BioJet-P-OM/RM (NS 2-25)
Description
  • Free outlet as per DIN 1988 Part 4
  • For connection to drinking water supply
  • With DVGW / KIWA approval and inclined valve R ¾ "
  • With pressure relief valve with dirt trap
  • Weight: 3.5 kg
  • Rabattgruppe: 11

Connection box

Suitable for
  • Grease separators
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection and remote control
  • Made from stainless steel, material grade 304
  • Fixing: "On wall"
  • Dimensions (width x height x depth): 500 x 500 x 160 mm
  • Weight: 11.6 kg
  • Rabattgruppe: 11
