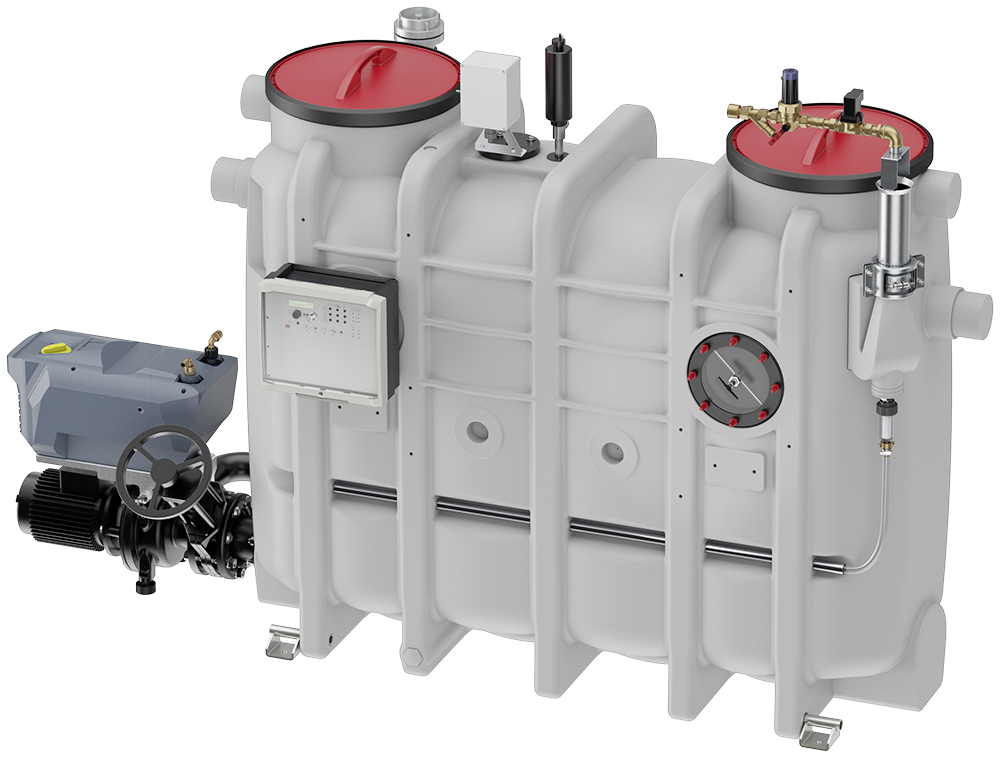

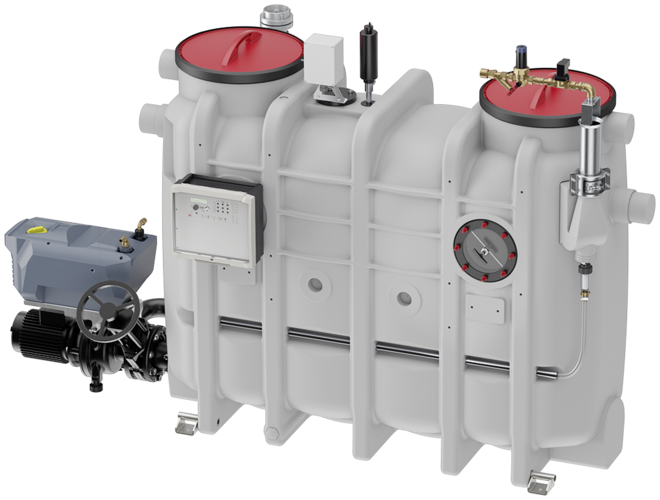

Grease separator LipuJet-P-OAP extension stage 3

Product benefits

  • Proven stability: 25 years
  • Odour-free emptying, cleaning and filling
  • Pre- and post-cleaning times can be set individually
  • Hydromechanical high-pressure cleaning – only a cold-water connection required
  • Minimises disposal and maintenance costs thanks to economic step increases in nominal size
  • Small delivery dimensions
  • Low weight

Product information

  • Grease separator plant as per DIN EN 1825 and DIN 4040-100
  • For indoors installation – frost free
  • With integrated sludge trap
  • Operating side: right/left
  • Draining connection, fire hose quick coupling B 2½"
  • Suction and emptying sump with drain plug socket 1"
  • Inspection window with wiper
  • Automatic high-pressure internal cleaning with pump
    • Nominal pressure: 175 bar
    • Capacity: 11,6 l/min
    • Chopping, mixing, rinsing in one process
  • Standard control with group fault reporting
  • Disposal pump with free flow impeller
    • Motor power: 3.0 kW/2850 rpm
    • Delivery performance: 20 m³/h at 1 bar medium delivery head
  • Stop valve upstream of disposal pump
  • Odour-proof maintenance opening, diameter: 450 mm
  • Filling device with magnetic valve (connection ¾") for automatic refilling
  • Electrical connector: 400V/50 Hz/16A/8,0 kW

Operation side: Right-hand

Nominal sizeNominal widthContentsWeightItem

number
Remember
Sludge trapGrease storeOverallEmptyFull
[l][l][l][kg][kg]
NS 1DN 1001061003201774973551.84.4211
NS 2DN 1002101004401826223552.84.4211
NS 3DN 1003001506301948243553.84.4211
NS 4DN 10040020083021010403554.84.4211
NS 5.5DN 150725360143028617163555.84.4211
NS 7DN 150800400160030519053557.84.4211
NS 8.5DN 150940475190032522253558.84.4211
NS 10DN 1501000520200033723373560.84.4211

Operation side: left

Nominal sizeNominal widthContentsWeightItem

number
Remember
Sludge trapGrease storeOverallEmptyFull
[l][l][l][kg][kg]
NS 1DN 1001061003201774973551.84.3211
NS 2DN 1002101004401826223552.84.3211
NS 3DN 1003001506301948243553.84.3211
NS 4DN 10040020083021010403554.84.3211
NS 5.5DN 150725360143028617163555.84.3211
NS 7DN 150800400160030519053557.84.3211
NS 8.5DN 150940475190032522253558.84.3211
NS 10DN 1501000520200033723373560.84.3211
Nominal sizeNominal widthContentsWeightOperation sideItem

number
Sludge trapGrease storeOverallEmptyFull
ImageNS 1DN 100106 l100 l320 l177 kg497 kgRight-hand3551.84.42
ImageNS 2DN 100210 l100 l440 l182 kg622 kgRight-hand3552.84.42
ImageNS 3DN 100300 l150 l630 l194 kg824 kgRight-hand3553.84.42
ImageNS 4DN 100400 l200 l830 l210 kg1040 kgRight-hand3554.84.42
ImageNS 5.5DN 150725 l360 l1430 l286 kg1716 kgRight-hand3555.84.42
ImageNS 7DN 150800 l400 l1600 l305 kg1905 kgRight-hand3557.84.42
ImageNS 8.5DN 150940 l475 l1900 l325 kg2225 kgRight-hand3558.84.42
ImageNS 10DN 1501000 l520 l2000 l337 kg2337 kgRight-hand3560.84.42
ImageNS 1DN 100106 l100 l320 l177 kg497 kgleft3551.84.32
ImageNS 2DN 100210 l100 l440 l182 kg622 kgleft3552.84.32
ImageNS 3DN 100300 l150 l630 l194 kg824 kgleft3553.84.32
ImageNS 4DN 100400 l200 l830 l210 kg1040 kgleft3554.84.32
ImageNS 5.5DN 150725 l360 l1430 l286 kg1716 kgleft3555.84.32
ImageNS 7DN 150800 l400 l1600 l305 kg1905 kgleft3557.84.32
ImageNS 8.5DN 150940 l475 l1900 l325 kg2225 kgleft3558.84.32
ImageNS 10DN 1501000 l520 l2000 l337 kg2337 kgleft3560.84.32

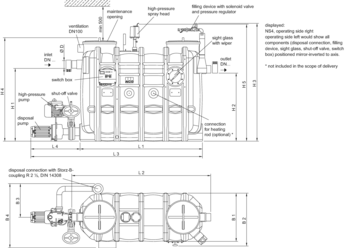

Scale drawing
Item

number
Nominal sizeDimensions
L1L2L3L4H1H2H3H4H5B1B2B3B4D
[mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm]
3551.84.42NS 1110013001800700830760151013001500700770500930110
3552.84.42NS 21100130018007001055985171015001700700770500930110
3553.84.42NS 31450165021507001055985171015001700700770500930110
3554.84.42NS 41760200024607001055985171015001700700770500930110
3555.84.42NS 5.51760200024607001250118019101700190095010206251180160
3557.84.42NS 71960220026607001250118019101700190095010206251180160
3558.84.42NS 8.52250248529507001250118019101700190095010206251180160
3560.84.42NS 102450269031507001250118019101700190095010206251180160
3551.84.32NS 1110013001800700830760151013001500700770500930110
3552.84.32NS 21100130018007001055985171015001700700770500930110
3553.84.32NS 31450165021507001055985171015001700700770500930110
3554.84.32NS 41760200024607001055985171015001700700770500930110
3555.84.32NS 5.51760200024607001250118019101700190095010206251180160
3557.84.32NS 71960220026607001250118019101700190095010206251180160
3558.84.32NS 8.52250248529507001250118019101700190095010206251180160
3560.84.32NS 102450269031507001250118019101700190095010206251180160

Features of base version:

  • Emptying and cleaning via maintenance opening
  • Odour build-up during emptying and cleaning

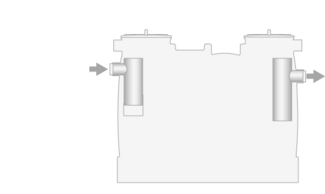

LipuJet-P-OB

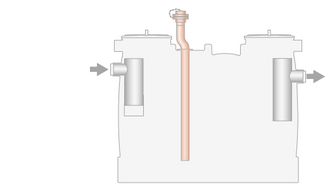

Features of upgrade level 1:

  • Connection for direct suction
  • Odour build-up only during cleaning
LipuJet-P-OD

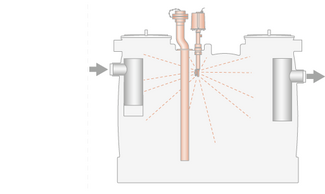

Features of upgrade level 2:

  • Connection for direct suction
  • High pressure cleaning operated manually
  • No odour build-up
LipuJet-P-OM (without disposal pump)

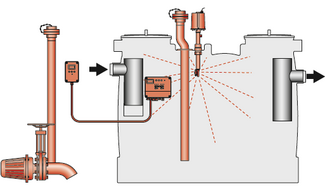

Features of upgrade level 3:

  • Connection for direct suction
  • Completely automatic programme
  • Optionally with drainage pump and remote control
  • No odour build-up
LipuJet-P-OA (without disposal pump)

Grease layer thickness measuring device

Suitable for
  • LipuJet-P
    • Oval NS 1 – 10
    • Round NS 2 – 22,5
  • LipuJet-S
    • Oval NS 1 – 10
    • Round NS 2 – 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
  • With visual display of fill level
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230VAC/5 VA
  • Max consumption approx. 12W
  • Weight: 2.8 kg
  • Rabattgruppe: 11

Remote control

Suitable for
  • Grease separator
    • LipuJet-P OA/OAP/RA/RAP
    • LipuJet-S OA/OAP/RA/RAP
    • LipuMax-P-DA
    • LipuSmart-P-OA/OAP
  • Starch separator FapuJet
Description
  • For internal fitting or fitting in connection boxes
  • Control line without protective conductor on-site
    • Up to 50 m: 7 x 1.0 mm²
    • 50 – 200 m 7 x 1.5 mm²
  • Weight: 1 kg
  • Rabattgruppe: 11

ACO Ozone Generator

Suitable for
  • Grease separators, indoors
  • Grease separators, outdoors
  • Lifting stations
  • Pumping stations
Description
  • ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
  • Material: acid-resistant stainless steel

Consists:

  • ACO Ozone - ozone generator
    • Size (L x W x H): 270 x 100 x 85 mm
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP20
  • ACO Ozone pump - feed pump
    • Size (L x W x H): 160 x 90 x 90 mm
    • Integrated filter
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP54
  • ACO Ozone bracket - wall bracket
    • Size (L x W x H): 295 x 110 x 90 mm
  • Hoses
  • Rabattgruppe: 11

Message system with GSM module

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets
Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg
  • Rabattgruppe: 12

Connection cable antenna GSM

Suitable for
  • GSM - Modul
Description
  • Length incl. connections: approx. 15 m
  • Cable type: RG58
  • Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
  • Only one extension cable may be used per GSM module
  • Usable in temperature range: -20°C to 85°C

Heating rod

Suitable for
  • Grease separators
Description
  • To liquefy grease layer
  • Incl. control
  • Electrical connector
    • 400 V/50 Hz/6.0 kW
  • Weight: 15 kg
  • Rabattgruppe: 11

Connection box

Suitable for
  • Grease separators
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection and remote control
  • Made from stainless steel, material grade 304
  • Fixing: "On wall"
  • Dimensions (width x height x depth): 500 x 500 x 160 mm
  • Weight: 11.6 kg
  • Rabattgruppe: 11

In-wall frame

Suitable for
  • Connection box
    • 7601.80.20
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Dimensions (width x height x depth): 565 x 565 x 15 mm
  • Weight: 1.2 kg
  • Rabattgruppe: 11

Storz coupling for swinging gas lines

Suitable for
  • For installation in connection box art. no. 7601.80.22
Description
  • Storz coupling 75B
  • For connection of the disposal vehicle pendulum gas line
  • For pipe connection Rp 2 ½" (female thread)
  • Weight: 1.8 kg
  • Rabattgruppe: 11

Connection box

Suitable for
  • Grease separators
    • LipuMax-P-D/DM/DA
    • LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
    • LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
  • Stach seperators FapuMax-P-DA
  • Oil separators Coalisator-P
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection DN 80
  • Made from stainless steel, material grade 304
  • "On wall" version
  • Door stop
    • Choice of left or right
    • Lockable door
  • Dimensions (width x height x depth): 370 x 330 x 250 mm
  • Weight: 10.4 kg
  • Rabattgruppe: 11

In-wall frame

Suitable for
  • Connection box
    • 7601.80.22
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Stainless steel, material grade 304
  • Dimensions (width x height x depth): 421 x 381 x 25 mm
  • Weight: 1 kg
  • Rabattgruppe: 11

Connection box

Suitable for
  • Grease separator
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For disposal connection, pendulum gas line (if necessary) and remote control
  • From stainless steel, material grade 304
  • "Surface mounted” version
  • Glass beaded front
  • Lockable door, left limit stop
  • Dimensions W x H x D: 300 x 725 x 160 mm
  • Weight: 10 kg
  • Rabattgruppe: 11

In-wall frame

Suitable for
  • Connection box
    • 7601.80.24
,
  • LipuLift-P-D/-DA/-DAP
Description
  • From stainless steel, material grade 304
  • "In-wall” version
  • Glass beaded front
  • Dimension W x H x D:
    • 405 x 830 x 30 mm
  • Weight: 2.1 kg
  • Rabattgruppe: 11

Sampling pot DN 100

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 1 – 4
  • Starch separator FapuJet-P-OAP
    • NS 0.5 – 1
Description
  • For installation of horizontal pipes DN 100 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.2 kg
  • Rabattgruppe: 11

Sampling pot DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2
Description
  • For installation of horizontal pipes DN 150 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.1 kg
  • Rabattgruppe: 11

Sampling pot DN 100

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 1 – 4
  • Starch separator FapuJet-P-OAP
    • NS 0.5 – 1
Description
  • For installation in vertical pipes DN 100 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.2 kg
  • Rabattgruppe: 11

Sampling pot DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2
Description
  • For installation in vertical pipes DN 150 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.1 kg
  • Rabattgruppe: 11

Coarse trap DN 100

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 1 – 4
  • Starch separator FapuJet-P-OAP
    • NS 0.5 – 1
Description
  • For installation in vertical pipes DN 100 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 9.7 kg
  • Rabattgruppe: 11

Coarse trap DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2
Description
  • For installation in vertical pipes DN 150 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 12.6 kg
  • Rabattgruppe: 11

Stop valve

Suitable for
  • Grease separators for free-standing installation
  • Starch separator for free-standing installation
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 100
  • Length (L): 50 mm
  • Spindle travel (H1 – H2): 365 – 465 mm
  • Manual wheel diameter: 200 mm
  • Weight: 15 kg
  • Rabattgruppe: 11

Stop valve

Suitable for
  • Grease separators for free-standing installation
  • Starch separator for free-standing installation
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 150
  • Length (L): 60 mm
  • Spindle travel (H1 – H2): 478 – 639 mm
  • Manual wheel diameter: 200 mm
  • Weight: 29.4 kg
  • Rabattgruppe: 11

Flange connection part

Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 100
  • Length (L): 75 mm
  • Weight: 6.5 kg
  • Rabattgruppe: 11

Flange connection part

Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 150
  • Length (L): 75 mm
  • Weight: 10 kg
  • Rabattgruppe: 11

Inlet valve DN 100

Suitable for
  • Wastewater lifting plant
  • Polyethylene grease separator
  • Polyethylene starch separator
  • Upstream tank plant
    • Typ 2 and 4
  • LipuMobil-P – Type 0.5
Description
  • Made of PVC
  • 110 mm push socket on both sides with rim sealing ring
  • Overall dimensions: 176 x 330 mm (L x H)
  • Weight: 3.1 kg
  • Rabattgruppe: 12

Inlet valve DN 150

Suitable for
  • Wastewater lifting plant
  • Polyethylene grease separator
  • Polyethylene starch separator
  • Upstream tank plant
    • Type 7 – Type 10
Description
  • Made of PVC
  • 160 mm push socket on both sides with rim sealing ring
  • Overall dimensions: 226 x 510 mm (L x H)
  • Weight: 7 kg
  • Rabattgruppe: 12

Operating Logbook

Suitable for
  • Grease separator
    • For underground installation
    • For free-standing installation
Description
  • Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
  • Format: A4 with double filing rings
  • Size: 60 pages
  • Laid out to cover 5 years
  • Weight: 0.3 kg
  • Rabattgruppe: 11
