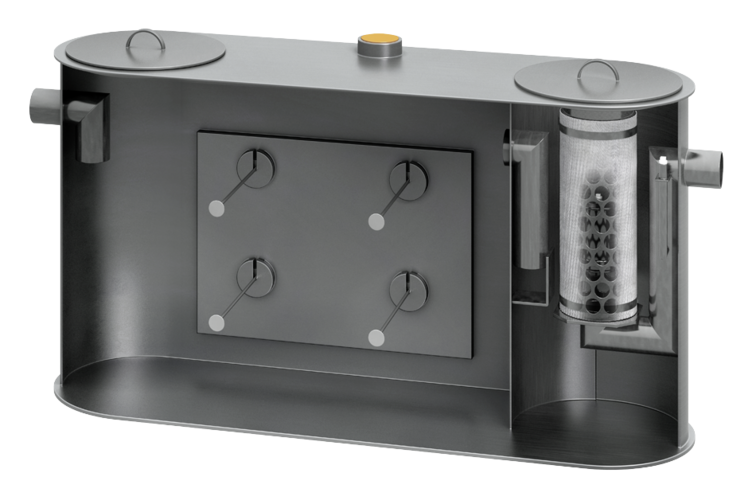

Oleopator P 399633

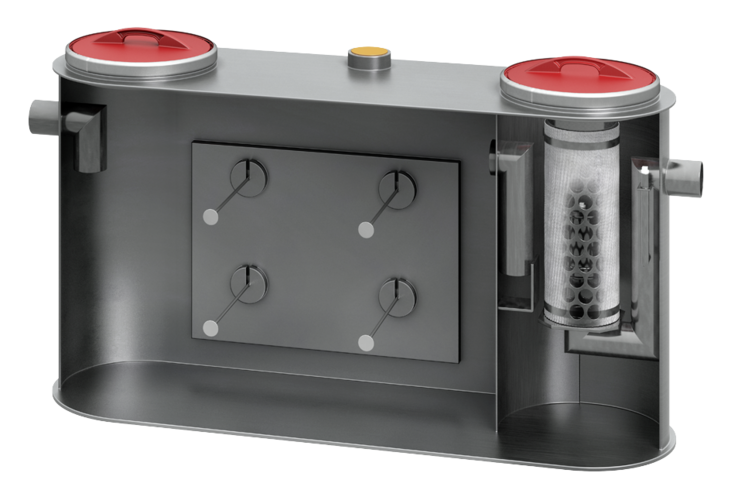

Oleopator P 399631

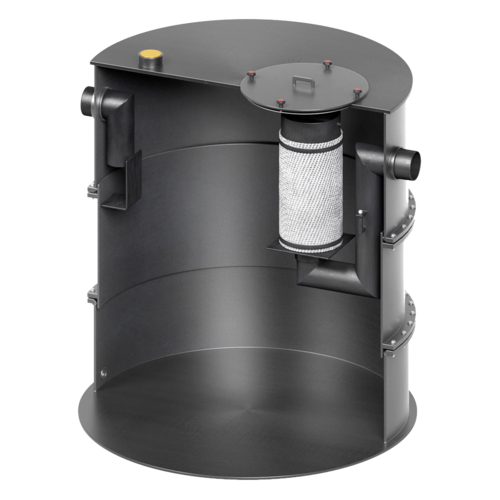

Oleopator P 548648

Light-Oil separator Oleopator P

Product benefits

  • All nominal sizes tested by independent test institute (LGA) - test report
  • Optimum accessibility guaranteed for maintenance, cleaning and disposal thanks to removable cage component
  • Separator with float switch of plastic, tared for light liquids with density until 0.90 g/cm3
  • Coalescence unit and float can be removed for cleaning without having to empty the separator

Product information

  • Easy to clean coalescence unit - durable wire mesh material
  • With plastic cover and clamping ring
  • With ventilation connection DN 100
  • Ready for additional installation of cable bushings (e.g. alarm units, etc.)
  • Alarm device - optional accessories
  • Light oil separator according to DIN EN 858, Class I
  • For freestanding installation in frost free rooms
  • Manufactured of welded polyethylene in round or oval design
  • With supporting cage and coalescence unit
  • Inner parts made of PEHD
  • Inlet and outlet with for respective pipe connection
  • Ready for additional alarm set installation
Nominal sizeVariantShapeInlet/outlet

DN/OD		ContentsMax. thickness of oil layerWeightItem

number		Remember
Sludge trapOil storageTotal volume
[l][l][l][mm][kg]
NS 3Cover Version 1:
Basic plastic cover with handle		RoundDN 1006011531127418600.LC
OvalDN 1003006038531170418601.LC
60060750311110418602.LC
NS 6Cover Version 1:
Basic plastic cover with handle		RoundDN 16018656025375418603.LC
OvalDN 1606001291140401155418604.LC
12002081990401210418605.LC
NS 10Cover Version 1:
Basic plastic cover with handle		RoundDN 16018656025375418606.LC
10002731590253137418607.LC
NS 15Cover Version 1:
Basic plastic cover with handle		RoundDN 2004641340277177418608.LC
15004642400277220418609.LC
NS 20Cover Version 1:
Basic plastic cover with handle		RoundDN 2005941540359195418610.LC
20008913410359325418611.LC
NS 30Cover Version 1:
Basic plastic cover with handle		RoundDN 2506541500422225418612.LC
300015136080422530418613.LC
NS 3Cover Version 2:
Durable plastic cover with handle, sealing
and metal clamping ring or another type
of odor proof cover solution.		RoundDN 1006011531127418600.HC
OvalDN 1003006038531170418601.HC
60060750311110418602.HC
NS 6Cover Version 2:
Durable plastic cover with handle, sealing
and metal clamping ring or another type
of odor proof cover solution.		RoundDN 16018656025375418603.HC
OvalDN 1606001291140401155418604.HC
12002081990401210418605.HC
NS 10Cover Version 2:
Durable plastic cover with handle, sealing
and metal clamping ring or another type
of odor proof cover solution.		RoundDN 16018656025375418606.HC
10002731590253137418607.HC
SegmentDN 15025005953620253430418897.HC
NS 15Cover Version 2:
Durable plastic cover with handle, sealing
and metal clamping ring or another type
of odor proof cover solution.		SegmentDN 20030006404017277440418898.HC
Nominal sizeVariantShapeInlet/outlet

DN/OD		ContentsMax. thickness of oil layerWeightItem

number
Sludge trapOil storageTotal volume
NS 3Cover Version 1:
Basic plastic cover with handle		RoundDN 1000 l60 l115 l311 mm27 kg418600.LC
NS 3Cover Version 1:
Basic plastic cover with handle		OvalDN 100300 l60 l385 l311 mm70 kg418601.LC
NS 3Cover Version 1:
Basic plastic cover with handle		OvalDN 100600 l60 l750 l311 mm110 kg418602.LC
NS 6Cover Version 1:
Basic plastic cover with handle		RoundDN 1600 l186 l560 l253 mm75 kg418603.LC
NS 6Cover Version 1:
Basic plastic cover with handle		OvalDN 160600 l129 l1140 l401 mm155 kg418604.LC
NS 6Cover Version 1:
Basic plastic cover with handle		OvalDN 1601200 l208 l1990 l401 mm210 kg418605.LC
NS 10Cover Version 1:
Basic plastic cover with handle		RoundDN 1600 l186 l560 l253 mm75 kg418606.LC
NS 10Cover Version 1:
Basic plastic cover with handle		RoundDN 1601000 l273 l1590 l253 mm137 kg418607.LC
NS 15Cover Version 1:
Basic plastic cover with handle		RoundDN 2000 l464 l1340 l277 mm177 kg418608.LC
NS 15Cover Version 1:
Basic plastic cover with handle		RoundDN 2001500 l464 l2400 l277 mm220 kg418609.LC
NS 20Cover Version 1:
Basic plastic cover with handle		RoundDN 2000 l594 l1540 l359 mm195 kg418610.LC
NS 20Cover Version 1:
Basic plastic cover with handle		RoundDN 2002000 l891 l3410 l359 mm325 kg418611.LC
NS 30Cover Version 1:
Basic plastic cover with handle		RoundDN 2500 l654 l1500 l422 mm225 kg418612.LC
NS 30Cover Version 1:
Basic plastic cover with handle		RoundDN 2503000 l1513 l6080 l422 mm530 kg418613.LC
NS 3Cover Version 2:
Durable plastic cover with handle, sealing
and metal clamping ring or another type
of odor proof cover solution.		RoundDN 1000 l60 l115 l311 mm27 kg418600.HC
NS 3Cover Version 2:
Durable plastic cover with handle, sealing
and metal clamping ring or another type
of odor proof cover solution.		OvalDN 100300 l60 l385 l311 mm70 kg418601.HC
NS 3Cover Version 2:
Durable plastic cover with handle, sealing
and metal clamping ring or another type
of odor proof cover solution.		OvalDN 100600 l60 l750 l311 mm110 kg418602.HC
NS 6Cover Version 2:
Durable plastic cover with handle, sealing
and metal clamping ring or another type
of odor proof cover solution.		RoundDN 1600 l186 l560 l253 mm75 kg418603.HC
NS 6Cover Version 2:
Durable plastic cover with handle, sealing
and metal clamping ring or another type
of odor proof cover solution.		OvalDN 160600 l129 l1140 l401 mm155 kg418604.HC
NS 6Cover Version 2:
Durable plastic cover with handle, sealing
and metal clamping ring or another type
of odor proof cover solution.		OvalDN 1601200 l208 l1990 l401 mm210 kg418605.HC
NS 10Cover Version 2:
Durable plastic cover with handle, sealing
and metal clamping ring or another type
of odor proof cover solution.		RoundDN 1600 l186 l560 l253 mm75 kg418606.HC
NS 10Cover Version 2:
Durable plastic cover with handle, sealing
and metal clamping ring or another type
of odor proof cover solution.		RoundDN 1601000 l273 l1590 l253 mm137 kg418607.HC
NS 10Cover Version 2:
Durable plastic cover with handle, sealing
and metal clamping ring or another type
of odor proof cover solution.		SegmentDN 1502500 l595 l3620 l253 mm430 kg418897.HC
NS 15Cover Version 2:
Durable plastic cover with handle, sealing
and metal clamping ring or another type
of odor proof cover solution.		SegmentDN 2003000 l640 l4017 l277 mm440 kg418898.HC
Item

number		Nominal sizeDimensions
HH1H2D1D2L1L2B
[mm][mm][mm][mm][mm][mm][mm][mm]
418600.LCNS 3830569549525581741
418601.LCNS 383858854815101670581
418602.LCNS 3106881877820152175581
418603.LCNS 61100742722100010801220
418604.LCNS 6132298794719102045770
418605.LCNS 613421087104723402475870
418606.LCNS 101100742722100010801220
418607.LCNS 10171513501330120012801420
418608.LCNS 151120786766150015801720
418609.LCNS 15172013861366150015801724
418610.LCNS 201330896876150015801724
418611.LCNS 20178013661346180018802030
418612.LCNS 301360878858150015801720
418613.LCNS 30210016281608220022802430
418600.HCNS 3830569549525581741
418601.HCNS 383858854815101670581
418602.HCNS 3106881877820152175581
418603.HCNS 61100742722100010801220
418604.HCNS 6132298794719102045770
418605.HCNS 613421087104723402475870
418606.HCNS 101100742722100010801220
418607.HCNS 10171513501330120012801420
418897.HCNS 10188015251505175019131974
418898.HCNS 15204516901670175019131999

Installation device for alarm device

Suitable for

Mandatory equipment for all alarm devices

Description

Alarm device installation kit

Item no.
418984

Sampling equipment

Description

For grease separators/light liquid separators for below ground installation. Sampling equipment consisting of manual pump and suction coupling, connection coupling, connecting hose and suction coupling and bolt connection

  • Suitable for inlet invert maximum T = 3,000 mm
Item no.
701246

Alarm device

Suitable for

Alarm device only for oil accumulation

Description

GSM or WiFi solution available on demand

For light oil separators P series, enables combined or separated control of oil, sludge and liquid level of electrical connection:

  • 230 V/50 - 60 Hz
  • IP 67
  • Cable connection: 5 m
Item no.
418869

Alarm device

Suitable for

Alarm device only for water accumulation

Description

GSM or WiFi solution available on demand

For light oil separators P series, enables combined or separated control of oil, sludge and liquid level of electrical connection:

  • 230 V/50 - 60 Hz
  • IP 67
  • Cable connection: 5 m
Item no.
418870

Alarm device

Suitable for

Alarm device for oil and water accumulation

Description

GSM or WiFi solution available on demand

For light oil separators P series, enables combined or separated control of oil, sludge and liquid level of electrical connection:

  • 230 V/50 - 60 Hz
  • IP 67
  • Cable connection: 5 m
Item no.
418871

Alarm device

Suitable for

Alarm device for oil, water and sludge accumulation

Description

GSM or WiFi solution available on demand

For light oil separators P series, enables combined or separated control of oil, sludge and liquid level of electrical connection:

  • 230 V/50 - 60 Hz
  • IP 67
  • Cable connection: 5 m
Item no.
418872
