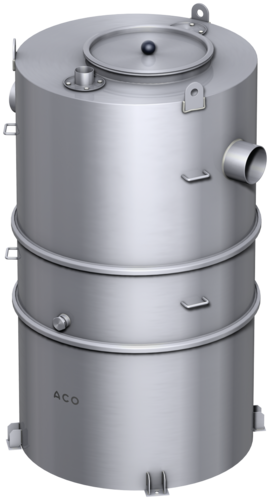

Light-Oil separator Coalisator-R
Product benefits
- Easy to transport and fit thanks to segmented construction
- Grease layer can be drawn-off directly
- If one coalescence insert is removed (cleaning) it can continue to be used as a Class II separator.
Product information
- Class I light oil separator
- Made from stainless steel, material grade 304
- DIN EN 858 and DIN 1999-100 compliant
- With automatic seal
- With polyethylene float
- Calibrated for light oils with density of 0.9 g/cm³
- Rubberised valve plates
- Round shape
- Modular construction
- With hydraulically streamlined sludge trap as per DIN EN 858
- With innovative coalescence technology (ACO Passavant system) for excellent separation effects based on reduced flow resistance.
- Coalescence insert
- Almost maintenance and wear free.
- Removable for cleaning, while functioning to DIN EN 858 standard as a Class II light oil separator continues.
- With 1 (2 for NS 10) odour proof maintenance openings
- Diameter: 500 mm
- Placed loosely
Infobox
Note: Also available in stainless steel, material grade 316 on request.

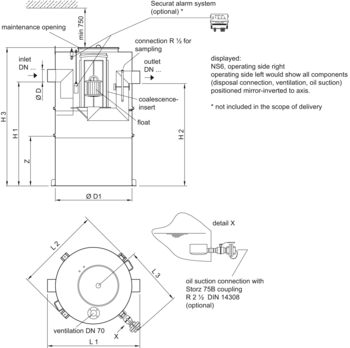

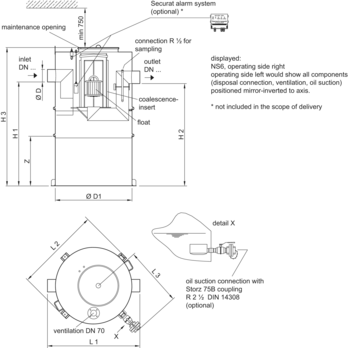

| Nominal size | Inlet/outlet as per DIN EN 877 | Sludge trap | Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L1 | L2 | L3 | D | H1 | H2 | H3 | H4 | D1 | Z/Anzahl Segmente | |||
| [l] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |||
| NS 3 | DN 100 | 600 | 1180 | 1090 | 800 | 110 | 985 | 965 | 1450 | 1650 | 1005 | 785/2 |
| NS 6 | DN 150 | 1200 | 1180 | 1090 | 800 | 160 | 1330 | 1310 | 1800 | 2000 | 1005 | 830/3 |
| NS 10 | DN 150 | 2500 | 1950 | 2060 | 1190 | 160 | 1095 | 1075 | 1600 | 1800 | 1750 | 600/3 |
Securat idSet 34 alarm system
Suitable for
- Coalisator-R/-RD
- Coalisator-E
Description
- Weight: 2.5 kg
- Rabattgruppe: 11
Cable set 20m
Suitable for
- Alarm system light oil separator
- Securat idOil 20
Description
- External diameter: 5.0 mm
- Blue
- As a connecting cable
- Weight: 0.1 kg
- Rabattgruppe: 11
Oil extractor
Suitable for
- Coalisator R/RD
Description
- Suction emptying device for separated light oils
- Nominal width: DN 65
- With fire hose quick coupling 75 B 2½" as per DIN 14308
- Weight: 3.8 kg
- Rabattgruppe: 11
Sampling pot DN 100
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 1 – 4
- Starch separator FapuJet-S
- NS 0.5 – 1
- Light oil separator Coalisator-R/-RD
- NS 3
Description
- Stainless steel, material grade 316
- Round shape
- Gradient drop: 70 mm
- For installation in DN 100 horizontal pipes coming from grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 9.9 kg
- Rabattgruppe: 11
Sampling pot DN 150
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 5.5 – 10
- Starch separator FapuJet-S
- NS 2
- Light oil separator Coalisator-R/-RD
- NS 6 – 10
Description
- Stainless steel, material grade 316
- Round shape
- Gradient drop: 70 mm
- For installation in DN 150 horizontal pipes coming from grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 12.2 kg
- Rabattgruppe: 11
Sampling pot DN 100
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 1 – 4
- Starch separator FapuJet-S
- NS 0.5 – 1
- Light oil separator Coalisator-R/-RD
- NS 3
Description
- Stainless steel, material grade 316
- Round shape
- For installation in DN 100 vertical pipes coming from grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 9.5 kg
- Rabattgruppe: 11
Sampling pot DN 150
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 5.5 – 10
- Starch separator FapuJet-S
- NS 2
- Light oil separator Coalisator-R/-RD
- NS 6 – 10
Description
- Stainless steel, material grade 316
- Round shape
- For installation in DN 150 vertical pipes coming from grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 11.3 kg
- Rabattgruppe: 11
Tension ring
Suitable for
- Light liquid separator cover
- Coalisator R/RD
Description
- Tension ring DN 500 made of stainless steel
- Coalisator R/RD cover attachment
- Meets the requirement of DIN 1999-100, edition 12/2016
