External Bypass - Merging Shaft Grp 276110

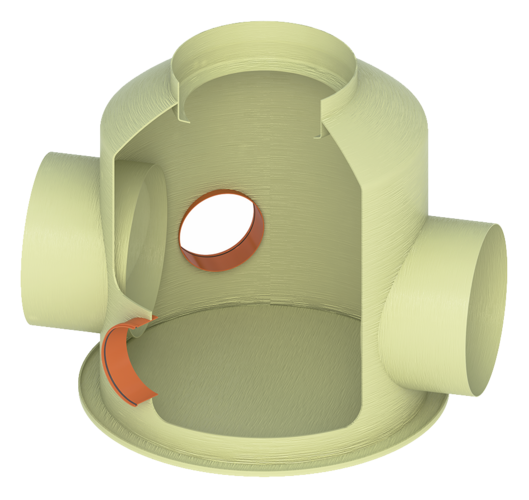

External Bypass - Merging shaft GRP

Product benefits

  • Option for drainage of large areas in combination with traditional separator technology

Product information

  • Shaft merges water that goes from separator and bypass line
  • Product body made of glass reinforced plastic
  • Pipe connection using suitable push sockets or pipe connectors (no welded sockets)
  • Suitable top sections
Nominal sizeInlet/outlet

DN/OD		WeightItem

number		Remember
[kg]
40 NS50014012770.01
50 NS50014012771.01
65 NS60018012772.01
80 NS60018012773.01
100 NS80029012774.01
200 (2 x NS 100) NS80029012775.01
130 (2 x NS 65) NS100030012776.01
160 (2 x NS 80) NS100030012777.01
200 (2 x NS 100) NS120042012778.01
Nominal sizeInlet/outlet

DN/OD		WeightItem

number
40 NS500140 kg12770.01
50 NS500140 kg12771.01
65 NS600180 kg12772.01
80 NS600180 kg12773.01
100 NS800290 kg12774.01
200 (2 x NS 100) NS800290 kg12775.01
130 (2 x NS 65) NS1000300 kg12776.01
160 (2 x NS 80) NS1000300 kg12777.01
200 (2 x NS 100) NS1200420 kg12778.01
Item

number		Nominal sizeDimensions
H1H2D1D2T tank
[mm][mm][mm][mm][mm]
12770.0140 NS17070100012401130
12771.0150 NS17070100012401130
12772.0165 NS340140120014001383
12773.0180 NS340140120014001383
12774.01100 NS250150150017201440
12775.01200 (2 x NS 100) NS250150150017201450
12776.01130 (2 x NS 65) NS250150150017201673
12777.01160 (2 x NS 80) NS250150150017201673
12778.01200 (2 x NS 100) NS260160180020401863
Top section for PE or GRP shafts (600)

Top section for PE or GRP shafts (600)

Top section for PE or GRP shafts

Top section for PE or GRP shafts

Top sections for sampling units

Top sections for sampling units

Sampling units

Sampling units
