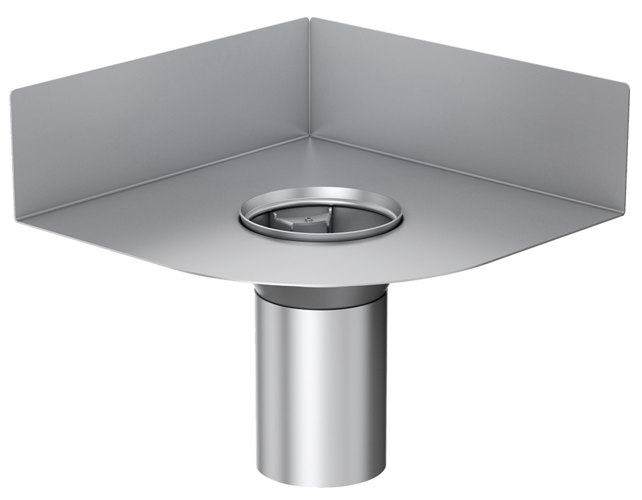

Gully body ACO direct balcony drain with corner upstand for the wall

	Nominal width	Flow rate as required by DIN	Socket inclination	Dimensions					Item number	Downloads	Remember
		Flow rate as required by DIN		d1	l1	l2	L3	L4
		[l/s]		[mm]	[mm]	[mm]	[mm]	[mm]
	DN 50	6.0	90°	53	188	200	30	30	0174.58.90
	DN 70	5.5	90°	73	188	200	30	30	0174.58.91
	DN 100	7.0	90°	102	188	200	30	30	0174.58.92

	Nominal width	Flow rate as required by DIN	Socket inclination	Dimensions						Item number	Downloads	Remember
		Flow rate as required by DIN		d1	d2	l1	l2	L3	L4
		[l/s]		[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
	DN 50	6.0	90°	53	73	188	200	30	30	0174.58.93
	DN 70	5.5	90°	73	102	188	200	30	30	0174.58.94
	DN 100	7.0	90°	102	133	188	200	30	30	0174.58.95

	Nominal width	Flow rate as required by DIN	Item number

	DN 50	6.0 l/s	0174.58.90
	DN 70	5.5 l/s	0174.58.91
	DN 100	7.0 l/s	0174.58.92
	DN 50	6.0 l/s	0174.58.93
	DN 70	5.5 l/s	0174.58.94
	DN 100	7.0 l/s	0174.58.95

Bottom section

Item no.
0174.58.86

Bottom section

Item no.
0174.58.87

Bottom section

Item no.
0174.58.88

Insulation casing

Item no.
0174.59.09

Insulation casing

Item no.
0174.59.10

Insulation casing

Item no.
0174.59.11

Grating holder

Description

Made of plastic
Weight: 0.2 kg

Item no.
0174.58.61

Grating holder

Description

Made of plastic
Weight: 0.2 kg

Item no.
0174.58.71

Grating holder

Description

Stainless steel, material grade 304
With plastic coating
Weight: 0.8 kg

Item no.
0174.58.62

Grating holder

Description

Stainless steel, material grade 304
With plastic coating
Weight: 1.1 kg

Item no.
0174.58.72

Grating holder

Description

Stainless steel, material grade 304
With strainer perforations
Weight: 0.7 kg

Item no.
0174.58.73

Grating holder

Description

Stainless steel, material grade 304
With strainer perforations
Weight: 0.6 kg

Item no.
0174.58.63

Casing bell

Description

Made of plastic (PE)
Can be pushed on
DN 50
Weight: 0.1 kg

Item no.
0174.43.50

Casing bell

Description

Made of plastic (PE)
Can be pushed on
DN 70
Weight: 0.2 kg

Item no.
0174.43.51

Casing bell

Description

Made of plastic (PE)
Can be pushed on
DN 100
Weight: 0.2 kg

Item no.
0174.43.52

Strainer

Suitable for

Balcony and terrace gullies
- Direct gully with supporting flange and with bell

Description

Made of stainless steel
DN 70
h = 11 mm
d = 117 mm
Weight: 0.1 kg

Item no.
0174.96.82

Strainer

Suitable for

Balcony and terrace gullies
- Direct gully with supporting flange and with bell

Description

Made of stainless steel
DN 100
h = 8 mm
d = 141 mm
Weight: 0.2 kg

Item no.
0174.52.49

Ring strainer

Suitable for

Balcony and terrace gullies
- With/without bell, with compression seal flange
- With supporting edge
- With adhesive flange

Description

Made of stainless steel
DN 70
h = 12 mm
d = 118 mm
d1 = 76 mm
Weight: 0.1 kg

Item no.
0174.52.56

Ring strainer

Description

Made of stainless steel
DN 100
h = 10 mm
d = 141 mm
d1 = 103 mm
Weight: 0.1 kg

Item no.
0174.52.57

Grating

Suitable for

Grating holders DN 50/DN 70
- 0174.58.61, 0174.58.62, 0174.58.63

Description

Stainless steel, material grade 304
Grating dimensions (R): 117 x 117 mm
Weight: 0.2 kg

Item no.
0174.52.58

Grating

Suitable for

Grating holder DN 100
- 0174.58.71, 0174.58.72, 0174.58.73

Description

Stainless steel, material grade 304
Grating dimensions (R): 142 x 142 mm
Weight: 0.3 kg

Item no.
0174.52.59

Grating

Description

Weight: 0.2 kg

Item no.
0174.58.66

Grating

Suitable for

Grating holders DN 70
- 0174.58.61, 0174.58.62, 0174.58.63

Description

Stainless steel, material grade 304
Grating dimensions (R): 117 x 117 mm
Weight: 0.2 kg

Item no.
0174.52.60

Grating

Suitable for

Grating holder DN 100
- 0174.58.71, 0174.58.72, 0174.58.73

Description

Stainless steel, material grade 304
Grating dimensions (R): 142 x 142 mm
Weight: 0.2 kg

Item no.
0174.52.61

Strainer pipe

Description

Stainless steel, material grade 304
Shape: round
Including sealing element
Weight: 0.8 kg

Item no.
0174.58.64

Strainer pipe

Description

Stainless steel, material grade 304
Shape: round
Including sealing element
Weight: 0.9 kg

Item no.
0174.58.74

Flange seal set

Suitable for

Flat roof gullies Passavant Spin made of cast iron
- DN 70/DN 100
Flat roof gullies Jet made of cast iron
- DN 50

Description

Consisting of:
- 1 flange seal for loose flange
- 1 flange seal for fixed flange
Thickness: 4 mm
EPDM
Weight: 0.4 kg

Item no.
5169.20.26

Flange seal set

Suitable for

Flat roof gullies Passavant Spin made of cast iron
- DN 70/DN 100
Flat roof gullies Jet made of cast iron
- DN 50

Description

Consisting of:
- 1 flange seal for loose flange
- 1 flange seal for fixed flange
Thickness: 4 mm
PVC-weich
Weight: 0.4 kg

Item no.
5169.30.26

Flange seal set

Suitable for

Flat roof gullies Passavant Spin made of cast iron
- DN 70/DN 100
Flat roof gullies Jet made of cast iron
- DN 50

Description

Consisting of:
- 1 flange seal for loose flange
- 1 flange seal for fixed flange
Thickness: 4 mm
NBR/SBR
Weight: 0.5 kg

Item no.
5169.40.26
