How to drain large external areas efficiently?
Drainage system for Brewery loading area

In external areas of a brewery, the challenge is to ensure that drainage systems can withstand the toughest load classes and quickly drain large quantities of rain water containing solid particles. Your drainage system needs to be capable of dealing with the high volumes of heavy rainfall, sand and dirtwhich can easily overload public sewers.

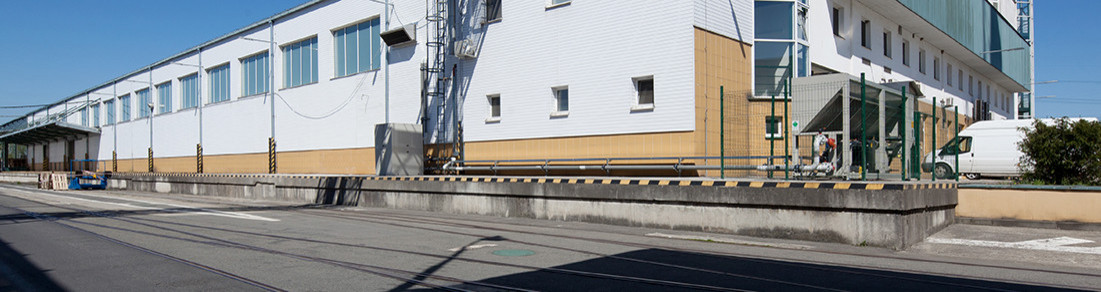

Brewery loading area

This requirement can be easily met if attention is paid to key areas with the aim of protecting water from people and people from water. Discover example of solutions that are designed to perform in brewing logistics and delivery areas. ACO is well known brand also for it's surface water management solutions.

Visit our local pages to find out more.

U MG 5085 1220x09 290

Drainage system components

Monoblock RD 200V 400x400
ACO DRAIN® Monoblock

ACO DRAIN® Monoblock is a drainage system with a monolithic design: The channel and cover are produced
from polymer concrete in one casting. The result is an extremely stable unit without loose parts. There is also no need for bonded joints. The unique monocast design guarantees maximum safety and stability, even under the extreme loads of large area drainage.

Stormbrixx Zusammenbau 3000 Orez 300x300
ACO Stormbrixx®

ACO Stormbrixx HD infiltration system is not only suitable for block infiltration but also for the block storage and retention of surface water. The surface water is stored temporarily in the numerous voids in the infiltration system and can then be discharged in a controlled way. In this way, overloading of the sewer
network is avoided in cases of heavy rainfall.

ACO Sedismart-C 400x400
ACO Sedismart-C

ACO Sedismart-C is used to separate sediments from surface water and to thus protect the downstream block storage from becoming blocked with sand. The internal body around and through which the surface water to be treated must flow, causes the water in the sludge trap to flow in a rotational pattern. The flowing time is extended and the sedimentation of solids is optimised.

Flow Restriction System 725150 Gross
ACO flow restriction systems

The discharged quantities from the ACO Stormbrixx block storage are adjusted and controlled via the ACO flow restriction manhole, a manhole structure made of reinforced concrete with integrated flow
restriction valve for individual reduction of the discharge pipe cross section. In this way, collected surface water is discharged into the sewer in a controlled way, without overloading it.
