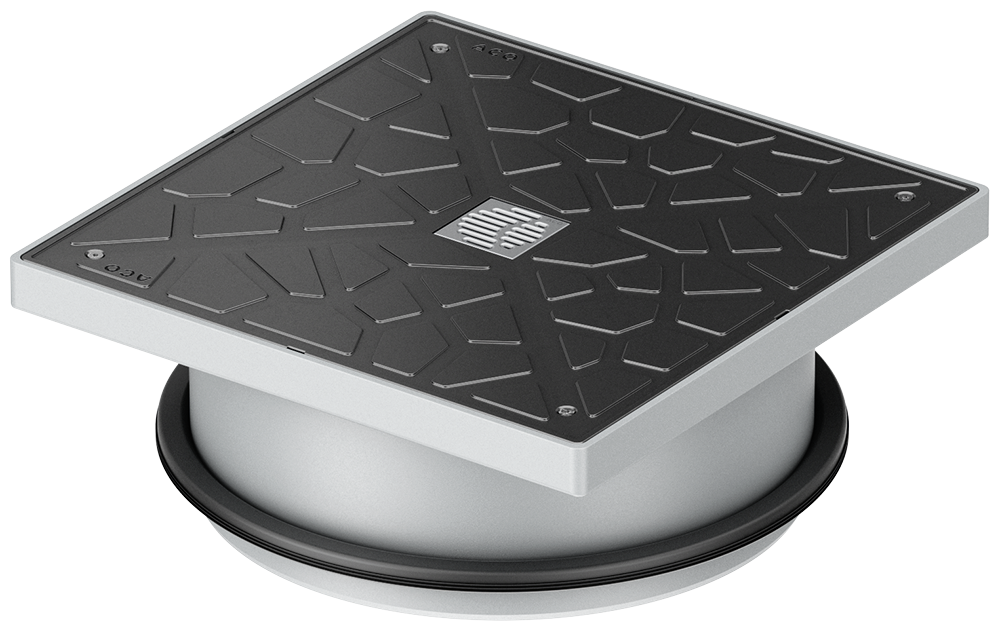

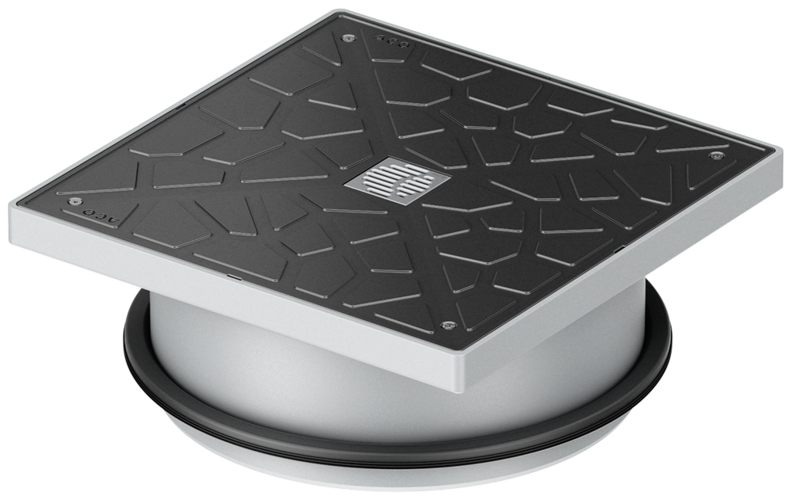

Top Section Muli-flex 707613

Top section Muli-Flex

Product benefits

  • Height adjustable and rotatable
  • Class A15 and B125 available
  • Depending on the model, it can be used for wasgte water with or without faeces

Product information

  • Suitable for:
    • Lift plant Muli-Flex
  • Cover "Voronoi-Design"
    • Odor proof locked
    • Load class: A15
    • Cover dimensions: 655 x 655 mm
    • Cover with or without integrated floor gully and foul air trap
  • Cover B125
    • Load class: B125
    • Without floor drain
    • Screwed and waterproof
    • Clear width: 605 mm
    • Closed design
  • Available form polyethylene or stainless steel
  • With lip seal
  • Height adjustable from 70–400 mm
  • Total installation height with Muli-Flex tank: 1,070 – 1,400 mm

application: Lifting plants for non-faecal wastewater

TypeMaterialClassItem

number		Remember
Top section stainless steel with manhole cover class B125 and accessoriesStainless steel/concrete/BEGUB 125301679212
ImagePE/PURA 151204.00.1012
ImagePE/PURK 31204.00.1112
ImageEdelstahl/PURA 151204.00.1212
ImageEdelstahl/PURK 31204.00.1312

application: Lifting plants for faecal wastewater

TypeMaterialClassItem

number		Remember
Top section stainless steel with manhole cover cl. B125 intermediate cover and accessoriesStainless steel/PUR/BEGUB 125301679312
ImagePE/PURA 151204.00.2012
ImageEdelstahl/PURA 151204.00.2112
TypeMaterialapplicationClassItem

number
Top section stainless steel with manhole cover class B125 and accessoriesStainless steel/concrete/BEGULifting plants for non-faecal wastewaterB 1253016792
ImagePE/PURLifting plants for non-faecal wastewaterA 151204.00.10
ImagePE/PURLifting plants for non-faecal wastewaterK 31204.00.11
ImageEdelstahl/PURLifting plants for non-faecal wastewaterA 151204.00.12
ImageEdelstahl/PURLifting plants for non-faecal wastewaterK 31204.00.13
Top section stainless steel with manhole cover cl. B125 intermediate cover and accessoriesStainless steel/PUR/BEGULifting plants for faecal wastewaterB 1253016793
ImagePE/PURLifting plants for faecal wastewaterA 151204.00.20
ImageEdelstahl/PURLifting plants for faecal wastewaterA 151204.00.21

Muli-Flex – underground installation

application: Lifting plants for non-faecal wastewater

TypeMaterialClassItem

number		Remember
Top section stainless steel with manhole cover class B125 and accessoriesStainless steel/concrete/BEGUB 125301679212
ImagePE/PURA 151204.00.1012
ImagePE/PURK 31204.00.1112
ImageEdelstahl/PURA 151204.00.1212
ImageEdelstahl/PURK 31204.00.1312

application: Lifting plants for faecal wastewater

TypeMaterialClassItem

number		Remember
Top section stainless steel with manhole cover cl. B125 intermediate cover and accessoriesStainless steel/PUR/BEGUB 125301679312
ImagePE/PURA 151204.00.2012
ImageEdelstahl/PURA 151204.00.2112
TypeMaterialapplicationClassItem

number
Top section stainless steel with manhole cover class B125 and accessoriesStainless steel/concrete/BEGULifting plants for non-faecal wastewaterB 1253016792
ImagePE/PURLifting plants for non-faecal wastewaterA 151204.00.10
ImagePE/PURLifting plants for non-faecal wastewaterK 31204.00.11
ImageEdelstahl/PURLifting plants for non-faecal wastewaterA 151204.00.12
ImageEdelstahl/PURLifting plants for non-faecal wastewaterK 31204.00.13
Top section stainless steel with manhole cover cl. B125 intermediate cover and accessoriesStainless steel/PUR/BEGULifting plants for faecal wastewaterB 1253016793
ImagePE/PURLifting plants for faecal wastewaterA 151204.00.20
ImageEdelstahl/PURLifting plants for faecal wastewaterA 151204.00.21


Muli-Flex – underground installation
