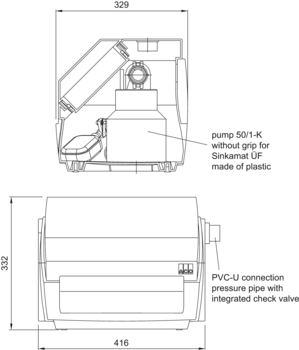

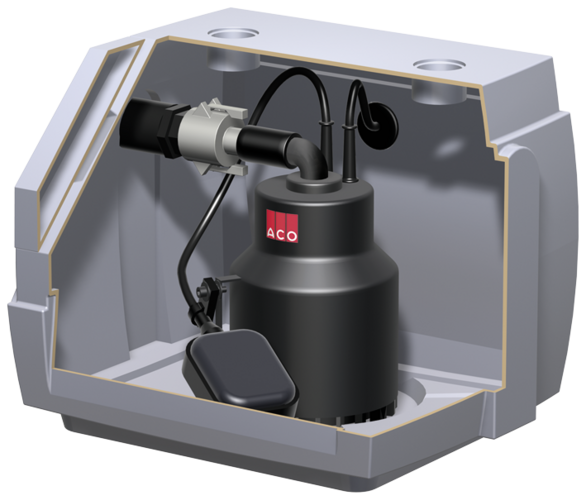

Waste water lifting plant Sinkamat-K


Product benefits

  • Quick-lock coupling for tool-free fitting/removal of the pump
  • Small dimensions thanks to innovative shape
  • Maintenance without dismantling the inlet siphon

Product information

  • Applications:
    • For above-ground installation in frost-free rooms below the backflow level such as e.g. cellars, hobby rooms and laundries.
    • For domestic grey water without faecal content from showers, washbasins etc.
  • Tested to DIN EN 12050-2
  • With polyethylene tank
  • With multiple connection options up to DN 50
  • With forward-facing maintenance opening
  • Tank ventilation via active charcoal filter
  • Grey water submersible pump with robust alternating current motor
  • Motor housing and shaft made of stainless steel
  • Pump housing and impeller made of plastic
  • Pump housing seal to motor using rotating mechanical seal
  • With 10 m cable and EEC plug
  • With ball float switch
  • With integrated non-return flap 1¼"
  • Pressure line connection as per EN ISO 15493
    • PVC-U, 50‑40-R 1¼"

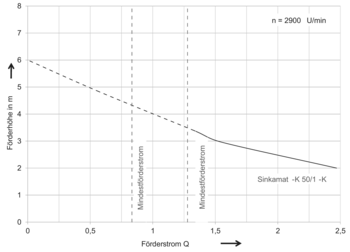

TypeDelivery headDelivery flow Q with overall delivery head HMedia temperature
2 m3 m4 m6 mNormalMaximum
[m][l/s][l/s][l/s][l/s][°C][°C]
50/1-K2 – 4.51.61.941.00.354070

Connection and flood module set

Suitable for
  • Triplex-K backflow stops
    • DN 100 – DN 150
  • Quatrix-K backflow stops
  • All wastewater lifting plants
  • All separators
Description
  • To report a leak caused for example by a pipe bursting
  • For electrically conducting liquids
  • With volt free contact
  • Visible and audible alarms (approx. 80 dB)
  • Dimensions (width x height x depth): 160 x 120 x 75 mm
  • Protection level: IP 65
  • Operating voltage: 230 V/AC 50/60 Hz
  • Plug and use: 1.4 m
  • Overflow indicator with 10 m cable
  • Weight: 1.1 kg

Inlet socket DN 50

Suitable for
  • Junior basement gully with backflow stop
  • Basement gully DN 100
  • Sinkamat-K (free-standing)
  • LipuSmart-P
  • Muli-Mini
Description
  • Made of plastic
  • For lateral input option
  • For fitting on-site
  • Weight: 0.1 kg
