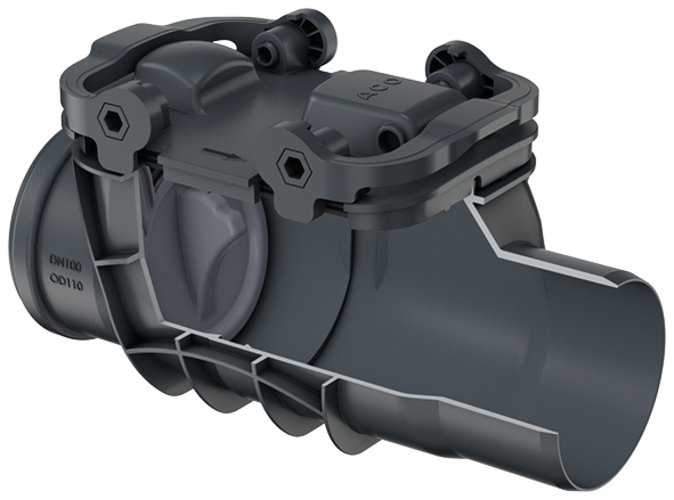

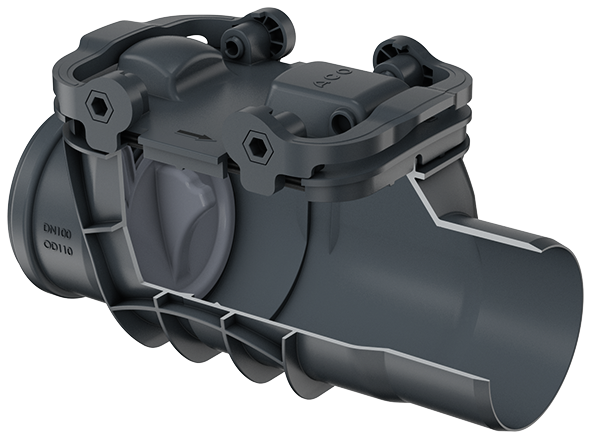

Triplex type 0 single backflow stops - for exposed pipes

Product benefits

Compact size
Toolless maintenance
Quick-release fastening for cover locking
From 8 mm gradient difference
Easy cleaning and maintenance
CCTV camera accessible

Product information

Made of plastic
Type 0 tested to EN 13564
For rainwater harvesting systems with an automatically closing backflow flap
With large cleaning and maintenance opening

Infobox

Testing in-situ possible, according EN 13564, first for Triplex DN 50/DN 70

	Installation	Description	Nominal width	Weight	Item number		Downloads	Remember
	Installation	Description	Nominal width	[kg]	Item number		Downloads	Remember
	For installation in free-standing pipes	Type 0, suitable for rainwater utilisation systems Tested to DIN EN 13564	DN 100	1.4	2110.00.00	7
	For installation in free-standing pipes	Type 0, suitable for rainwater utilisation systems Tested to DIN EN 13564	DN 125	2.5	2125.00.00	7
	For installation in free-standing pipes	Type 0, suitable for rainwater utilisation systems Tested to DIN EN 13564	DN 150	2.6	2150.00.00	7

	Installation	Description	Nominal width	Weight	Item number
	For installation in free-standing pipes	Type 0, suitable for rainwater utilisation systems Tested to DIN EN 13564	DN 100	1.4 kg	2110.00.00
	For installation in free-standing pipes	Type 0, suitable for rainwater utilisation systems Tested to DIN EN 13564	DN 125	2.5 kg	2125.00.00
	For installation in free-standing pipes	Type 0, suitable for rainwater utilisation systems Tested to DIN EN 13564	DN 150	2.6 kg	2150.00.00

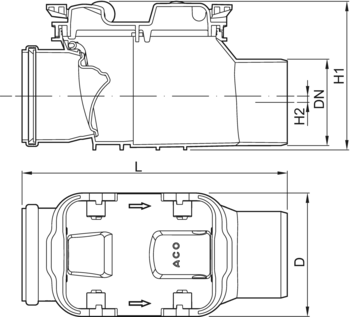

Scale drawing

Nominal width	Dimensions					Recess
	D	L	L1	H1	H2	Recess
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
DN 100	157	337	236	189	8	580 x 260
DN 125	214	403	306	241	10	665 x 320
DN 150	214	457	306	241	10	760 x 320

Locking cover

Suitable for

ACO backflow stops Triplex
DN 100

Description

With emergency lever
Weight: 0.6 kg
Rabattgruppe: 7

Item no.
2110.20.11

Locking cover

Suitable for

ACO backflow stops Triplex
- DN 125/DN 150

Description

With emergency lever
Weight: 1.1 kg
Rabattgruppe: 7

Item no.
2150.20.11

Cover

Suitable for

ACO single backflow stops Triplex
- DN 100

Description

Without emergency lever
Weight: 0.6 kg
Rabattgruppe: 7

Item no.
2110.00.11

Cover

Suitable for

ACO single backflow stops Triplex
- DN 125/DN 150

Description

Without emergency lever
Weight: 1.1 kg
Rabattgruppe: 7

Item no.
2150.00.11

Insertion part

Suitable for

ACO backflow stops Triplex
- DN 100

Description

Insertion part to retrofit
Weight: 0.2 kg
Rabattgruppe: 7

Item no.
2110.20.15

Insertion part

Suitable for

ACO backflow stops Triplex
- DN 125/DN 150

Description

Insertion part to retrofit
Weight: 0.3 kg
Rabattgruppe: 7

Item no.
2150.20.15

Backflow stop flap

Suitable for

ACO backflow stops Triplex
- DN 100

Description

Backflow protective cap to retrofit
Weight: 0.1 kg
Rabattgruppe: 7

Item no.
2110.20.12

Backflow stop flap

Suitable for

ACO backflow stops Triplex
- DN 125/DN 150

Description

Backflow protective cap to retrofit
Weight: 0.2 kg
Rabattgruppe: 7

Item no.
2150.20.12

Test hopper

Suitable for

ACO backflow stops

Description

For servicing all dimensions
Weight: 0.1 kg
Rabattgruppe: 7

Item no.
2110.20.13

Locking screw

Suitable for

ACO backflow stops

Description

For all dimensions
Weight: 0.1 kg
Rabattgruppe: 7

Item no.
2110.20.14
