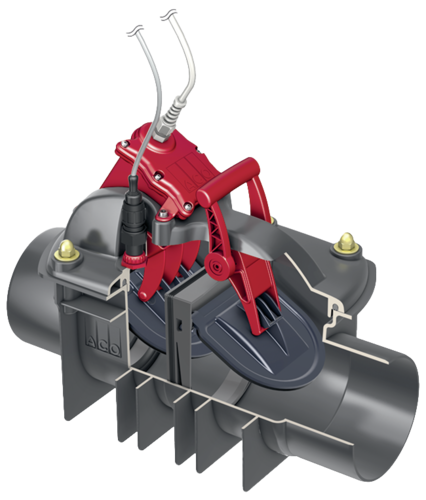

Quatrix-K – for exposed pipework
Product benefits
- Only 12 mm gradient difference
- Only 71 cm installation opening without reverse gradient
- Optimum for renovation
- CCTV camera accessible
- Pneumatic measurement system for fault-free operation
Product information
- Made of plastic
- For installation in exposed pipes
- Type 3F tested to EN 13564
- With double backflow safety valve
- With 1 automatic operating seal
- With 1 manual emergency valve
- With large cleaning and maintenance opening and test pipe
- With ready to plug in, electrical control unit IP 54 with integrated 4-week self-monitoring
- With visual and acoustic backflow signal
- With emergency power supply
- With floating contact for remote messaging
- Motor is flood-proof IP 68 (3 m, 24 h)
- Cable length: 5 m (extension to 30 m possible)
- Connection pipes made with spigots in the factory

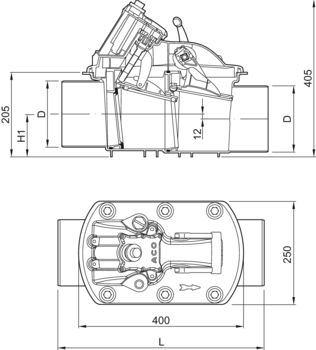

| Nominal width | Dimensions | Recess | ||
|---|---|---|---|---|
| D | L | H1 | ||
| [mm] | [mm] | [mm] | [mm] | |
| DN 100 | 110 | 460 | 79 | 350 x 710 |
| DN 125 | 125 | 469 | 86 | 350 x 730 |
| DN 150 | 160 | 504 | 104 | 350 x 820 |

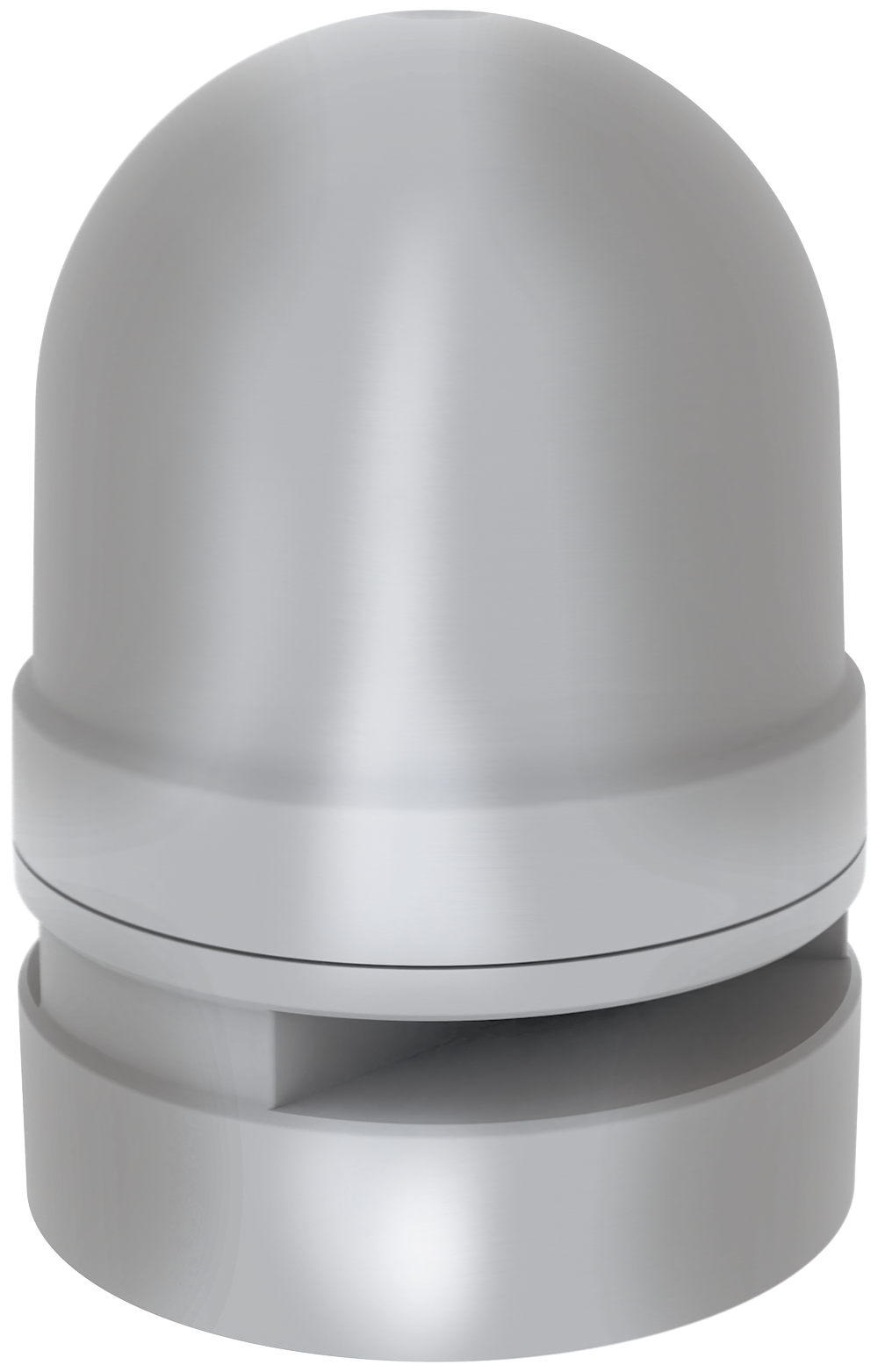

Signal horn
Suitable for
- Pump stations with ACO MultiControl switching device
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V AC
- Power consumption: 30mA
- Ø62x85 mm (L/B x T)
- Protection: IP66
- 95 dB(A)
- Weight: 0.3 kg
- Rabattgruppe: 12
Flashing light
Suitable for
- Pump stations with ACO MultiControl switching device
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V
- Power consumption: 40 mA
- Weight: 1 kg
- Rabattgruppe: 12
Flashing light
Description
- Rabattgruppe: 12
Message system with GSM module
Suitable for
- All grease separators
- Grease layer thickness measuring device
- Pre-tank plants
- Technical processing systems
- Quatrix-K backflow preventer type 3F
- Sinkamat-K (underfloor) duo
- Muli lifting units
- Pumping stations
- Installation sets
Description
- Parameter via app (Android & iOs)
- Mains-independent alarm via 12V lead-gel battery
- Optical and acoustic alarm message
- Freely configurable inputs
- 6 digital inputs with LED status display
- 1 analogue
- 1 alarm output 12 V
- Alarm forwarding via SMS to mobile phones
- For mounting outside the hazardous area
- Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
- Protective doctor: IP54
- Operating voltage: 230 V/AC 50/60 Hz
- Weight: 2 kg
- Rabattgruppe: 12
Connection cable antenna GSM
Suitable for
- GSM - Modul
Description
- Length incl. connections: approx. 15 m
- Cable type: RG58
- Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
- Only one extension cable may be used per GSM module
- Usable in temperature range: -20°C to 85°C
Signalling unit
Suitable for
- Faecal matter backflow automatic stop Quatrix-K type 3F
- All Muli wastewater lifting plants
- Upstream tank plant mono/duo
- Muli-Max
- Powerlift–P / Powerlift-P/F-H
- Sinkamat –K/-KD
- Sinkamat-Z
- Sinkamat-Z (underfloor)
- Duo
- LipuLift-P
Description
- Self-charging
- With floating contact
- Visual and acoustic
- Without contact transmitter
- For mounting outside the potentially explosive atmosphere
- Dimensions: 175 x 125 x 75 mm W x H x D
- Protection type: IP65
- Operating voltage: 230 V/AC 50/60 Hz
- Ready to plug in with cable: 2 m
- Weight: 1.4 kg
- Rabattgruppe: 12
Connection and flood module set
Suitable for
- Triplex-K backflow stops
- DN 100 – DN 150
- Quatrix-K backflow stops
- All wastewater lifting plants
- All separators
Description
- To report a leak caused for example by a pipe bursting
- For electrically conducting liquids
- With volt free contact
- Visible and audible alarms (approx. 80 dB)
- Dimensions (width x height x depth): 160 x 120 x 75 mm
- Protection level: IP 65
- Operating voltage: 230 V/AC 50/60 Hz
- Plug and use: 1.4 m
- Overflow indicator with 10 m cable
- Weight: 1.1 kg
- Rabattgruppe: 12

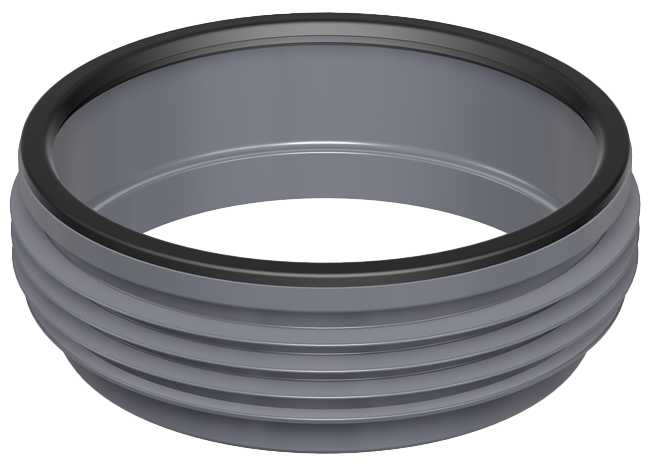

Extension part
Suitable for
- Backflow stops for installation in the floor plate
- Sinkamat-K
- Muli-UF (underfloor)
- Quatrix-K
Description
- With lip seal
- Graduated height adjustment every 116 mm
- For Sinkamat-K maximum 2 extension pieces may be mounted
- For top section: 360 x 300mm
- For Triplex-K, Quatrix-K and Muli-UF maximum 1 extension pieces may be mounted
- Weight: 3.4 kg
- Rabattgruppe: 7

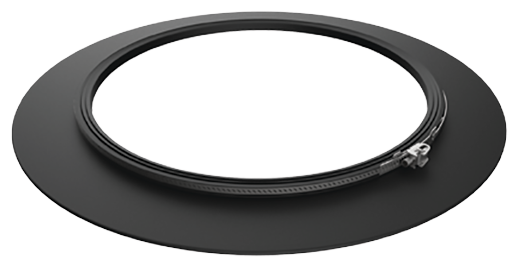

Sealing flange
Suitable for
- Backflow stops for installation in the floor plate
- Sinkamat-K
- Muli-UF (underfloor)
- Quatrix-K
Description
- For building into waterproof concrete
- Maximum groundwater level: 2 m
- Weight: 4.2 kg
- Rabattgruppe: 7
Top section
Suitable for
- Backflow stops for installation in the floor plate
Description
- Weight: 2.6 kg
- Rabattgruppe: 7
Reversible cover plate
Suitable for
- Backflow stops for installation in the floor plate
Description
Reversible cover plate for tile or plastic cover
- Weight: 1 kg
- Rabattgruppe: 7

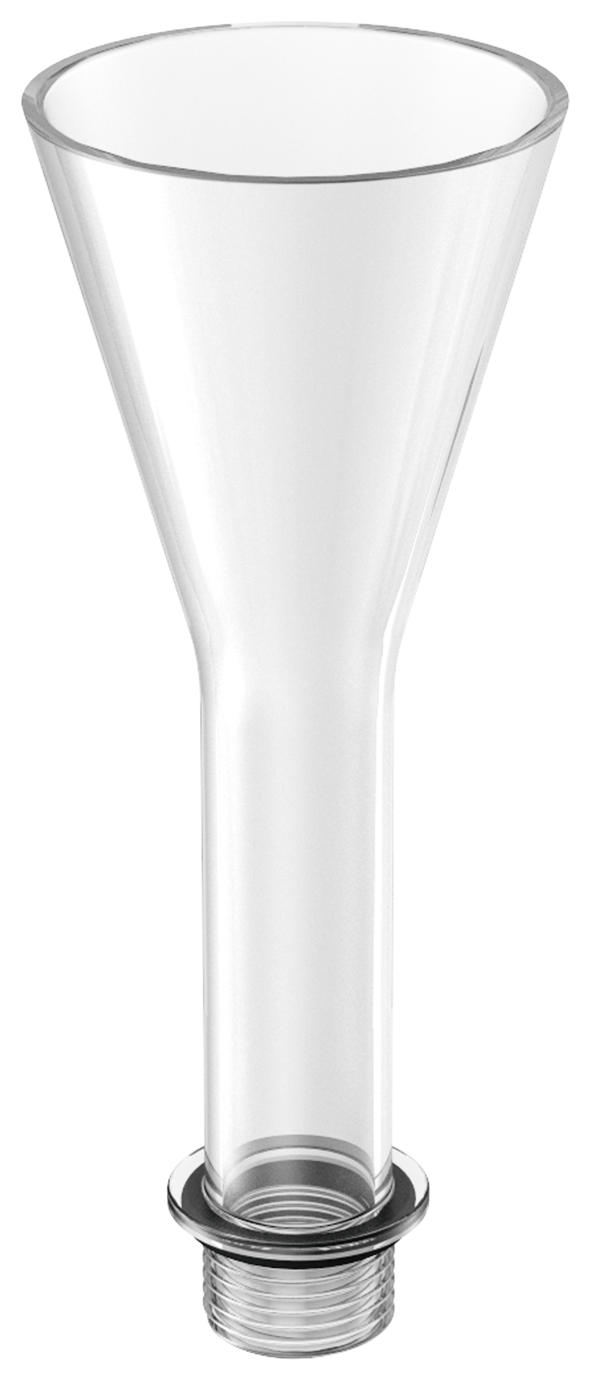

Test hopper
Suitable for
- ACO backflow stops
Description
- For servicing all dimensions
- Weight: 0.1 kg
- Rabattgruppe: 7

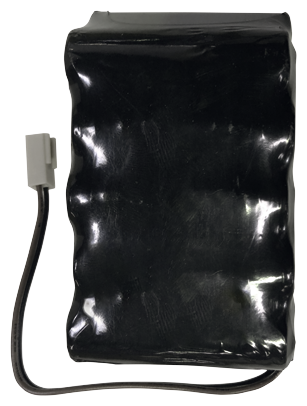

Battery pack replacement

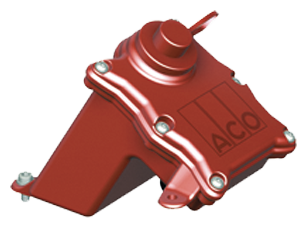

Drive motor
Suitable for
- Quatrix-K Type 3F V2.0 (before year of construction 2016)
Description
- With 5 m supply cable
- Replacement drive motor ACO faecal backflow machine
- Quatrix‑K type 3F
- DN 100/DN 125/DN 150
Drive motor
Suitable for
- Quatrix-K Type 3F V3.0 (from year of construction 2016)
Description
- With 5 m supply cable
- Replacement drive motor ACO faecal backflow machine
- Quatrix‑K type 3F
- DN 100/DN 125/DN 150
Extension set
Suitable for
- Faecal matter backflow automatic stop Quatrix-K type 3F
Description
- For cable conduits DN 70
- Angles and bends ≤ 45°
- Pressure hose (10 m)
- Supply cable and plug (5 m)
- For empty cable ducts DN 70
- Weight: 1 kg
- Rabattgruppe: 7
Extension set
Suitable for
- Faecal matter backflow automatic stop Quatrix-K type 3F
Description
- For cable conduits DN 70
- Angles and bends ≤ 45°
- Sensor cable (m)
- Motor cable (m)
- Weight: 2.1 kg
- Rabattgruppe: 7
Extension set
Suitable for
- Faecal matter backflow automatic stop Quatrix-K type 3F
Description
- For cable conduits DN 70
- Angles and bends ≤ 45°
- Sensor cable (m)
- Motor cable (25 m)
- Weight: 3.2 kg
- Rabattgruppe: 7
Signal horn
Suitable for
- Signalling unit
- Signalling unit with GSM module
Description
- Operating voltage: 12V DC
- Power consumption: 30 mA
- 62 x 62 x 85 mm (LxWxD)
- Degree of protection: IP66
- Noise level: 95 dB(A)
- Weight: 0.2 kg
- Rabattgruppe: 12
