Building Drainage

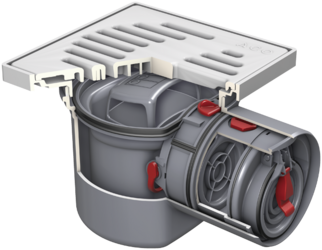

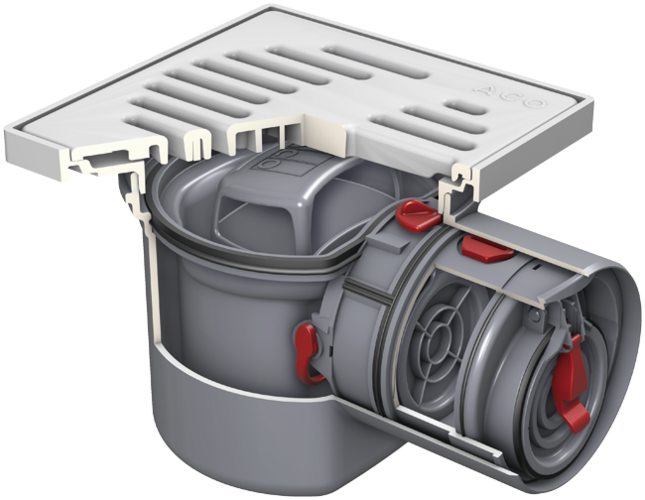

Cellar gully Junior with backflow stop

Product benefits

  • The compact product dimensions make it ideal for renovation
  • Rotatable top section for optimum adjustment to the tiling pattern
  • Optionally with extension for flexible deeper installation
  • Toolless installation and dismantling of the sludge bucket and backflow unit

Product information

  • Floor gully made of plastic
  • Tested to EN 1253-1
  • Product class A
  • With removable sludge bucket and odour seal
    • Water seal height 60 mm
  • With rotatable top section
    • Plastic

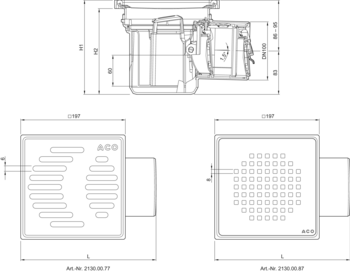

    • Frame size 197 x 197 mm
  • Gratings
    • Slot grating made of plastic
    • Quadrato design grating made of stainless steel, material grade 304
  • Outlet socket
    • DN 100
    • Socket inclination: 1.5°
  • Discharge value: 1.4 l/s
  • With standardised backflow stop
    • Type 5 tested in accordance with  EN 13564
    • With 2 backflow flaps
    • With 1 manually lockable emergency valve

Stainless steel grating

Suitable for
  • Junior cellar gulley
Description
  • 188 x 188 mm

Top frame

Suitable for
  • Junior cellar gulley
Description
  • 197 x 197 mm

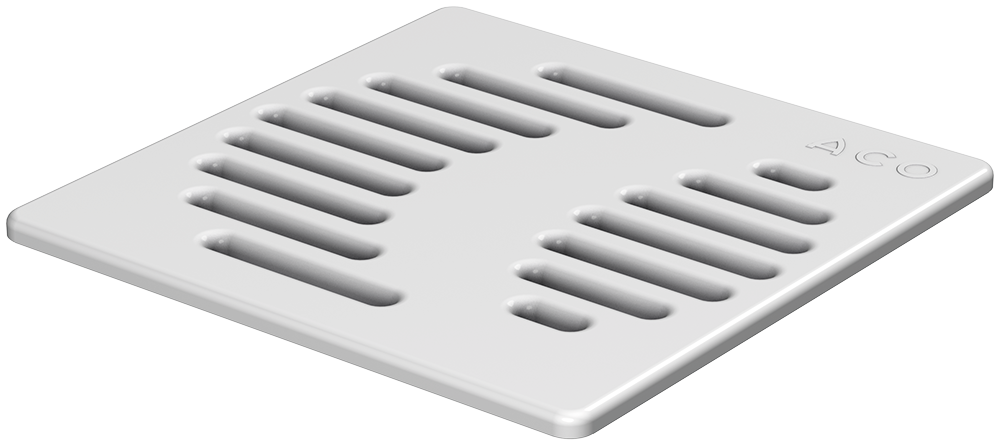

Plastic grating

Suitable for
  • Junior cellar gulley
Description
  • 197 x 197 mm

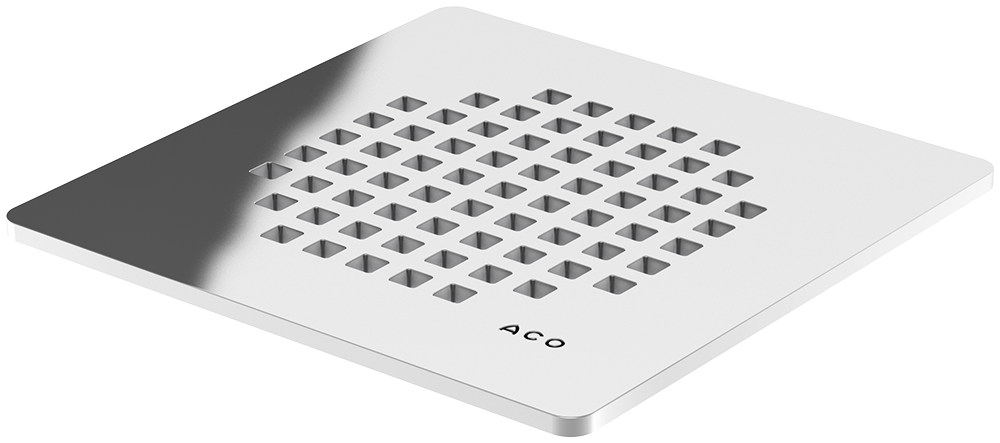

Stainless steel grating

Suitable for
  • Junior cellar gulley
Description
  • 188 x 188 mm

Inlet socket DN 50

Suitable for
  • Junior basement gully with backflow stop
  • Basement gully DN 100
  • Sinkamat-K (free-standing)
  • LipuSmart-P
  • Muli-Mini
Description
  • Made of plastic
  • For lateral input option
  • For fitting on-site
  • Weight: 0.1 kg

Extension made of plastic

Suitable for
  • Basement gully DN 100
  • Junior basement gully with backflow stop
Description
  • For deeper installation
  • Structure height: 130 mm
  • Weight: 0.2 kg

Backflow unit

Suitable for
  • Junior basement gully with backflow stop
Description
  • Maintenance kit
  • With DN 100 backflow safety valve
  • Weight: 0.2 kg

Test hopper

Suitable for
  • ACO backflow stops Triplex
Description
  • For servicing all dimensions
  • Weight: 0.1 kg
