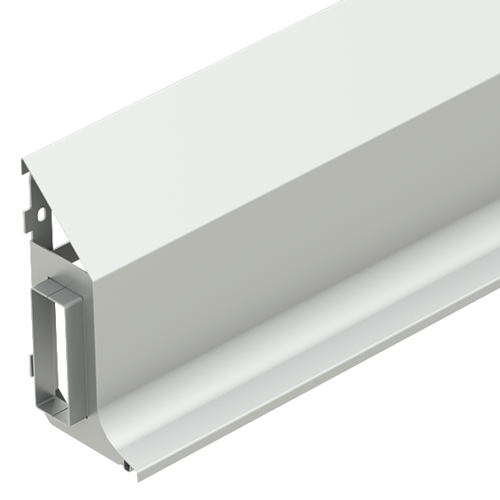

ACO kerb S/S – single side

Made from stainless steel (AISI 316)
Recommended for new or refurbishment projects including tiled floor or resin floor finish
Welded on site to ensure integrity of the whole system
300 mm height for rooms with traffic up to 5 tons (recommended by EHEDG)

	Length	Width	Height	Material	Item number	Downloads	Remember
	[mm]	[mm]	[mm]	Material	Item number	Downloads	Remember
Straight	500	155	300	1.4301	446613
	500	155	300	1.4404	446225
	1000	155	300	1.4301	446614
	1000	155	300	1.4404	446226
	1500	155	300	1.4301	446615
	1500	155	300	1.4404	446227
	2000	155	300	1.4301	446616
	2000	155	300	1.4404	446228
	2500	155	300	1.4301	446617
	2500	155	300	1.4404	446229
	3000	155	300	1.4301	446618
	3000	155	300	1.4404	446230
Inside corner	182	182	300	1.4301	446619
Inside corner	182	182	300	1.4404	446231
Outside corner	155	155	300	1.4301	446620
Outside corner	155	155	300	1.4404	446232
End part	155	155	300	1.4301	446621
End part	155	155	300	1.4404	446243
End cap – left	1.5	80	180		446295
End cap – right	19	85	177		446244
Covering plate	250	155	300	1.4301	446623
Covering plate	250	155	300	1.4404	446294
