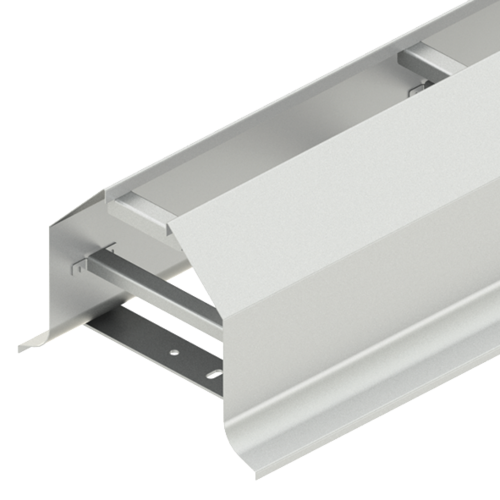

ACO kerb S/S - double side

Product benefits

  • Protects walls from impacts caused by machinery
  • Eliminates water ingress into the wall and leakage into other processing areas
  • Curved design prevents accumulation of soils and allows easy cleaning
  • Rounded corners for easy cleaning
  • Suitable for any processing area

Product information

  • Made from stainless steel (AISI 316)
  • Recommended for new projects including tiled floor or resin floor finish
  • Welded on site to ensure integrity of the whole system
  • 300 mm height for rooms with traffic up to 5 tons (recommended by EHEDG)
LengthWidthHeightMaterialItem

number
DownloadsRemember
[mm][mm][mm]
Straight5004143001.4301446625
1.4404446233
10004143001.4301446626
1.4404446234
15004143001.4301446627
1.4404446235
20004143001.4301446628
1.4404446236
25004143001.4301446629
1.4404446237
30004143001.4301446630
1.4404446238
L-part4414413001.4301446631
1.4404446239
T-part4684413001.4301446632
1.4404446240
End part4141553001.4301446633
1.4404446241
X-part4144143001.4301446634
1.4404446318
