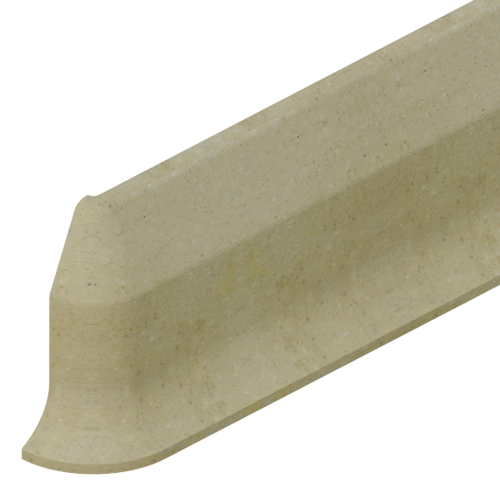

ACO kerb PB – plain

ACO Kerb Pb Plain 279256

Product benefits

Protects walls from impacts caused by machinery
Eliminates water ingress into the wall and leakage into other processing areas
Curved design prevents accumulation of soils and allows easy cleaning
Rounded corners for easy cleaning
Suitable for any processing area

Product information

BIM models are available in ACO Building Drainage BIM Revit libraries

Made from polymer concrete composite
Recommended for new or refurbishment projects including resin floor finish
Covered in smooth gelcoat after installation
200 mm height for rooms with traffic up to 1 ton (recommended by EHEDG)
300 mm height for rooms with traffic up to 5 tons (recommended by EHEDG)

		Length	Width	Height	Item number	Downloads	Remember
		[mm]	[mm]	[mm]	Item number	Downloads	Remember
	Straight	1000	37	100	446827
			65	200	446124
			85	300	446158
	Inside corner	52	52	100	446828
		85	85	200	446125
		105	105	300	446161
	Outside corner – left	537	37	100	446829
		565	65	200	446126
		585	85	300	446159
	Outside corner – right	537	37	100	446830
		565	65	200	446127
		585	85	300	446160

NM2920 - PU sealant Merbenit SF50

Suitable for

ACO kerb PB standard
ACO kerb PB plain

Description

Polyurethan sealant Merbenit SF50

Item no.
NM2920

NM9380 - Solvent Ethyl methyl ketone pure 1000 ml

Suitable for

ACO kerb PB plain

Description

Solvent Ethyl methyl ketone pure 1000 ml

Item no.
NM9380
