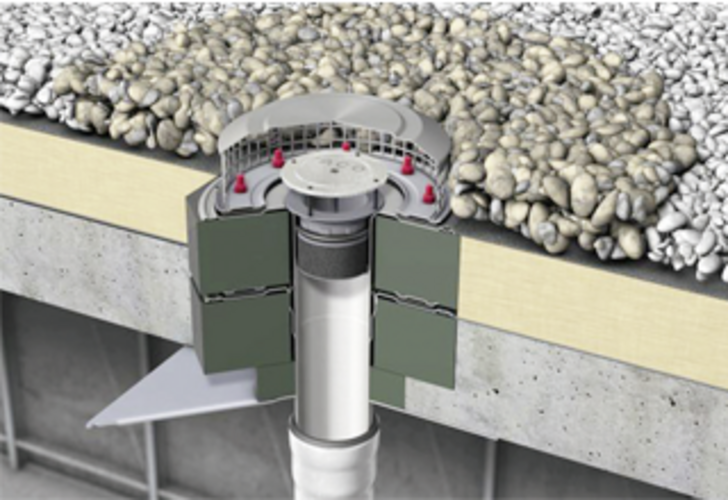

Complete gullies two-part/socket inclination: 90° | siphonic drainage
Product benefits
- Unit checked for leaks
- Delivery of total gully in a single package
Product information
- Flat roof gullies tested to DIN EN 1253
- Made from stainless steel, material grade 304
- Building material class A1
- With fire protection insert
- Sealing membrane selectable
- Insulation
- Uninsulated
- Insulated with Styrofoam with/out heating
- Insulated with stone wool with/out heating
- With clamping flange for sealing with 1 sealing membrane
- Usable for 2 sealing planes
- Incl. vapour seal
- Socket inclination: 90°
Fire protection
Infobox
Note: Delivery time for works pre-assembled Sarnafil membrane TG 66‑15 and Sikaplan 15 G depends on the version: from inventory, or up to max. 14 days
- Sarnafil TG 66‑15 (For loose placement, for greened, gravelled roofs with foot and vehicle traffic, for roofs with additional loads)
- Sikaplan 15 G (For loose placement with mechanical fixing, up to a roof gradient of maximum 20°, for roofs without additional loads)
Note: Delivery time for works pre-assembled membranes from other manufacturers: on request.
Note: For gullies without membranes the additional seals must be ordered separately.
Plastic gravel catchment | Stainless steel gravel catchment | |||
Nominal width | Socket inclination | Design | Article No. 0174.46.66 | Article No. 0174.46.63 0174.46.64 |
DN | l/s | l/s | ||
70 | 1.5� | 1-piece | 2.6 | 2.7 |
70 | 1.5� | 2-piece | 2.8 | 3.0 |
70 | 90� | 1-piece | 2.5 | 2.6 |
70 | 90� | 2-piece | 2.7 | 2.8 |
100 | 1.5� | 1-piece | 5.0 | 5.9 |
100 | 1.5� | 2-piece | 4.7 | 5.3 |
100 | 90� | 1-piece | 4.7 | 5.6 |
100 | 90� | 2-piece | 5.1 | 5.7 |
100, with fire protection insert | 90� | 1-piece | 5,0 | 5,0 |
100, with fire protection insert | 90� | 2-piece | 5,0 | 5,0 |
125 | 1.5� | 1-piece | 8.3 | 9.9 |
125 | 1.5� | 2-piece | 8.7 | 8.9 |
125 | 90� | 1-piece | 8.5 | 8.4 |
125 | 90� | 2-piece | 8.5 | 8.4 |

Top sections and gratings for roof gullys

Top sections and gratings for roof gullys made of stainless steel

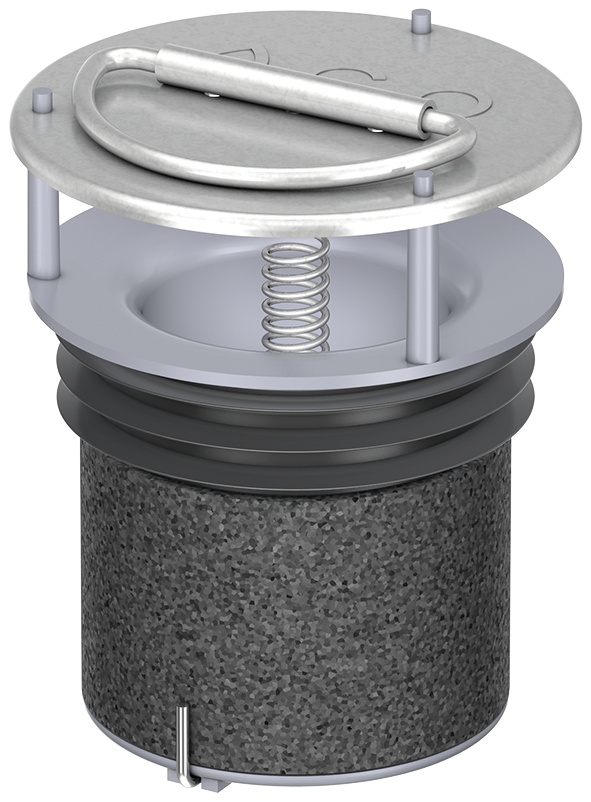

Fire protection insert
Heat shield
Insulation casing

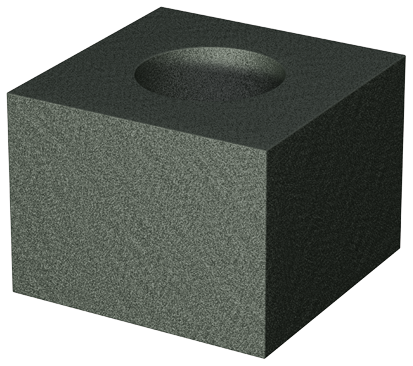

Insulating body
Control shaft

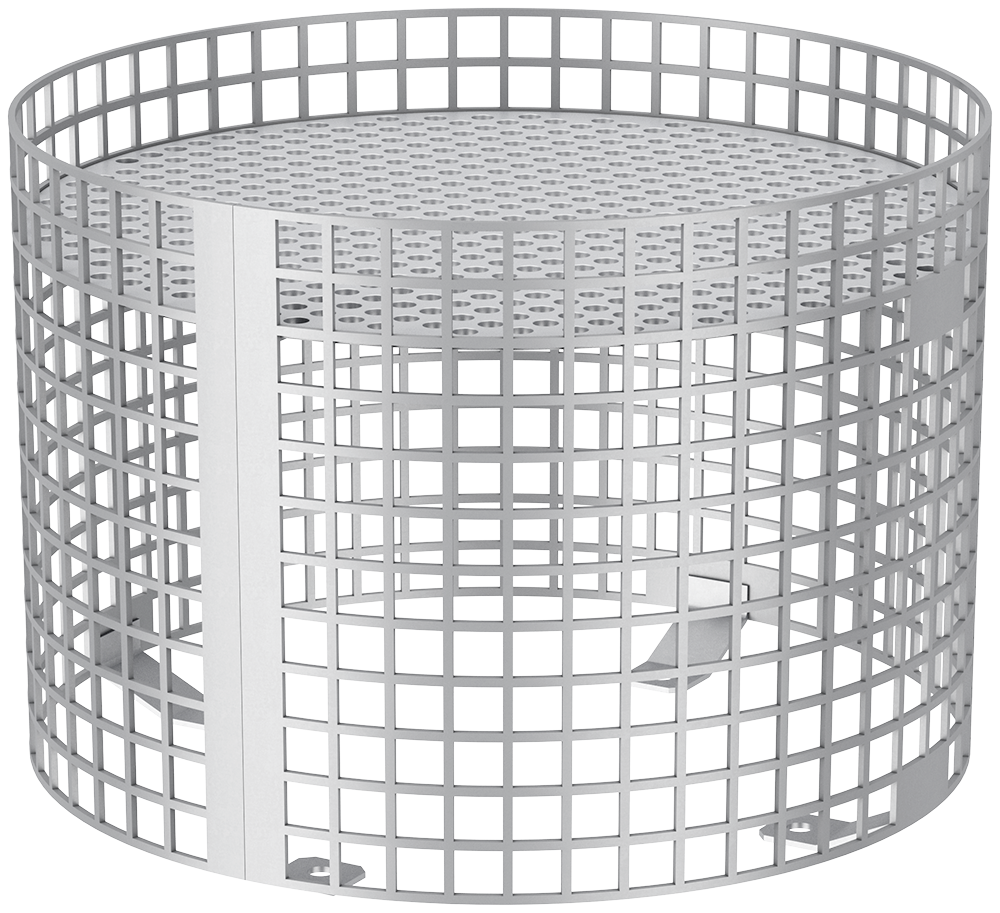

Gravel trap for inverted roof
Flange seal
Flange seal
Flange seal
Flange seal

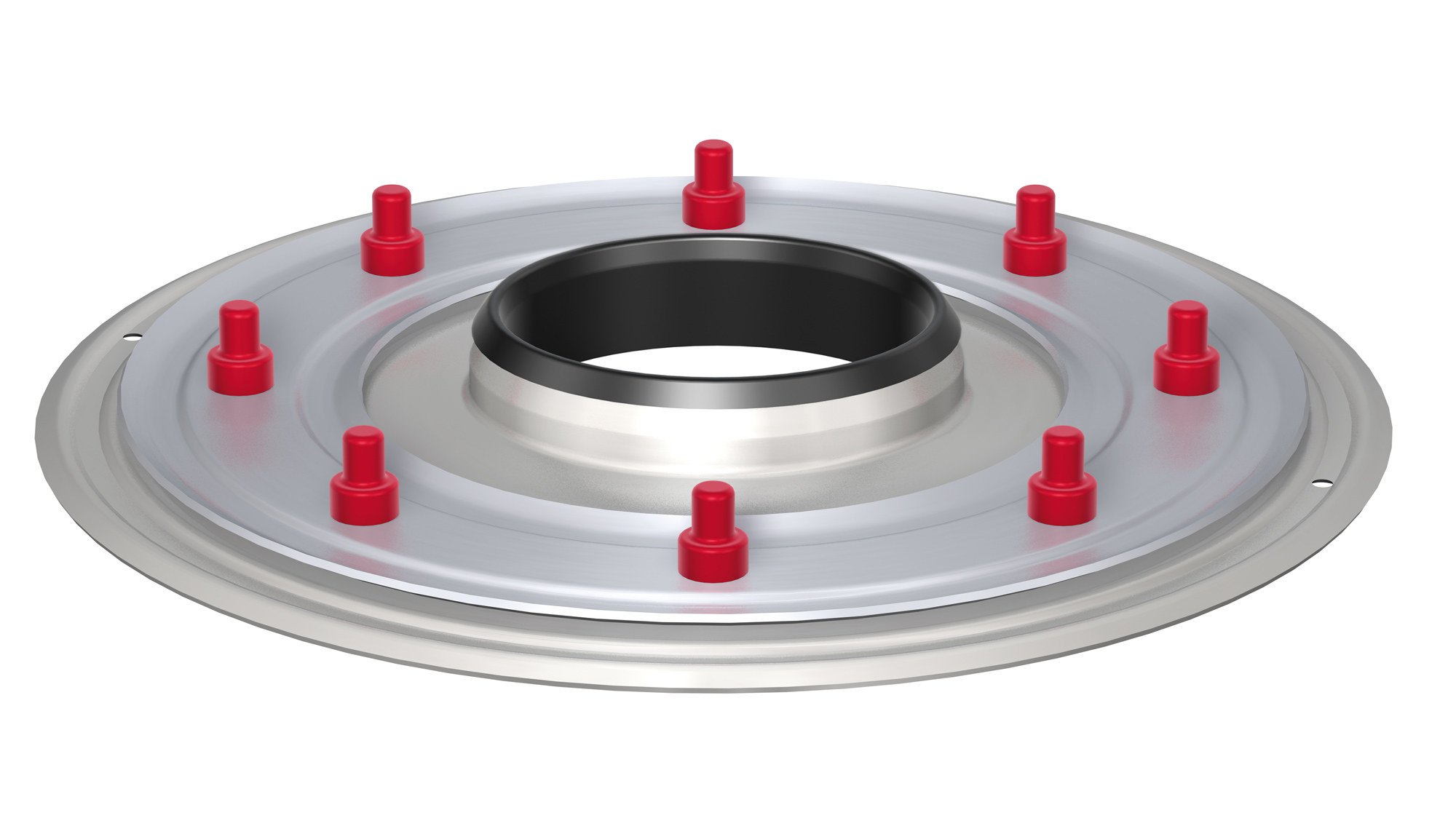

Sliding flange

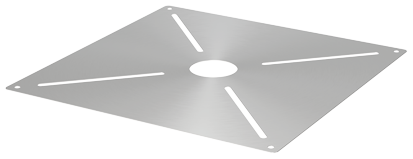

Holder sheet for trapezoidal panel roof
Gravel trap cover
Gravel trap cover
Insulation
Insulation
Insulation casing
Insulating body
Fire protection insert
Heat shield
Gravel trap
Flat roof heating
Suitable for
- Flat roof gullies Jet/Spin series made of stainless steel
- DN 40 – DN 125
- Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
- Turboflow emergency gully made of stainless steel
- DN 50 – DN 70
- Flat roof gullies Passavant Spin made of cast iron
- DN 70 – DN 100
Description
- Mains connection: 220 – 240 V
- Degree of protection: IP 67
- Connection line
- H05RN-F2x1,0
- Length: 1 m
- Height: 95 mm
- Nominal power: 25 W
- Weight: 0.3 kg
- Rabattgruppe: 1
Flat roof heating with thermostat
Suitable for
- Flat roof gullies Jet/Spin series made of stainless steel
- DN 40 – DN 125
- Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
- Turboflow emergency gully made of stainless steel
- DN 50 – DN 70
- Flat roof gullies Passavant Spin made of cast iron
- DN 70 – DN 100
Description
- Mains connection: 220 – 240 V
- Degree of protection: IP 67
- Connection line
- H05RN-F2x1,0
- Length: 1 m
- Height: 95 mm
- Nominal power: 25 W
- Weight: 0.3 kg
- Rabattgruppe: 1
Flat roof heating
Suitable for
- Flat roof gullies Jet/Spin series made of stainless steel
- Turboflow emergency gully made of stainless steel
- Flat roof gullies Passavant Spin made of cast iron
- DN 125 – DN 150
Description
- Mains connection: 220 – 240 V
- Degree of protection: IP 67
- Connection line
- H05RN-F2x1,0
- Length: 1 m
- Height: 95 mm
- Nominal power: 40 W
- Weight: 0.4 kg
- Rabattgruppe: 1
Flat roof heating with thermostat
Suitable for
- Flat roof gullies Jet/Spin series made of stainless steel
- Turboflow emergency gully made of stainless steel
- Flat roof gullies Passavant Spin made of cast iron
- DN 125 – DN 150
Description
- Mains connection: 220 – 240 V
- Degree of protection: IP 67
- Connection line
- H05RN-F2x1,0
- Length: 1 m
- Height: 95 mm
- Nominal power: 40 W
- Weight: 0.4 kg
- Rabattgruppe: 1
Damming ring for emergency overflow
